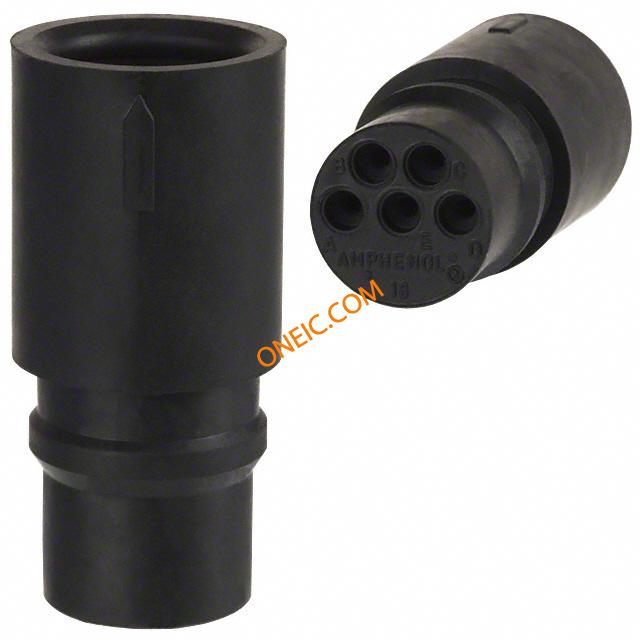

044 104 10005 02
| 制造商 | |
| 描述 | Standard Circular Connector 5P RECEPTACLE CONN RECEPT 5POS MINI PUSH-ON connector;plastic circ;str recept housing;for 5 crimp pin cont;sealed;ip65/ip67 CIRCULAR CONNECTOR RECEPTACLE 5POS CABLE connector, plastic circ, str recept housing, for 5 crimp pin cont, sealed, ip65/ip67 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 500 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 8 A |
机械参数
| 颜色 | Black | 重量 | 0.009 |
| 包装方式 | Bulk | 导线线规 | 18-14 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 接触镀层 | Silver |
| 紧固类型 | Push-Pull | 安装样式 | Free Hanging |
| 封装形式 | Plastic | 插入角度 | :- |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic Rubber |
| 主要材料 | Sealed | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 触点数 | 5 |
| 介电材料 | Santoprene | 绝缘直径 | 0.08 to 013 " |
| 位数 | 5 | 外壳材料及表面处理 | Plastic |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Cable Socket |
| 连接器性别 | :Receptacle | 系列 | 44 |
| 制造商全称 | 44 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
文档与媒体
相关型号
044 100 1414P 1000 101
amphenol
Contact PIN Crimp ST Cable Mount Bag Standard Circular Contacts BAG OF 1000 PIN CNTS Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14-18 AWG TIN connector comp;044-series;poke-home crimp pin contact;for 14;16;18awg wire connector comp, 044-series, poke-home crimp pin contact, for 14, 16, 18awg wire
356-258
amphenol canada, corp.
ASSEMBLY TOOLS, INSERTION AND REMOVAL TOOLS Hand Tools 44SERIES INSERT TOOL *NCNR Insertion-tool TOOL INSERTION 44 SERIES INSERTION TOOL, FOR SERIES 44 tool, insertion tool for contacts for the 044-series

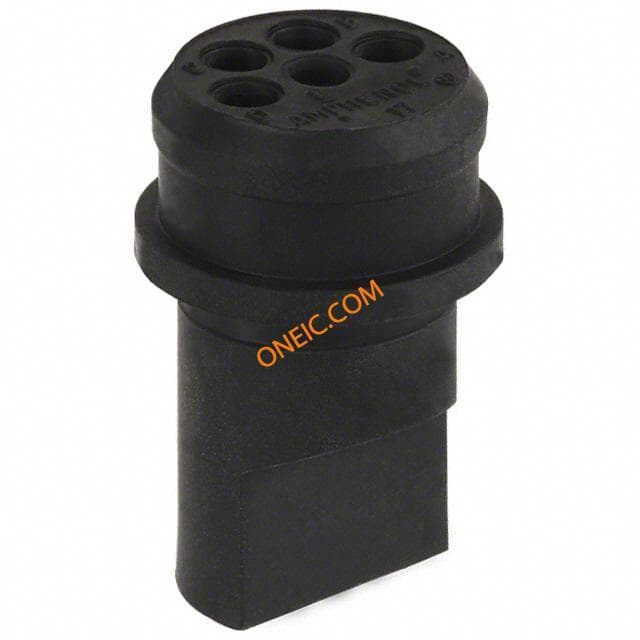

044 103 10005
