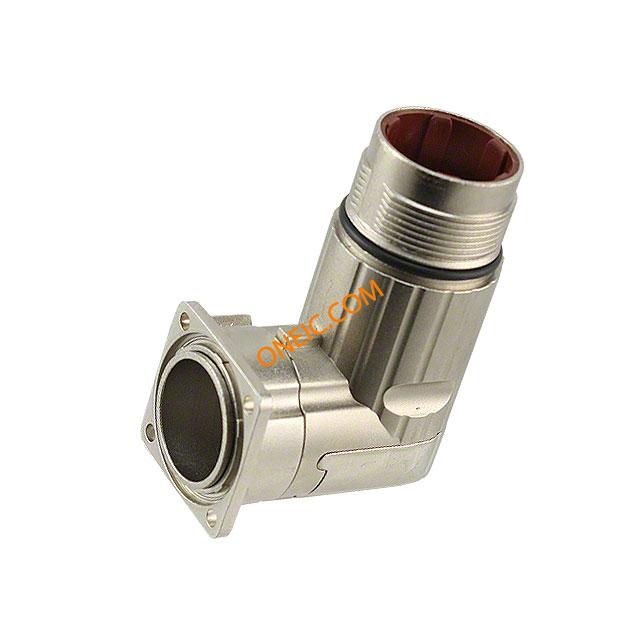

点击放大查看
MB1RJN0900
| 制造商 | |
| 描述 | Conn Circular PIN 9 POS RA Panel Mount 9 Terminal 1 Port Circular Metric Connectors M23 B-Series Recpt 9 Pos R/A Rotatable CONN RCPT 9POS MALE R/A 9 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male Contacts QRATE Amphenol 9路 面板安装 直角 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 其他名称 | 889-1097 | 零件号别名 | 14R7033 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 630 V ac/dc | 最大额定电流 | 75 A |
机械参数
| 高度 | 43.5 | 直径 | 25.2 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 触点尺寸 | 1.0mm, 2.0mm | 触头类型 | 9Signal |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Cable | 触头材料 | Brass |
| 总长度 | 57 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 9 |
| 位数 | 9 | 外壳材料及表面处理 | Zinc Die Cast |
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | RCP | 系列 | M23 |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | +130°C | ||
