AT04-3P-EC01
| 制造商 | |
| 描述 | Conn Power RCP 3 POS ST Cable Mount 3 Terminal 1 Port CONN RCPT 3POS 14-20AWG SIZE 16 Automotive Connectors AT Series Receptacle 3 Way End Cap Conn Housing RCP 3 POS Crimp ST Cable Mount |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | 889-1025 |
| 产品类别 | Automotive Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 13 A | ||
机械参数
| 颜色 | Gray | 深度 | 44.7 mm |
| 高度 | 24.43 mm | 包装方式 | Bulk |
| 导线线规 | 14-20 AWG | 触头类型 | Male Pin |
| 外壳颜色 | Gray | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 紧固类型 | Latch Holder |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | Thermoplastic | 触点数 | 3 POS |
| 接触件端接 | Crimp | 位数 | 3 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Power |
| 连接器性别 | RCP | 系列 | AT |
| 产品特性 | Cap (Cover) | 端口数 | 1 Port |
环境参数
| 工作温度 | -55C to 125C | 结工作温度 | 125C |
文档与媒体
相关型号
AT04-3P
amphenol-sine systems
Conn Power RCP 3 POS ST Cable Mount 3 Terminal 1 Port Conn Housing RCP 3 POS Crimp ST Cable Mount CONN RCPT 3POS 14-20AWG SIZE 16 AT 3 Pin Receptacle Automotive Connectors AT Series Receptacle 3 Way RECEPTACLE, AT, 3 WAY, PIN 3 PIN RECEPTACLE Connector: wire-wire; AT; plug; male; PIN:3; Locking: lock Crimp housing Poles 3 AT, AT04-3P, Amphenol Amphenol 3路 电缆安装 母 电源连接器 03P AT-SERIES RECEPTACLE GRAY

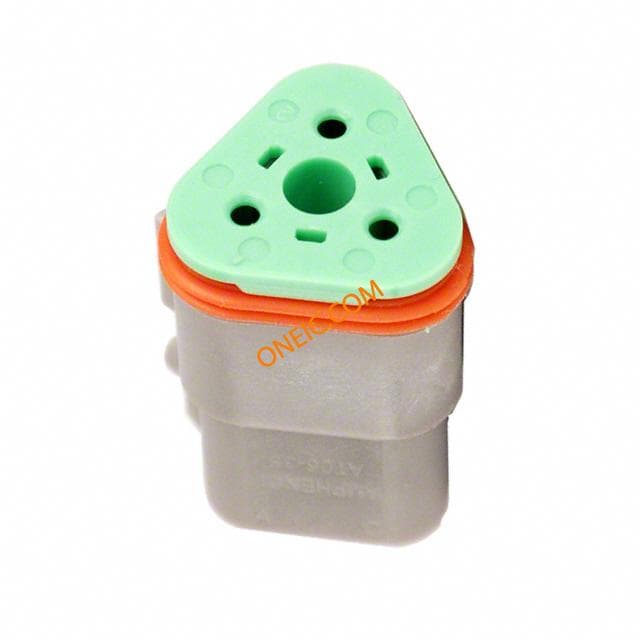

AT06-3S
amphenol-sine systems
Conn Power PL 3 POS ST Cable Mount 3 Terminal 1 Port Conn Housing PL 3 POS Crimp ST Cable Mount CONN PLUG 3POS 14-20AWG SIZE 16 AT 3 Pin Plug Automotive Connectors Plug 3 Way PLUG, AT, 3 WAY, SKT 3 PIN PLUG Connector: wire-wire; AT; plug; female; PIN:3; Locking: lock Crimp housing Poles 3 AT, AT06-3S, Amphenol Amphenol 3路 电缆安装 公 电源连接器 03P AT-SERIES PIN PLUG GRAY
AT06-3S-EC01
amphenol-sine systems
Conn Power PL 3 POS ST Cable Mount 3 Terminal 1 Port Conn Housing PL 3 POS Crimp ST Cable Mount CONN PLUG 3POS 14-20AWG SIZE 16 Automotive Connectors Plug 3 Way End Cap
AT60-14-0122
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONN PIN 14-16AWG SIZE 16 NICKEL Male Contact,Stamped & Formed 14-16Awg Automotive Connectors Male Cont Stamped/ Formed 14-16 AWG Nic CONTACT, STAMP & FORMED, PIN, 14AWG MALE CONTACT, STAMPED & FORMED 14-16AWG, NICKEL PLATE Crimp pin 13 A Male 16...14 AWG, AT60-14-0122, Amphenol Amphenol AT 系列
AT60-16-0122
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONN PIN 16-18AWG SIZE 16 NICKEL Male Contact,Stamped&Formed 16-18Awg Automotive Connectors Male Cont Stamped/ Formed 16-18 AWG Nic CONTACT, PIN, 18-16 AWG, CRIMP CONTACT, PIN, 18-16AWG, CRIMP, FULL REEL MALE CONTACT, STAMPED & FORMED 16-18AWG, NICKEL PLATE Contact; Size:16; male; 0.75÷1.5mm2; AHD, AT; nickel plated; tape Crimp pin 13 A Male 18...16 AWG, AT60-16-0122, Amphenol Amphenol AT 系列 ATM MALE CRIMP AWG 16 NICKEL

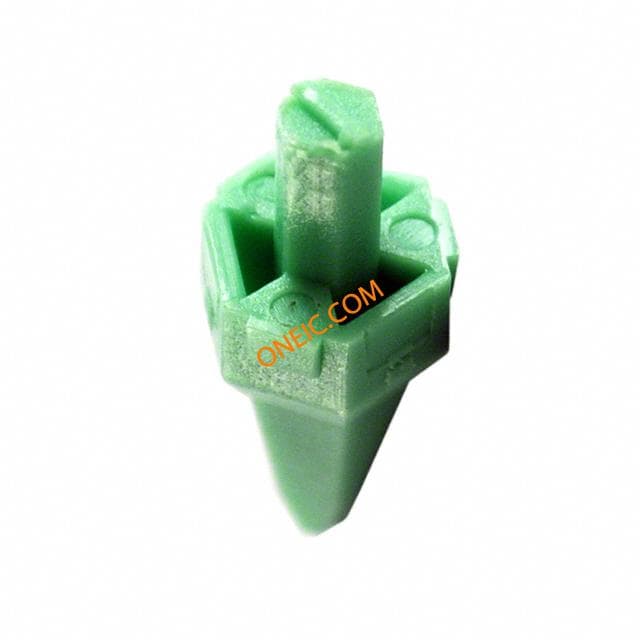

AW3P
amphenol-sine systems
Connector Accessories 3 Pin Receptacle Wedge Green Connector Accessories 3 POS Receptacle Wedge Lock Green CONN RCPT WEDGE 3POS GREEN AT 3 Pin Receptacle Wedge Automotive Connectors 3 Pin Receptacle Plug WEDGELOCK, FOR AT RECEPTACLES, 3WAY 3 PIN RECEPTACLE WEDGE Secondary lock; AT; male; PIN:3 Wedge for cable plug, AW3P, Amphenol Amphenol 楔 03P AT RECEPTACLE WEDGE GREEN
65-54756
amphenol-sine systems
MALE CONTACT, DIAGNOSTIC GRADE SIZE 16, WIRE GAGE 20 AWG MALE CONTACT, DIAGNOSTIC GRADE CONN PIN 20AWG SIZE 16 Automotive Connectors Diagnostic Size 16 Male Cont. 20 AWG MALE CONTACT, DIAGNOSTIC GRADE SIZE 16, WIRE GAGE 20 AWG
AT60-16-0622
amphenol-sine systems
Contact PIN Crimp ST Cable Mount Reel CONN MALE 18-20AWG NICKEL PLATE Automotive Connectors Male Cont Stamped/ Formed 18-20 AWG Nic MALE CONTACT, STAMPED & FORMED 18-20AWG, NICKEL PLATE Contact; Size:16; male; 0.5÷0.75mm2; AHD, AT; nickel plated; tape Amphenol AT 系列 插入式触点, 使用于AT 系列连接器
