AW3P
| 制造商 | |
| 描述 | Connector Accessories 3 Pin Receptacle Wedge Green Connector Accessories 3 POS Receptacle Wedge Lock Green CONN RCPT WEDGE 3POS GREEN AT 3 Pin Receptacle Wedge Automotive Connectors 3 Pin Receptacle Plug WEDGELOCK, FOR AT RECEPTACLES, 3WAY 3 PIN RECEPTACLE WEDGE Secondary lock; AT; male; PIN:3 Wedge for cable plug, AW3P, Amphenol Amphenol 楔 03P AT RECEPTACLE WEDGE GREEN |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Wedges | 其他名称 | 889-1038 |
| 零件号别名 | 14R5616 427-0027 | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
| 海关税号 | 39269097 | ||
机械参数
| 颜色 | Green | 宽度 | 20.8mm |
| 重量 | 0.002 | 材料（通用） | :Silicone Elastomer |
| 触头类型 | Receptacle | 安装类型 | Straight |
| 连接器类型 | :Dust Cover | 接触镀层 | :- |
| 连接器用途 | secondary lock | 材料表面处理 | :- |
| 触头材料 | :- | 壳体材料 | Thermoplastic |
| 总长度 | 20.8 mm | 包装数量 | 700 |
| 主要材料 | Industrial | 第一触头极性 | :- |
| 触点数 | :3 | 位数 | 3 |
| 外壳尺寸-插件 | :- | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 700 | 类型 | Wedge |
| 连接器性别 | Female | 系列 | AT |
| 制造商全称 | AT Series | 附件类型 | Wedge for Pins |
| 适配器系列 | AT | 单元数量 | 1 |
| 射频系列/标准 | AW | 适用产品/相关产品 | AT Series™ |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
相关型号

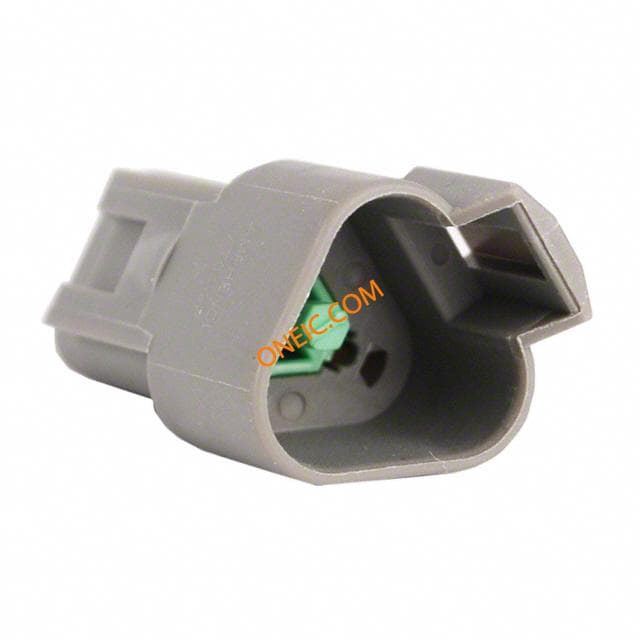

AT04-3P
amphenol-sine systems
Conn Power RCP 3 POS ST Cable Mount 3 Terminal 1 Port Conn Housing RCP 3 POS Crimp ST Cable Mount CONN RCPT 3POS 14-20AWG SIZE 16 AT 3 Pin Receptacle Automotive Connectors AT Series Receptacle 3 Way RECEPTACLE, AT, 3 WAY, PIN 3 PIN RECEPTACLE Connector: wire-wire; AT; plug; male; PIN:3; Locking: lock Crimp housing Poles 3 AT, AT04-3P, Amphenol Amphenol 3路 电缆安装 母 电源连接器 03P AT-SERIES RECEPTACLE GRAY
¥3.0437
详情

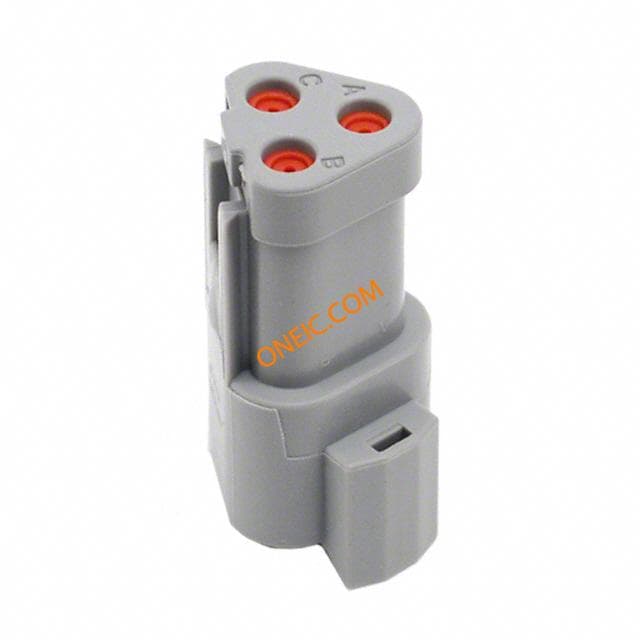

AT04-3P-EC01
