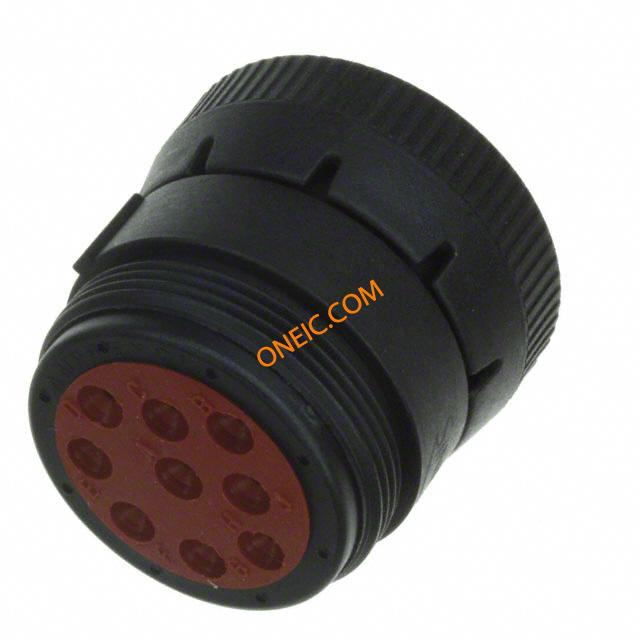

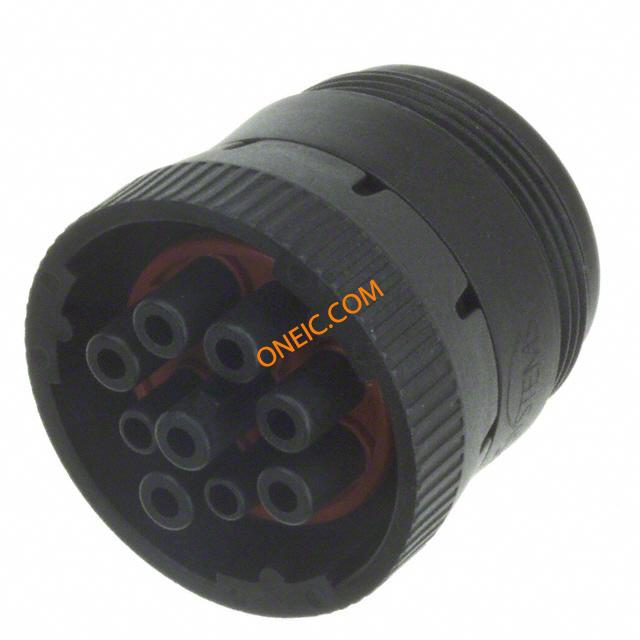

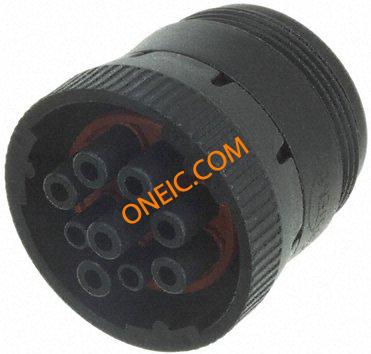

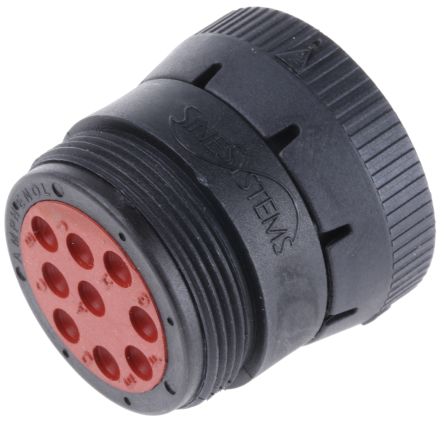

AHD16-9-1939S
| 制造商 | |
| 描述 | Conn Circular PL 9 POS ST 9 Terminal 1 Port Conn Circular PIN 9 POS ST Cable Mount 9 Terminal 1 Port CONN PLUG 9POS W/COUPLING 9 Pole Male Straight MIL Spec Circular Connector with Male Contacts Automotive Connectors HD Series 9 Pin Plug CIRCULAR CONNECTOR, PLUG, 9 WAY, CABLE HD SERIES LOCKING RING 9 PIN PLUG Connector: wire-wire; AHD; plug; female; PIN:9; Locking: bayonet Amphenol AHD 系列 9路 直向 连接器 插头 , 公触点 |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 14R5575 427-0052 |
| 产品类别 | Automotive Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366990 | 抗辐射加固 | No |
电气参数
| 击穿电压 | :1500V | 连接器类型 - 电压输入 | for size 16 terminals |
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 重量 | 0.4 | 直径 | 40.29 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 触点形式 | 9Signal |
| 触点尺寸 | 16 | 触头类型 | 9Signal |
| 安装类型 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Free Hanging |
| 插入角度 | :- | 锁定特性 | bayonet |
| 本体材料 | :Thermoplastic | 总长度 | 41.5 mm |
| 包装数量 | 100 | 主要材料 | Sealed |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | PIN | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 100 | 备注 | Contacts Not Provided |
| 类型 | Circular | 连接器性别 | PL |
| 系列 | AHD | 制造商全称 | AHD Series |
| 适配器系列 | AHD | 单元数量 | 1 |
环境参数
| 密封等级 | IP 67 | 工作温度 | +125°C |
文档与媒体
相关型号
A114017
amphenol-sine systems
BLANK SEAL 16AWG SEAL BLANK 16AWG Blank Seal 16Awg Automotive Connectors Blank Seal 16 AWG Connector Accessories Sealing Plug White Size 16 SEAL PIN, BLANK PIN Sealing pin; AHD, AT, ATP; male-female; Size:12,16 Sealing plug, A114017, Amphenol Amphenol AT/AHD 系列 Seal Plug, 使用于汽车连接器 01P BLANK SEAL PLUG AWG 16
AT60-220-1231
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONN PIN 12-14AWG GOLD Male Contact,Machined 12-14Awg,Au Plate Automotive Connectors Male Cont Machined Formed 12-14 AWG CONTACT, MACHINED, PIN, 12AWG CONTACT, PIN, 14-12 AWG, CRIMP MALE CONTACT, MACHINED 12-14AWG, GOLD PLATE Amphenol AT 系列
AT62-14-0122
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 14-16AWG SZ16 NICKEL Female Contact, Stamped&Formed 14-16Awg Automotive Connectors Female Cont Stamped/ Formed 14-16 AWG Nic CONTACT, STAMP & FORMED, SKT, 14AWG FEMALE CONTACT, STAMPED & FORMED 14-16AWG, NICKEL PLATE Crimp socket 13 A Female 16...14 AWG, AT62-14-0122, Amphenol Amphenol AT 系列
AT62-210-1231
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 12-14AWG GOLD Female Cont,Machined 12-14Awg,Gold Plate Automotive Connectors Female 12-14 AWG Machined Contact CONTACT, MACHINED, SKT, 12AWG CONTACT, SOCKET, 14-12 AWG, CRIMP FEMALE CONTACT, MACHINED 12-14AWG, GOLDPLATE Amphenol AT 系列
65-54757
amphenol-sine systems
FEMALE CONTACT,DIAGNOSTICS, SIZE 16, WIRE GAGE 20 AWG CONN SOCKET 20AWG SIZE 16 Automotive Connectors Diagnostic Size 16 Female Cont. 20 AWG FEMALE CONTACT, DIAGNOSTICS, SIZE 16, WIRE GAGE 20 AWG
AT62-16-0622
amphenol-sine systems
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 18-20AWG NICKEL PLTE Automotive Connectors Female Cont Stamped/ Formed 18-20 AWG Nic FEMALE CONTACT, STAMPED & FORMED 18-20AWG, NICKEL PLATE Amphenol AT 系列 塞孔接点, 使用于AT 系列连接器
AT62-16-0122
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 16-18AWG SZ16 NICKEL Female Contact,Stamped&Formed 16-18Awg Automotive Connectors Female Cont Stamped/ Formed 16-18 AWG Nic CONTACT, SOCKET, 18-16AWG, CRIMP, FULL REEL FEMALE CONTACT, STAMPED & FORMED 16-18AWG, NICKEL PLATE Contact; Size:16; female; 0.75÷1.5mm2; AHD, AT; nickel plated; tape Crimp socket 13 A Female 18...16 AWG, AT62-16-0122, Amphenol Amphenol AT 系列 触点, 使用于AT 系列连接器 ATM FEMALE CRIMP AWG 16 NICKEL
AHD10-9-1939P
amphenol-sine systems

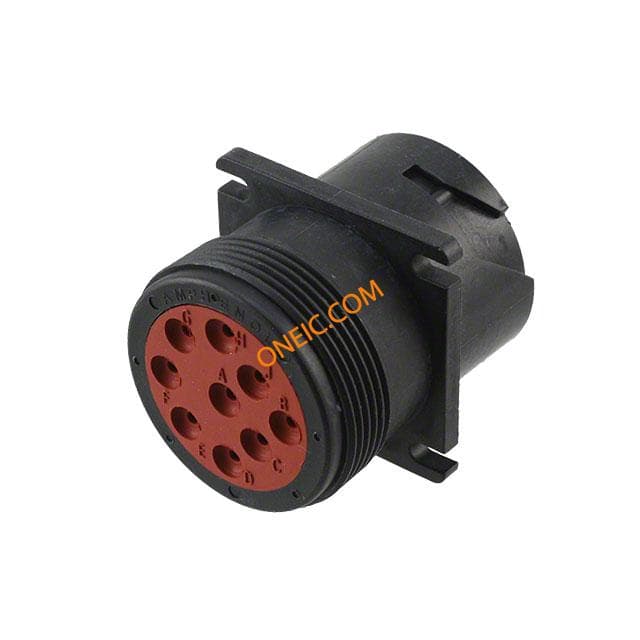

Conn Circular 9 POS ST Flange Mount 9 Terminal 1 Port CONN RCPT 9PIN W/FLANGE Automotive Connectors HD Series 9 Pin Recept. AHD SERIES 9 PIN RECEPTACLE; MILITARY STYLE Connector: wire-wire; AHD; socket; male; PIN:9; Locking: bayonet Amphenol AHD 系列 9路 法兰安装 直向 圆形连接器 插头 , 母触点, 卡口式接合
