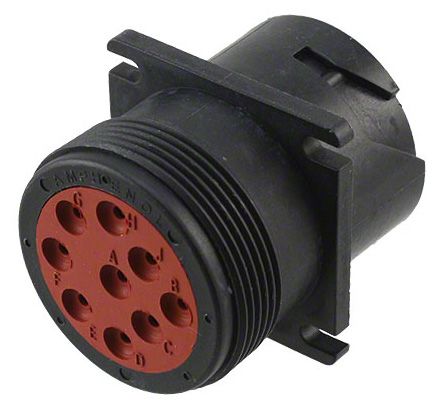

AHD10-9-1939P
| 制造商 | |
| 描述 | Conn Circular 9 POS ST Flange Mount 9 Terminal 1 Port CONN RCPT 9PIN W/FLANGE Automotive Connectors HD Series 9 Pin Recept. AHD SERIES 9 PIN RECEPTACLE; MILITARY STYLE Connector: wire-wire; AHD; socket; male; PIN:9; Locking: bayonet Amphenol AHD 系列 9路 法兰安装 直向 圆形连接器 插头 , 母触点, 卡口式接合 |
| 分类 |
商业参数
| 产品 | Receptacles | 零件号别名 | 427-0064 |
| 产品类别 | Automotive Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 1500 V 交流 | 连接器阻抗 | 标准 |
| 最大额定电流 | 13A | 绝缘电阻 | 1000 MOhms |
| 连接器类型 - 电压输入 | for size 16 terminals | ||
机械参数
| 重量 | 0.03 kg | 外形尺寸(长x宽) | 16 |
| 包装方式 | Bulk | 方向 | Keyed |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Flange Mount | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | 金 | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 锁定特性 | bayonet |
| 触头材料 | 铜合金 | 壳体材料 | 热塑性 |
| 包装数量 | 100 | 主要材料 | Sealed |
| 端接排数 | 插入式 | 连接器 - 电缆 | socket |
| 触点数 | 9 | 位数 | 9 |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| SPG | 100 | 备注 | Contacts Not Provided |
| 类型 | Circular | 连接器性别 | RCP |
| 系列 | AHD | 极性 | 9P |
| 制造商全称 | AHD Series | 适配器系列 | AHD |
| 单元数量 | 1 | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP67 |
| 工作温度 | - 55 C to + 125 C | ||
