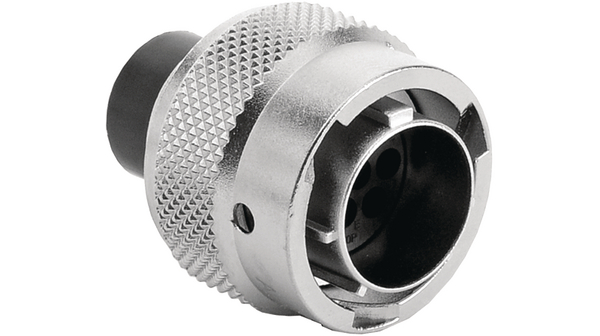

RT0612-10PNH

制造商	Amphenol Corporation
描述	CONN HSG PLUG 10POS CABLE PINS CONN HSG PLUG 10POS INLINE PINS Cable plug RT360 Poles=10 Male Housing size12, RT0612-10PNH, Amphenol
分类	连接器解决方案圆形连接器军用圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压	150	极数	10
最大额定电流	5 A	保护电压（VP）（2416）	IP 67

机械参数

包装方式	Bulk	外壳尺寸	12
方向	N (Normal)	触点尺寸	20
触头类型	Crimp	安装类型	Free Hanging (In-Line)
连接器类型	Plug for Male Contacts	紧固类型	Bayonet Lock
连接器样式	straight	锁定特性	Bayonet locking
壳体材料	Zinc Alloy	触点数	Size 20
位数	10	外壳尺寸-插件	12-10
第一连接器极性	Male	外壳材料及表面处理	Zinc Die Cast, Nickel Plated

产品信息

备注

Contacts Not Provided

系列

RT360

环境参数

防护等级

IP67/68 - Dust Tight, Waterproof

工作温度

-40...+105 °C

相关型号

SP20W1F

Amphenol Sine Systems Corp

CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, S&F, SIZE 20, 20-22AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold plated; crimped; tape RT PIN 3K GOLD WIRE RANGE 20-22

¥1.2600

详情

SP28W1F

Amphenol Sine Systems Corp

CONTACT PIN CRIMP 28-30AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 30-28 CONTACT, PIN, S&F, SIZE 20, 28-30AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold plated; crimped; tape Crimp pin, SP28W1F, Amphenol

¥1.1179

详情

暂无图片

MP20W23F

Amphenol Sine Systems Corp

CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Mach Pin Gld Flash Wire Range 20-22 Contact; Pin; Machined; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold flash; crimped; 7.5A

¥3.3477

详情

MP28W23F

Amphenol Sine Systems Corp

CONTACT PIN CRIMP 28-30AWG GOLD Contact; Pin; Machined; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold flash; crimped; 7.5A

¥4.2840

详情
