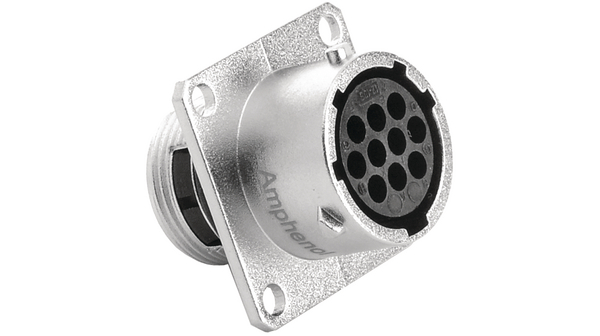

RT0012-10SNH
| 制造商 | |
| 描述 | CONN HSG RCPT 10POS WALL MT SKTS Square flange receptacle RT360 Poles=10 Female Housing size12, RT0012-10SNH, Amphenol |
商业参数
| 标准包装数量 | 50 | ||
电气参数
| 额定电压 | 150 | 极数 | 10 |
| 最大额定电流 | 5 A | 保护电压（VP）（2416） | IP 67 |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 12 |
| 方向 | N (Normal) | 触点尺寸 | 20 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 连接器样式 | with flange | 锁定特性 | Bayonet locking |
| 壳体材料 | Zinc Alloy | 触点数 | Size 20 |
| 位数 | 10 | 外壳尺寸-插件 | 12-10 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated |
产品信息
| 备注 | Contacts Not Provided | 系列 | RT360 |
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40...+105 °C |
相关型号
CA-4020-59
Amphenol Sine Systems Corp
CONN PLUG SEALING 20AWG Standard Circular Connector Sealing Plug 20AWG SEALING PLUG, RT360, 20AWG Connector accessories: sealing pin; Series: RT360; Size:20 Sealing plug, CA-4020-59, Amphenol RT SEALING PLUG 20
RT012DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 12 Standard Circular Connector Recptle Dust Cap Shell Size 19 DUST CAP, RT360 RECEPT, SIZE 12 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 12, RT012DCG, Amphenol
SS20W1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 20-22AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 20-22 CONTACT, SKT, S&F, SIZE 20, 20-22AWG Contact; Socket; Stamped; 3K Reel, GoldFlash; 22-20 AWG; RT360 Series Contact; Size:20; female; 20÷22AWG; RT360; gold plated; crimped RT SOCKET GOLD WIRE RANGE 24-26
SS28W1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 28-30AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 30-28 CONTACT, SKT, S&F, SIZE 20, 28-30AWG Contact; Socket; Stamped; 3K Reel, GoldFlash; 30-28 AWG; RT360 Series Contact; Size:20; female; 28÷30AWG; RT360; gold plated; crimped Crimp socket, SS28W1F, Amphenol
MS20W23F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 20-22AWG GOLD Standard Circular Contacts Mach Skt Gld Flash Wire Range 20-22 Contact; Socket; Machined; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; female; 20÷22AWG; RT360; gold flash; crimped
MS28W23F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 28-30AWG GOLD Contact; Socket; Machined; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; female; 28÷30AWG; RT360; gold flash; crimped
MS20W23G30
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 20-22AWG GOLD Contact; Size:20; female; 20÷22AWG; RT360; gold plated; crimped
MS28W23G30
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 28-30AWG GOLD Contact; Size:20; female; 28÷30AWG; RT360; gold plated; crimped

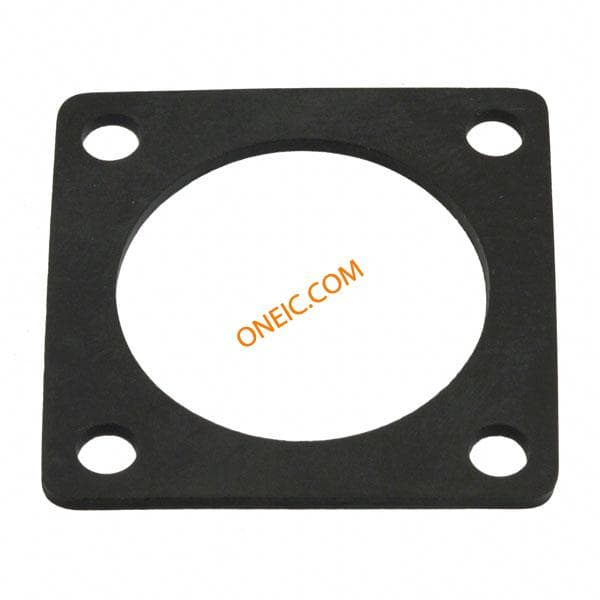

RTFD12B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 12 Standard Circular Connector Panel Gasket Shell Size 12 GASKET, PANEL, RT360, SIZE 12 Connector accessories: socket gasket; Series: RT360 Panel gasket 12, RTFD12B, Amphenol RT PANEL GASKET SHELL 12

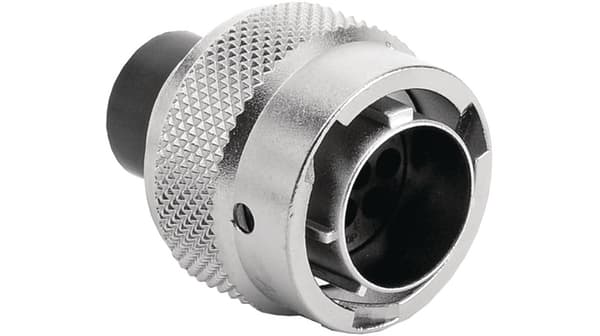

RT0612-10PNH
Amphenol Sine Systems Corp
CONN HSG PLUG 10POS CABLE PINS CONN HSG PLUG 10POS INLINE PINS Cable plug RT360 Poles=10 Male Housing size12, RT0612-10PNH, Amphenol
