点击放大查看
31-221
| 制造商 | Amphenol Corporation |
| 描述 | RF Connectors BULKHEAD JACK 50 ohm SOLDER UG-1094/U CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BULKHEAD JACK 50 ohm SOLDER UG-1094/U Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Silver RF/COAXIAL BNC BHD JACK STR 50 OHM SOLDER |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-221 16R0559 39F075 713-1073 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85369010 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 重量 | 0.255983 oz | 包装方式 | Bulk |
| 电缆类型 | :RG58, RG59, RG179, RG316 | 本体表面处理 | Nickel |
| 方向 | Straight | 重量（g） | 8.40000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Silver | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | Beryllium Copper |
| 端接样式 | Solder Cup | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Silver | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Straight | ||
产品信息
| 连接器性别 | Jack | 产品特性 | Extended Insulation |
| 极性 | Standard | 射频系列/标准 | BNC |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号

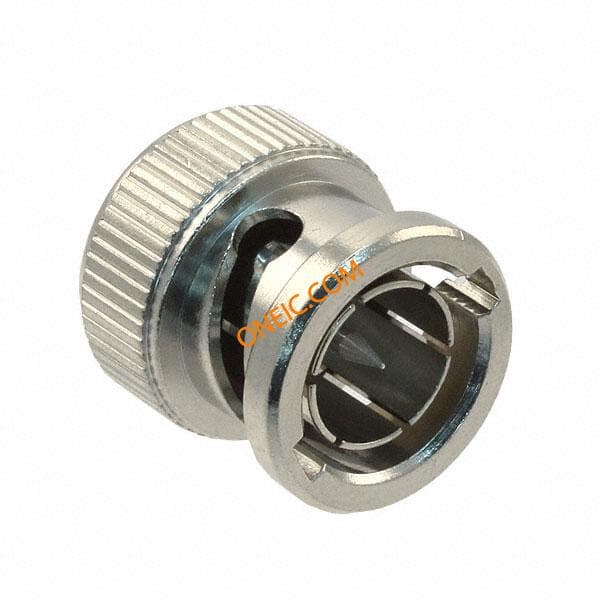

000-5275
amphenol
Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms

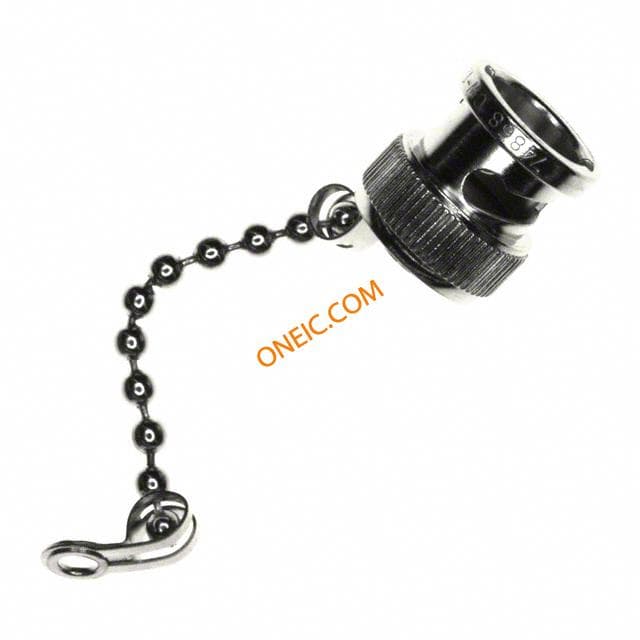

031-6
amphenol
Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms

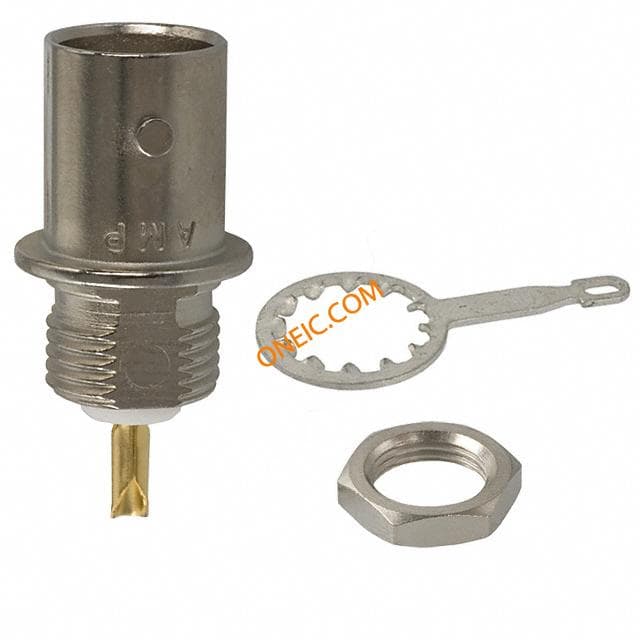

5227716-3
te connectivity / amp
Conn BNC RCP 50Ohm Solder Cup ST Panel Mount Gold BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC Jack Bulkhead solder 50 ohm RF Connectors / Coaxial Connectors BULKHEAD SOLDER JACK Conn BNC RCP 50Ohm Solder Cup ST Panel Mount Gold Product Highlights:ConnectorConnector Type = BNCJackTerminate To WireCoaxial Cable Termination Type = SolderSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC JACK, STR, 50 OHM, SOLDER BNCJackBulkheadsolder50ohm TE Connectivity 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC SOLDER RECEPT JACK
31-759
amphenol
Connector Accessories Shield Grounding Lug Nickel Finish BNC SHIELD GROUNDING LUG connector accessory;rf coaxial;bnc grounding lug;for front mount blkhd recept RF Connector Accessories GROUNDING LUG Connector Accessories Grounding Lug

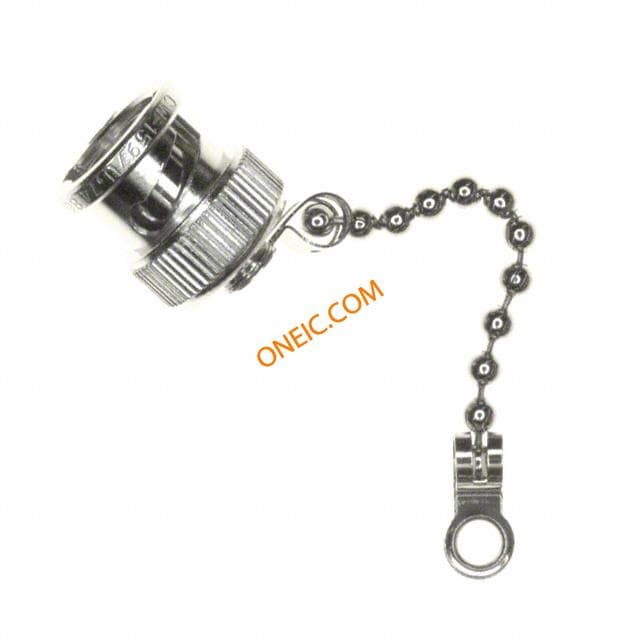

031-17
