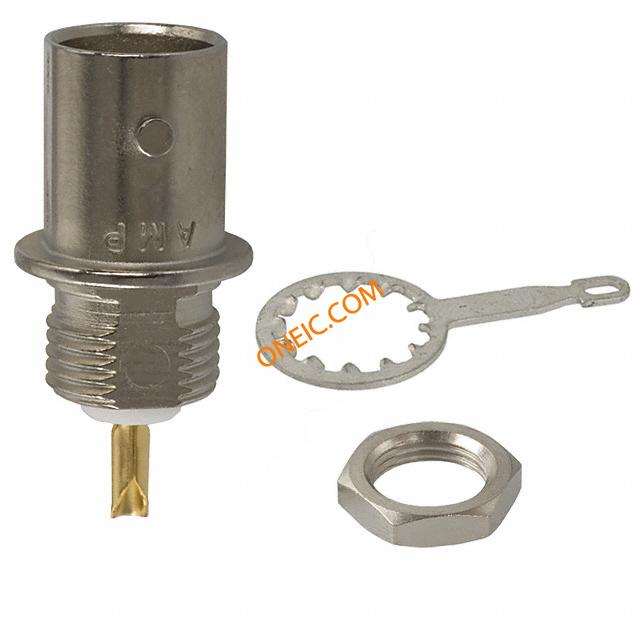

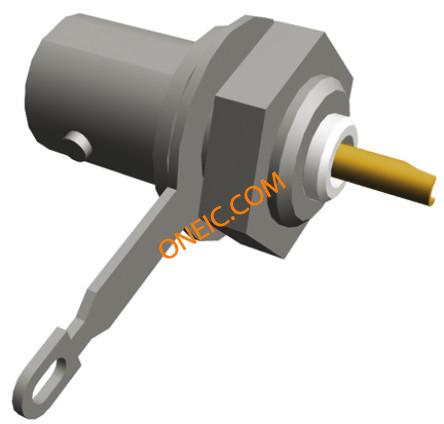

5227716-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 50Ohm Solder Cup ST Panel Mount Gold BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC Jack Bulkhead solder 50 ohm RF Connectors / Coaxial Connectors BULKHEAD SOLDER JACK Conn BNC RCP 50Ohm Solder Cup ST Panel Mount Gold Product Highlights:ConnectorConnector Type = BNCJackTerminate To WireCoaxial Cable Termination Type = SolderSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC JACK, STR, 50 OHM, SOLDER BNCJackBulkheadsolder50ohm TE Connectivity 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC SOLDER RECEPT JACK |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 灯泡类型 | Yes | 阻抗 | 50 Ohm |
| 隔离电源 | No | 额定电压 | 500 V |
| 最大频率 | 4GHz | 连接器阻抗 | With |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 密封型 | No | 重量 | 0.018 |
| 包装方式 | Bulk | 电缆类型 | :- |
| 绝缘类型 | 227223-1 | 本体表面处理 | Nickel |
| 方向 | Straight | 端接方式 | Solder Cup |
| 安装类型 | Panel Mount | 线径 | 1.50 [0.059] |
| 连接器类型 | BNC | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 面板厚度 | 1.17 â 3.18 [0.046 â 0.125] |
| 触头材料 | Phosphor Bronze | 面板安装类型 | Bulkhead |
| 连接器 - 电缆 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | TEFLON |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Straight | 表面贴装焊盘尺寸 | No |
产品信息
| 备注 | Includes solder terminal and jam nut | 类型 | BNC |
| 等级 | Commercial | 连接器性别 | RCP |
| 产品特性 | Extended Insulation | 硬件配件 | No |
| 极性 | No | 制造商全称 | AMP |
| 产品子类型 | Connector | 连接类型 | Wire |
| 端口数 | 1 | 射频系列/标准 | 5227716 |
环境参数
| 工作温度 | - 65 C to + 165 C | ||
