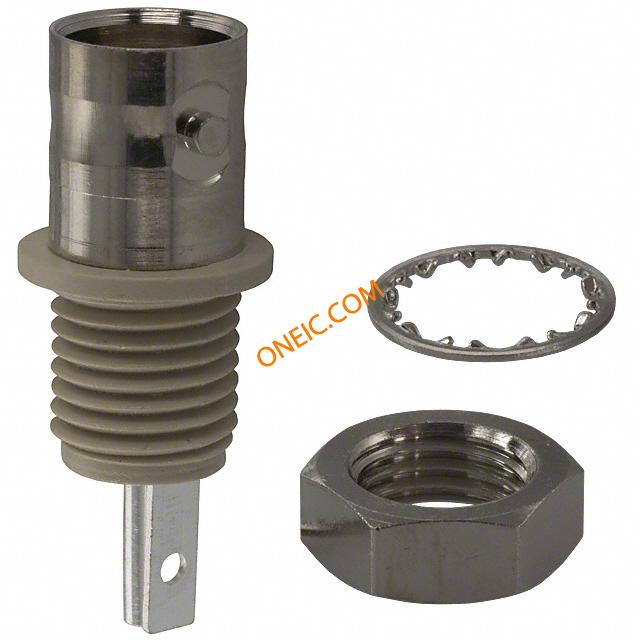

点击放大查看

31-10

制造商	Amphenol Corporation
描述	RF Connectors BULKHEAD JACK 50 ohm SOLDER CUP ISOLATED CONN BNC JACK STR 50 OHM SOLDER connector;rf coaxial;bnc blkhd recept;front mount;ground tab;isolated;50 ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold JACK BNC, BULKHEAD
分类	连接器解决方案同轴连接器(RF)射频同轴连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Compliant

海关税号

85369010

电气参数

阻抗	50 Ohm	额定电压	500V
最大频率	4GHz

机械参数

重量	0.001	包装方式	Bulk
电缆类型	:RG58, RG59, RG179, RG316	本体表面处理	Nickel
端接方式	:Solder	重量（g）	8.40000
基体材料	Brass	外壳颜色	Silver
安装类型	Panel Mount, Bulkhead - Rear Side Nut	连接器类型	Jack, Female Socket
接触镀层	:Silver	紧固类型	Bayonet Lock
连接器样式	BNC	触头材料	:Phosphor Bronze
屏蔽层端接方式	Solder	接触件端接	Solder Cup
介电材料	Polyamide (PA), Nylon	中心触点镀层工艺	Silver
中心触点材料	Phosphor Bronze	供应商器件封装	:Straight Jack
第一连接器安装类型	:Panel

产品信息

系列

:BNC

产品特性

Isolated

环境参数

工作温度

-55°C ~ 85°C

文档与媒体

PDF 文档

31-10 Drawing

PDF 文档

BNC Bulkhead Receptacles
