点击放大查看

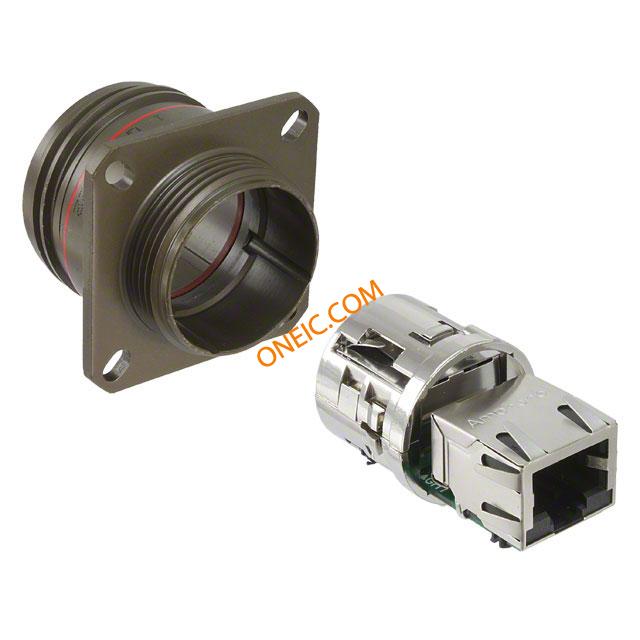

RJFTV21G
| 制造商 | |
| 描述 | Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Female RJ45 Olive Sq Flange Rcpt Olive connector, metal circular, panel mount recept, rj45 ethernet, olive drab finish |
| 分类 |
商业参数
| 产品 | Industrial Ethernet Connectors | 零件号别名 | 02E8870 308-4705 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Not Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数
| 颜色 | Olive Drab | 深度 | 36.53 mm |
| 高度 | 36.53 mm | 重量 | 1.410958 oz |
| 屏蔽 | Unshielded | 重量（g） | 36.40000 |
| 安装类型 | Panel Mount | 安装样式 | Flange |
| 壳体材料 | Cadmium | 总长度 | 43.1 mm |
| 触点数 | 8 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
产品信息
| 类型 | RJ-45 | 等级 | Cat5e |
| 连接器性别 | RCP | 系列 | RJFTV |
| 产品特性 | Circular Bayonet Coupling | USOC 编码 | RJ45 |
| 制造商全称 | RJ Field TV Series | 类别编号 | Cat 5e |
| 端口数 | 1 | 射频系列/标准 | RJFTV |
| 输出配置 | Panel Mount, Square Flange | 性能类别 | Cat 5e |
| 应用细节 | For data acquisition and transmission in harsh environment, railways, radars | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | 加载位置数 | 8 |
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
RJFTVC7G
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Jam Nut Recept Cap Olive Drab DUST CAP, RECEPT, RJF TV, ALUMINIUM connector accessory, rj field tv, cap forjam nut receptacle(thread), green finish
RJFTVC6G
amphenol pcd
Connector Accessories Metallic Cap Plug Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Metallic Plug Cap Olive Drab connector accessory, rj field tv, cap forstraight plug(thread coupling), green

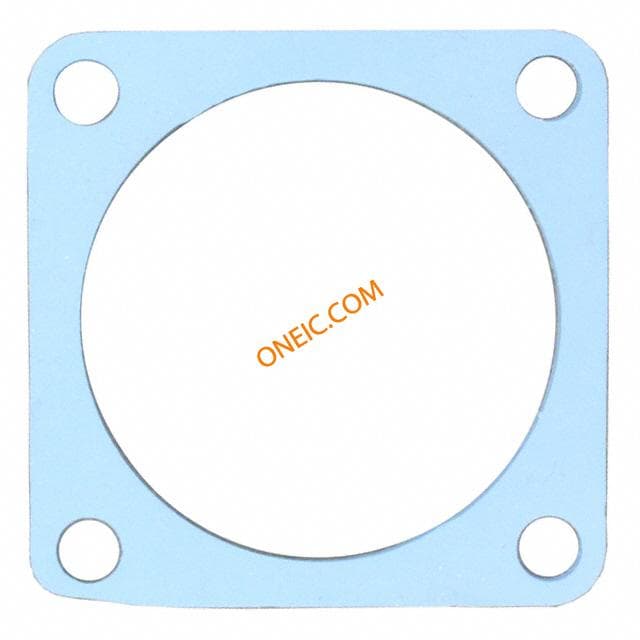

JE19
amphenol pcd
GASKET FOR RJFTV SERIES NIOBIUM OXIDE SMT CONN ACCY GASKET Modular Connectors / Ethernet Connectors RJ FIELD TV GASKET PM RECPT GASKET, PANEL ENGINEERING MATERIALS, GASKET connector accessory, rj field tv, panel gasket for square flange receptacle

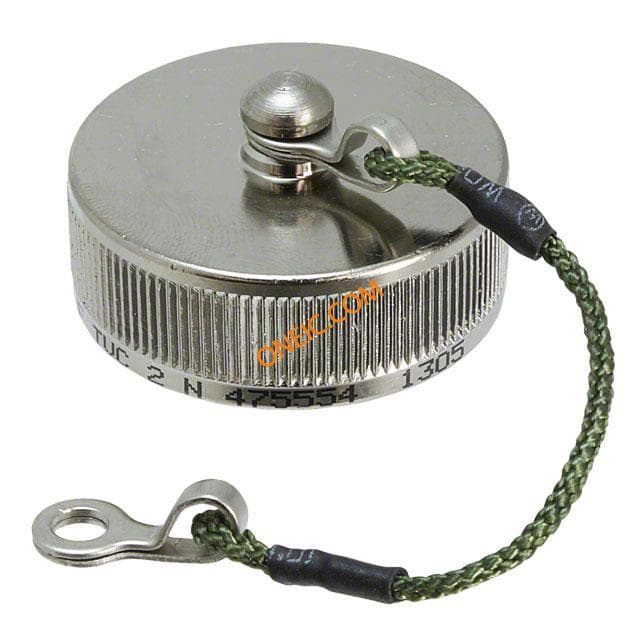

RJFTVC2N
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Nickel CONN ACCY CAP Cap for Square flange recept,nickel Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap Nickel CONNECTORS ACCESSORIES connector accessory, rj field tv, cap forsquare flange receptacle, nickel finish

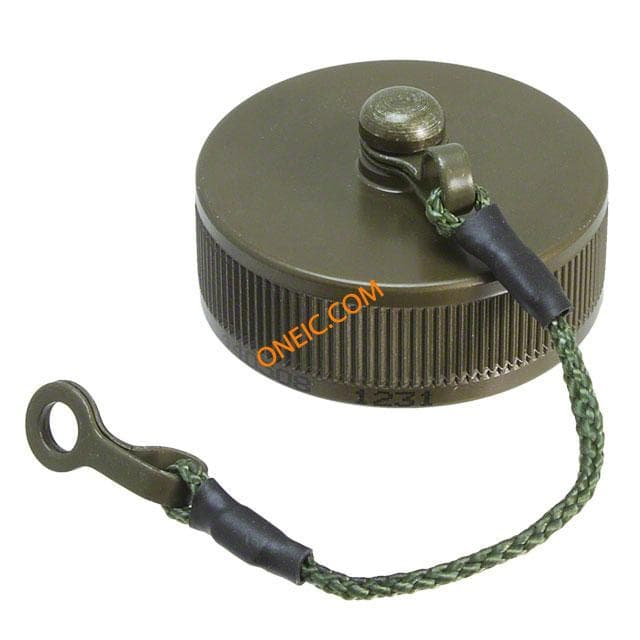

RJFTVC2G
