点击放大查看

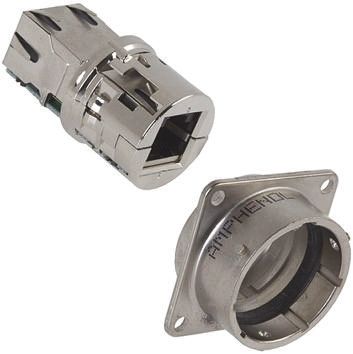

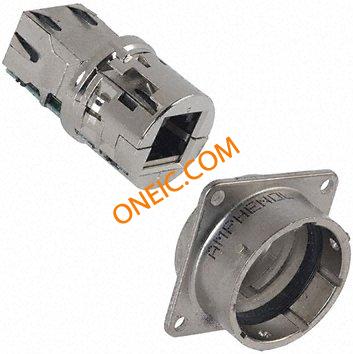

RJF21N
| 制造商 | Amphenol Corporation |
| 描述 | Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Square flange rcp,female RJ45 Nickel Modular Connectors / Ethernet Connectors Female RJ45 Nickel Sq Flange Receptacle RECEPT, PANEL, RJ45, RJF, NICKEL connector, metal circ, panel mount recept, 4-hole square flange, rj45, nickel finish Amphenol 直 母 RJ45 连接器 , 面板安装型 |
| 分类 |
商业参数
| 其他名称 | APC1027 | 零件号别名 | 308-0019 36K2896 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数
| 颜色 | Black | 深度 | 33.3mm |
| 高度 | 33.3 mm | 长度 | 39.1mm |
| 重量 | 0.023 | 屏蔽 | Unshielded |
| 方向 | Straight | 重量（g） | 26.00000 |
| 安装类型 | Panel Mount | 连接器类型 | :Industrial Ethernet |
| 接触镀层 | :- | 安装样式 | Panel |
| 触头材料 | :- | 壳体材料 | Metal |
| 总长度 | 39.1 mm | 端接样式 | Solder Terminal |
| 触点数 | 4 | 外壳材料及表面处理 | Metal, Nickel Plated |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | RJ-45 | 连接器性别 | RCP |
| 系列 | RJF | 产品特性 | Circular Bayonet Coupling |
| USOC 编码 | RJ45 | 类别编号 | Cat 5e |
| 端口数 | 1 | 射频系列/标准 | RJF |
| 性能类别 | Cat 5e | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | 加载位置数 | 8 |
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
JE18
amphenol pcd
Connector Accessories Panel Gasket For Square Flange Receptacle CONN ACCY GASKET BLACK Circular Connector Seal Gasket Firewire Connectors RJ FIELD GASKET PM RECPT GASKET, PANEL connector accessory, panel gasket for rjfield square flange receptacle Flat gasket for appliance socket, JE18, Amphenol Gasket
RJF21NSCC
amphenol pcd
Connector Accessories Self Closing Cap For RJ45 Nickel And Metallized Insert CONN ACCY CAP Modular Connectors / Ethernet Connectors Female RJ45 Nickel Sq Flange Receptacle connector, metal circular, snap cap recept, metalized insert, rj45 ethernet, nickel
RJF21N
amphenol pcd
Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Square flange rcp,female RJ45 Nickel Modular Connectors / Ethernet Connectors Female RJ45 Nickel Sq Flange Receptacle RECEPT, PANEL, RJ45, RJF, NICKEL connector, metal circ, panel mount recept, 4-hole square flange, rj45, nickel finish Amphenol 直 母 RJ45 连接器 , 面板安装型
RJFC2B
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Black connector accessory, rj field, protectioncap for square flange recept, black fin
RJF21BSCC
amphenol pcd
Connector Accessories Self Closing Cap For RJ45 Black CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Female RJ45 Black Sq Flange Recpt Blk connector, metal circ, panel mount receptw/snap cap, plain insert, rj45, black fin
RJFC2N
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Nickel CONN ACCY CAP metal cap,sq flange rcp,fem, RJ45 Nickel Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Nickel RECEPTACLE DUST CAP, METAL connector accessory, rj field, cap for square flange receptacle, nickel
RJFC2G
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Olive DUST CAP & COVER, RJFC2G Protection Cap; for Square Flange Receptacle; RJ Field; Olive Drab Cadmium

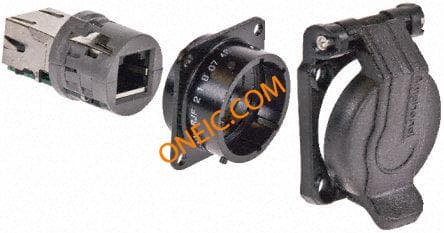

RJF 21 B SCC
