点击放大查看

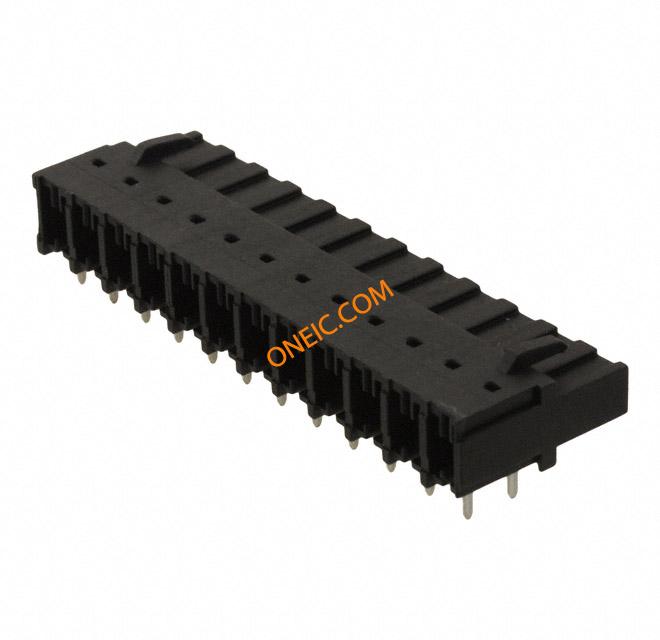

ELFB12230
| 制造商 | |
| 描述 | MALE HEADER/BOARD-MOUNT PLUG, MODULAR Pluggable Terminal Blocks 12 POS BOARD-MOUNT HORIZONTAL TERM BLOCK HDR 12POS R/A 5.08MM |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 其他名称 | APC1223 |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 15A | 电压 | 300V |
机械参数
| 颜色 | Black | 间距 | 0.200" (5.08mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 12 | 位数 | 12 |
| 接线端子类型 | Header, Female Sockets | ||
产品信息
| 产品特性 | Retention Latches, Side Stacking (Interlocking) | 层数 | 1 |
| 每层位数 | 12 | ||
