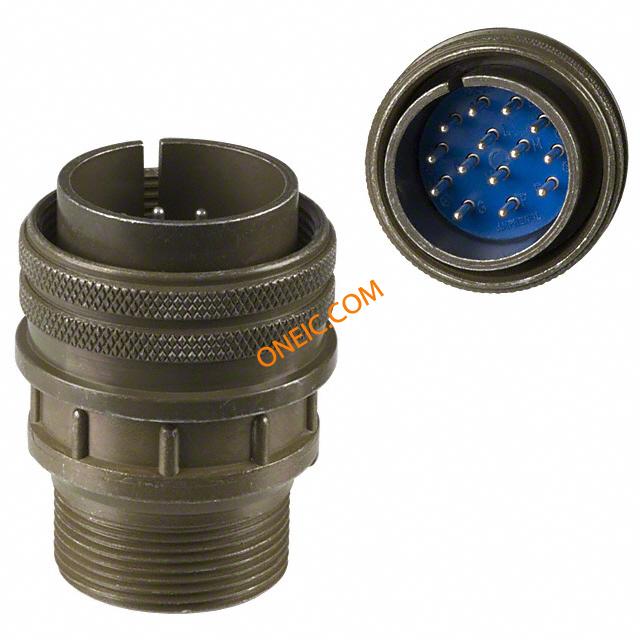

97-3106A-22-19P(946)
| 制造商 | |
| 描述 | Circular MIL Spec Connector 14P Strt Pin Plug Sz 22 Solder Blk Zn CONN PLUG 14POS W/PINS connector;metal circ;str plug;size 22;14 #16 solder pin contact;black finish connector, metal circ, str plug, size 22, 14 #16 solder pin contact, black finish |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL Recognized/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13 A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 22 | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Potting |
| 端接方式 | Solder Cup | 触头类型 | Pin |
| 安装类型 | Straight | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 22-1 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 2 | 介电材料 | Diallyl-Phthalate |
| 位数 | 14 | 外壳尺寸-插件 | 22-19 |

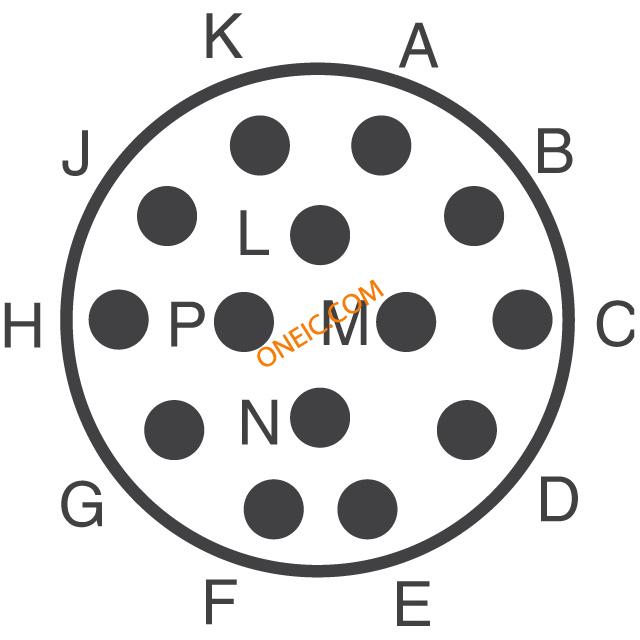

| 外壳材料及表面处理 | Aluminum, Zinc Plated, Black | 典型触点布局 | 14#16 |
产品信息
| 类型 | Cable Plug | 类别 | A |
| 系列 | 97 | 产品特性 | Environmental Resistant, Single Key/Keyway Shell Polarization |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
.jpg&w=3840&q=75)
97-3057-12(621)
amphenol

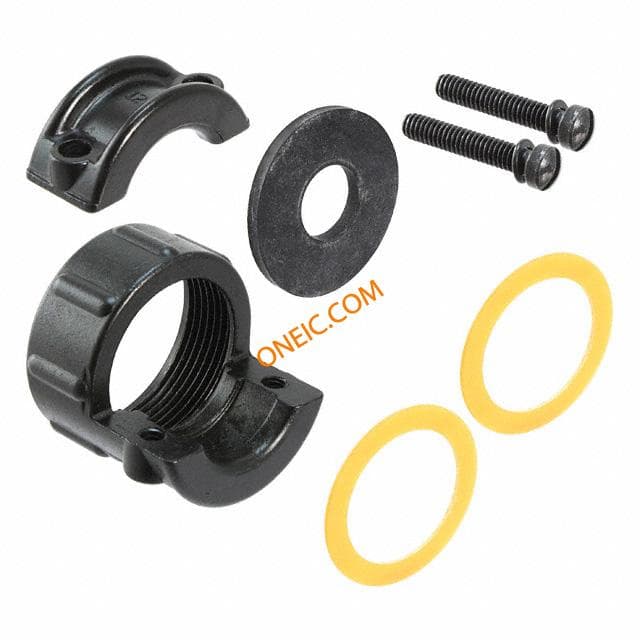

Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp for connector size 20;22;black zinc finis Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Size 20,22 Blk Zinc CABLE CLAMP, SIZE 20, 22 CABLE CLAMP, 97 MIL-C-5015 CONNECTOR connector accessory, an3057 cable clamp for connector size 20, 22, black zinc finis Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3057-1012(621)
amphenol

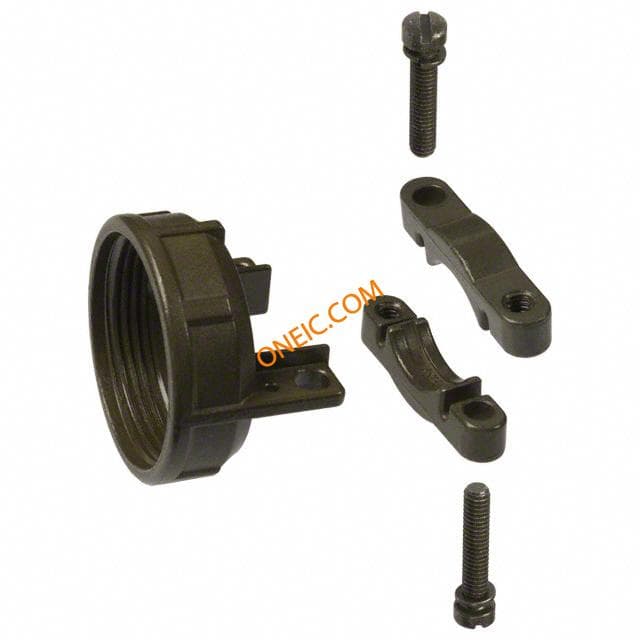

Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CABLE CLAMP SIZE 20, 22 connector accessory;ms3057 cable clamp for connector size 20;22;black zinc finis Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 20, 22 Blk Zinc CABLE CLAMP, SIZE 20/22, DIECAST ZINC CABLE GLAND, SIZE 20, 22 CABLE CLAMP, SIZE 20/22, ZINC ALLOY connector accessory, ms3057 cable clamp for connector size 20, 22, black zinc finis Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3102A-22-19S(946)
Amphenol Industrial
Circular MIL Spec Connector 14P Sz 22 Box Mount Socket Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 14POS W/SOCK connector;metal circ;box recept;size 22;14 #16 solder socket cont;black finish connector, metal circ, box recept, size 22, 14 #16 solder socket cont, black finish
.jpg&w=3840&q=75)
97-60-22P(621)
Amphenol Industrial

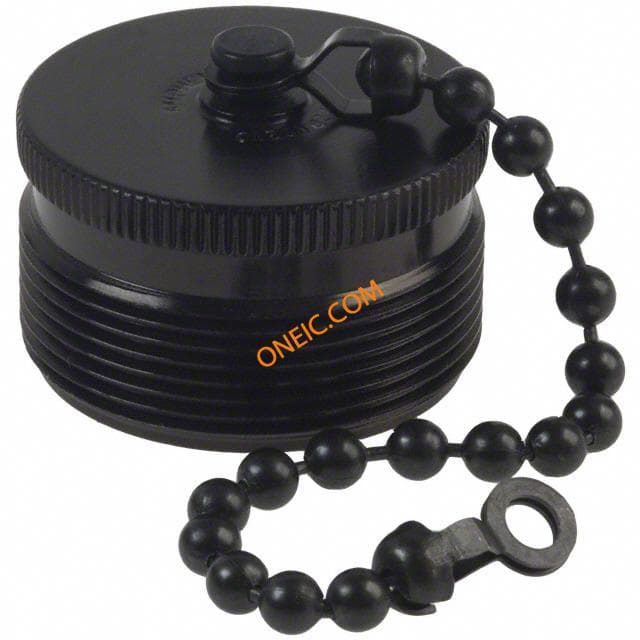

Circular MIL Spec Tools, Hardware & Accessories PLUG CAP 22 BLACK ZINK COBALT CONN CAP FOR SIZE 22 PLUG connector accessory, metal prot cap w/bead chain, for size 22 plugs, black zinc
