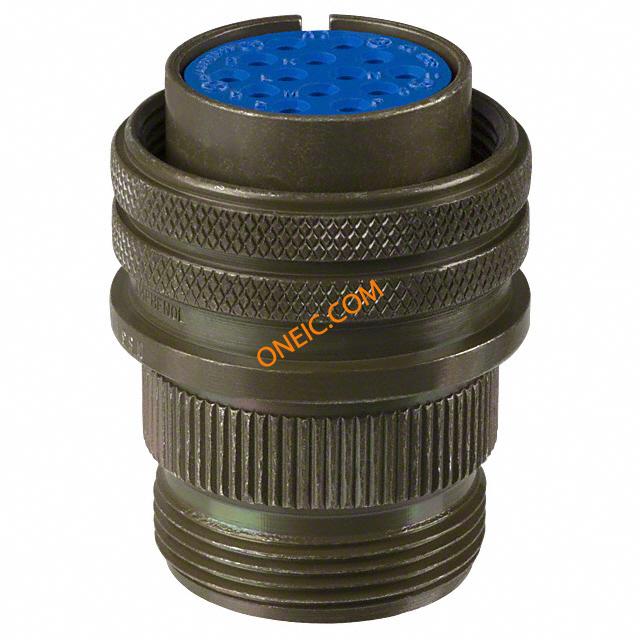

97-3106A-20-27S(946)
| 制造商 | |
| 描述 | Circular MIL Spec Connector 14P Strt Socket Plug Sz 20 Solder Blk Zn Conn MIL-C-5015 Circular SKT 14 POS Solder ST Cable Mount 14 Terminal 1 Port CONN PLUG 14POS W/SOCKETS connector;metal circ;str plug;size 20;14 #16 solder socket contact;black finish connector, metal circ, str plug, size 20, 14 #16 solder socket contact, black finish |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| MIL类型 | MIL-DTL-5015 | 认证机构标志 | UL Recognized/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 直径 | 37.29 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 20 |
| 导线线规 | 22-16 | 方向 | N (Normal) |
| 外壳样式 | In-Line | 端接方式 | Solder |
| 触头类型 | 14Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Zinc Alloy | 行程角度 | Straight |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Free Hanging | 封装形式 | Metal |
| 外壳材料（壳体） | Aluminum Alloy | 连接器用途 | Threaded |
| 插入角度 | 20-27 | 壳体材料 | Aluminum Alloy |
| 总长度 | 47.5 | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | SKT |
| 触点数 | 14 | 介电材料 | Diallyl-Phthalate |
| 位数 | 14 | 外壳尺寸-插件 | 20-27 |
| 外壳材料及表面处理 | Aluminum, Zinc Plated, Black | 典型触点布局 | 14#16 |
| 外壳尺寸-插入件（转换至） | 20-27 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 产品特性 | Environmental Resistant, Single Key/Keyway Shell Polarization | 制造商全称 | 97 Series |
| 产品子类型 | Plugs | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3057-12
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp;connector sizes 20;22;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Shell Size 20,22 CABLE CLAMP, SIZE 20/22, ZINC ALLOY CABLE CLAMP, SIZE 20/22, DIECAST ZINC connector accessory, an3057 cable clamp, connector sizes 20, 22, olive drab finish Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
.jpg&w=3840&q=75)

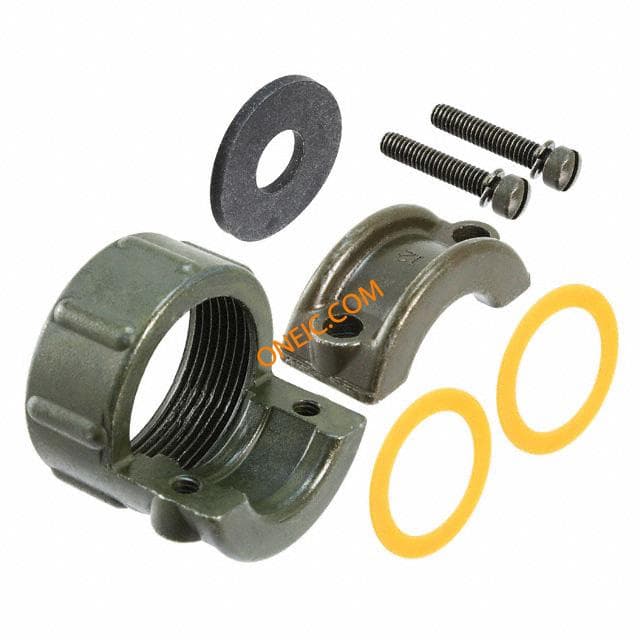

97-3057-12(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp for connector size 20;22;black zinc finis Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Size 20,22 Blk Zinc CABLE CLAMP, SIZE 20, 22 CABLE CLAMP, 97 MIL-C-5015 CONNECTOR connector accessory, an3057 cable clamp for connector size 20, 22, black zinc finis Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线

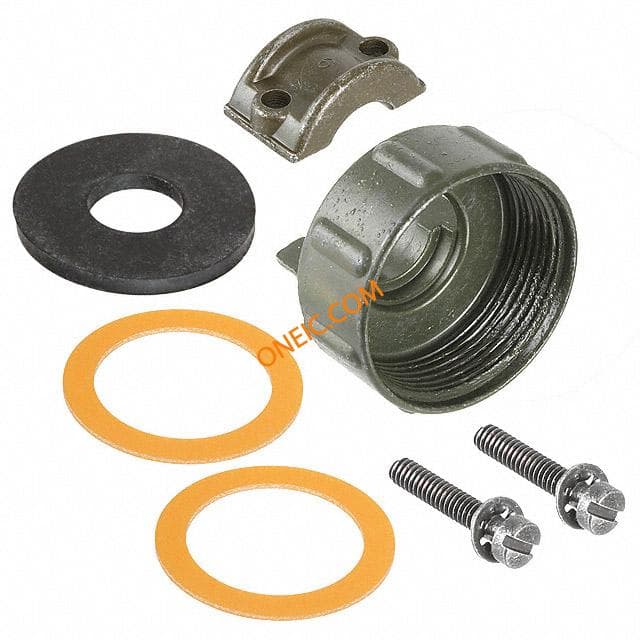

97-3057-12-6
