点击放大查看

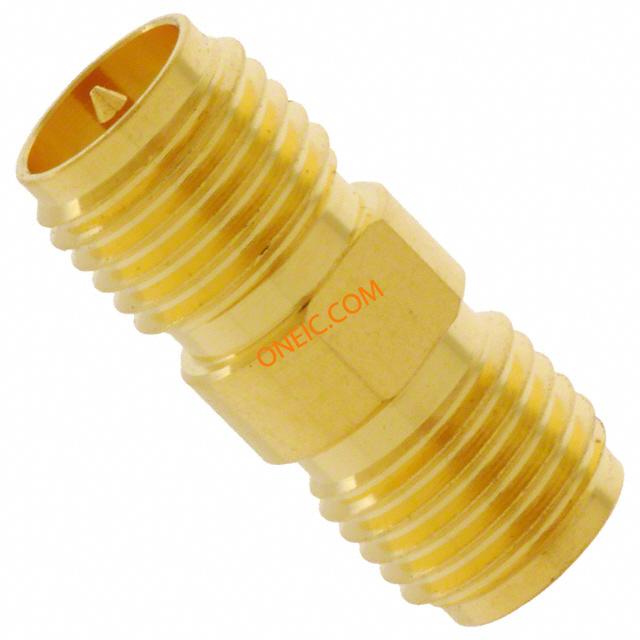

132169RP
| 制造商 | |
| 描述 | Conn SMA Adapter RCP/RCP ST Gold CONN SMA ADAPTER JACK-R/P JACK RF Adapters - In Series SMA JACK TO JACK REVERSE POLARITY ADAPTER, SMA JACK, SMA RP JACK connector, rf coaxial, sma in-series adapter, jack to rev. polarity jack, 50 ohm |
| 分类 |
商业参数
| 其他名称 | ACX1243 | 产品类别 | RF Adapters - In Series |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 阻抗 | 50 Ohm | 转换速率 | Between Series |
| 最大频率 | 18GHz | ||
机械参数
| 重量 | 0.059966 oz | 包装方式 | Bulk |
| 本体表面处理 | Gold | 基体材料 | Brass |
| 安装类型 | Straight | 外壳镀层 | Gold |
| 行程角度 | Straight | 连接器类型 | :Inter Series Coaxial |
| 接触镀层 | Gold | 外壳涂层 | Gold |
| 触头材料 | Beryllium Copper | 壳体材料 | Brass |
| 主要材料 | Adapter | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 第一连接器极性 | Jack (Female) | 第二连接器性别 | Jack (Female) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | :Straight | 第一连接器安装类型 | Normal |
| 第一连接器安装特征 | :Socket | 第二连接器安装特性 | Reverse |
产品信息
| 类型 | SMA Adapter | 样式 | Straight |
| 连接器性别 | RCP/RCP | 适配器类型 | Jack to Jack |
| 中心极性 | Female to Male | 适配器系列 | RP-SMA to SMA |
| 射频系列/标准 | 132169 | 转换端（适配器端） | RP-SMA Jack, Male Pin |
| 转换自（适配器端） | SMA Jack, Female Socket | ||
文档与媒体
相关型号
135103-03-12.00
amphenol connex
Cable Assembly RG316 0.304m SMA to SMA PL-PL Poly Bag CABLE SMA R/A-STR PLUG RG316 12" RF Cable Assemblies SMA R/A Plug to St Plug RG-316/U DB 12 COAXIAL CABLE ASSY, RG-316, 12IN, BLACK SMA CABLE ASSEMBLY, R/A PLUG TO STRAIGHT PLUG, RG-316/U DB, 12 INCHES

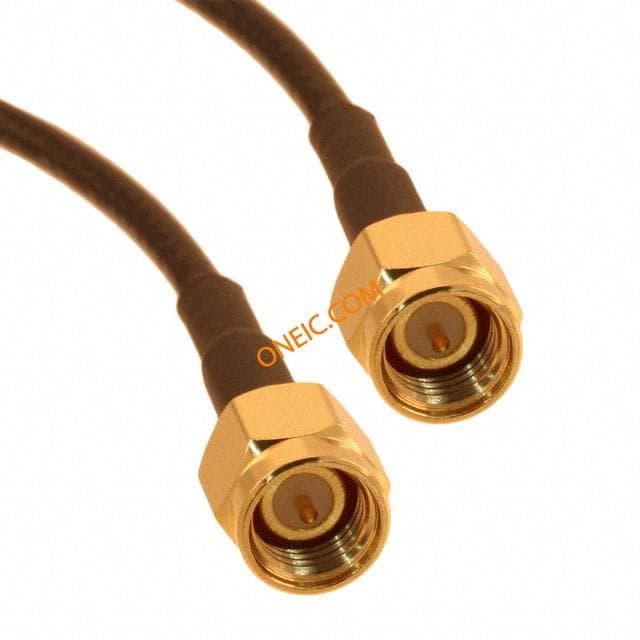

135101-02-36.00
amphenol connex
Cable Assembly RG174 0.914m SMA to SMA PL-PL Poly Bag CBL SMA STR PLUG-PLUG RG174 36" RF Cable Assemblies SMA St Plug to St Plug RG-174/U 36 COAXIAL CABLE ASSY, RG-174, 36IN, BLACK SMA CABLE ASSEMBLY, STRAIGHT PLUG TO STRAIGHT PLUG, RG-174/U, 36 INCHES

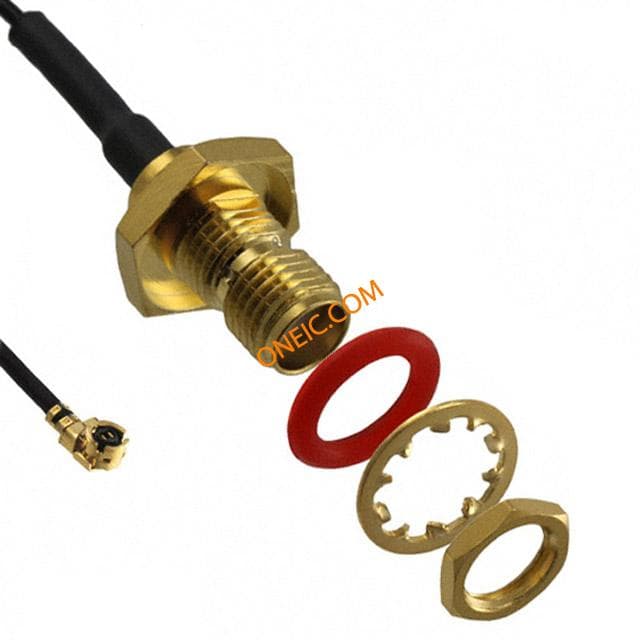

336309-12-0050
