点击放大查看

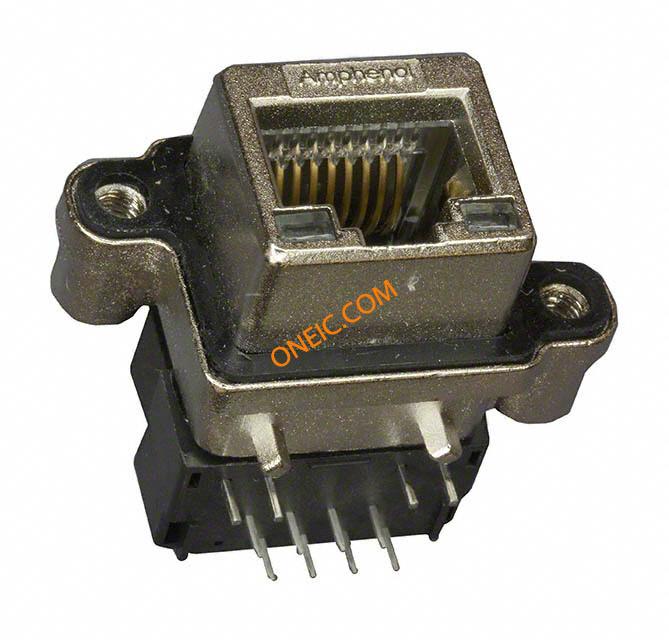

MRJ-5381-01
| 制造商 | Amphenol Corporation |
| 描述 | Conn Modular Jack F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port CONN MOD JACK R/A 8P8C connector;rj45 receptacle;pcb mount;right angle;leds green(L)/yellow(R);ip67 Modular Connectors / Ethernet Connectors RJ45 PCB RECPT RA IP67 YEL/GRN LED NKL RECEPT, RJ45, R/A, Y/R, CAT5E, 1PORT connector, rj45 receptacle, pcb mount, right angle, leds green(L)/yellow(R), ip67 Socket; RJ45; with LED; UL94V-0; IP67; THT; for panel mounting 08P RUGGED RJ PCB MOUNT |
| 分类 |
商业参数
| 其他名称 | MRJ538101 | 零件号别名 | 01M3132 720-3122 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 100 V | 最大额定电流 | 1.5 A |
| 连接器类型 - 电压输入 | with LED | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.014 | LED颜色 | Green - Yellow |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 方向 | 90° Angle (Right) | 端接方式 | Solder |
| 安装类型 | Through Hole | 卡扣方向（或“接线片方向”） | Down |
| 连接器类型 | Jack | 接触镀层 | Gold |
| 安装样式 | for panel mounting | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 30 | 连接器 - 电缆 | socket |
| 触点数 | 8 | 接触件端接 | :Through Hole Right Angle |
| 安装孔间距 | 24mm | 安装孔直径 | 3.2mm |
| 螺纹/螺钉/孔尺寸 | UNC4-40 | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| SPG | 30 | 类型 | Modular Jack |
| 连接器性别 | F | 系列 | MRJ |
| 产品特性 | Board Guide | 端口数 | 1 |
| 单元数量 | 1 | 性能类别 | Cat 5e |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
文档与媒体
相关型号

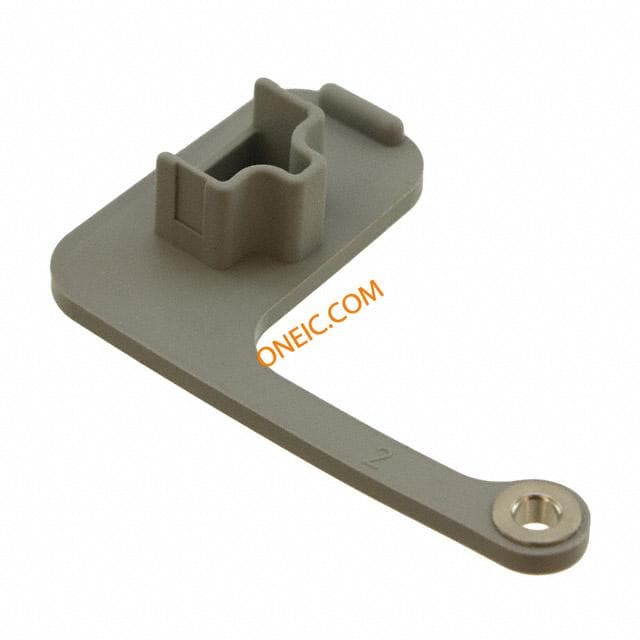

MRJ-2586-10BP
amphenol canada, corp.
Connector Accessories Dust Cover For Receptacle Connector Gray CONN ACCY DUST CAP GRAY DustCover; Accessory; forRJ45Connector; MRJSeries Protection cover; IP67
MRJ-5381-01
amphenol canada, corp.
Conn Modular Jack F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port CONN MOD JACK R/A 8P8C connector;rj45 receptacle;pcb mount;right angle;leds green(L)/yellow(R);ip67 Modular Connectors / Ethernet Connectors RJ45 PCB RECPT RA IP67 YEL/GRN LED NKL RECEPT, RJ45, R/A, Y/R, CAT5E, 1PORT connector, rj45 receptacle, pcb mount, right angle, leds green(L)/yellow(R), ip67 Socket; RJ45; with LED; UL94V-0; IP67; THT; for panel mounting 08P RUGGED RJ PCB MOUNT
MRJ-2586-20BP
Amphenol Commercial Products
Modular Connectors / Ethernet Connectors RJ RUGGED DUST COVER CONN ACCY DUST CAP BLACK MRJ SERIES DUST COVER BLACK
MRJ258610BP
Amphenol Commercial Products
モジュラーコネクタ/Ethernetコネクタ RJ45 dust cover Connector Accessories Dust Cover For Receptacle Connector Gray MRJ, Dust cap, receptacles, grey Modular Connectors / Ethernet Connectors RJ45 dust cover DUST CAP, RJ45, GREY connector accessory, rugged i/o, dust cover for rj45 receptacle Amphenol RJ 连接器防尘盖

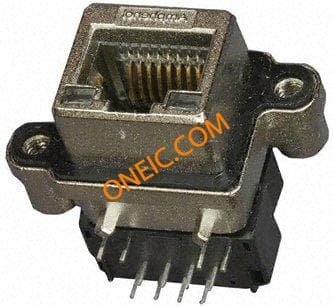

MRJ538101
