点击放大查看

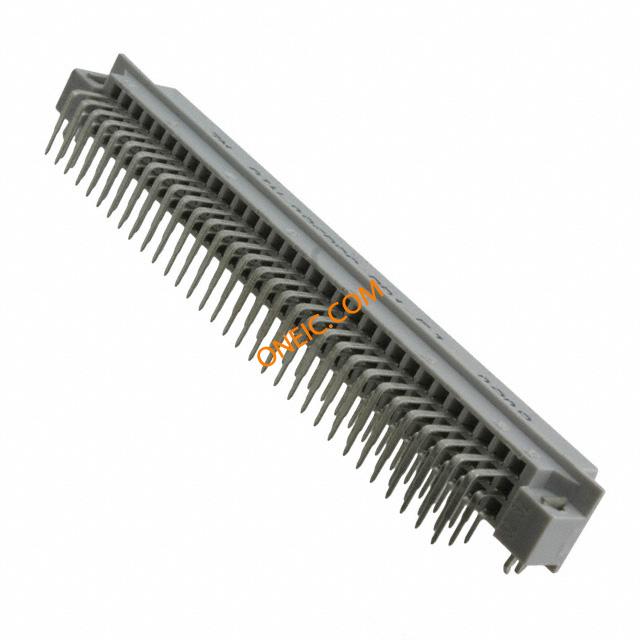

DIN-096RSC-RR1L-FJ
| 制造商 | 3M Company |
| 描述 | DIN/96P/R-SKT/A,B&C/RA/3.00MMST/RET/10AU/RO CONN DIN SOCKET 96POS RA GOLD DIN 41612 Connectors 96P R/A SOCKET DIN 41612 |
| 分类 |
商业参数
| 零件号别名 | 05111994636 70010019449 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 420 | ||
合规参数
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 3A | ||
机械参数
| 间距 | 0.100" (2.54mm) | 包装方式 | Bulk |
| 端接方式 | Solder | 尾部长度 | 3 mm |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 排数 | 3 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 端接样式 | Solder | 触点数 | 96 |
| 位数 | 96 | 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | R | 样式 | R |
| 系列 | DIN | 产品特性 | Board Lock |
| 产品子类型 | Receptacles | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
DIN-096RPC-W-KV
3m interconnect solutions
DIN/96P/R-HDR/A,B,&C/13.16MMWW/ROHS DIN/96P/R-HDR DIN 41612 Connectors 96P VERTICAL PLUG DIN 41612
DIN-096CPC-RR1L-KR
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96 CON RT ANG W/ B RETENTION CLIPS
DIN-096RPC-DPS-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Press Fit ST Thru-Hole Vertical, Solder Tail or Press-Fit Termination CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
DIN-096RPC-R1-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder ST Thru-Hole Vertical, Solder Tail or Press-Fit Termination CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
DIN-096CPC-RR1-HM
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612
DIN-096CPC-RR1-KR
3m interconnect solutions
Conn DIN 41612 HDR 96 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 96POS R/A GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612
DIN-096CPC-SR14A-HM
3m interconnect solutions
DIN/96P/C-HDR/CUSTOM/RA/10PDNI/ROHS CONN DIN PLUG 96POS RA GOLD DIN 41612 Connectors 96P R/A PLUG DIN 41612

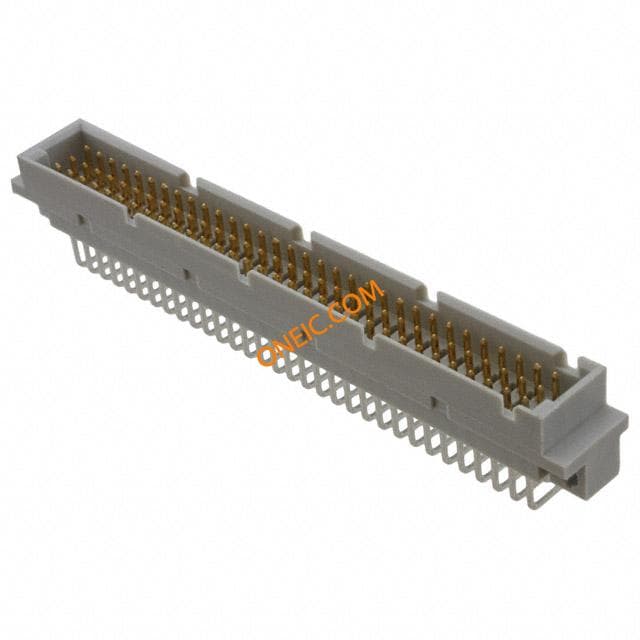

DIN-096CPC-SR1-KR
