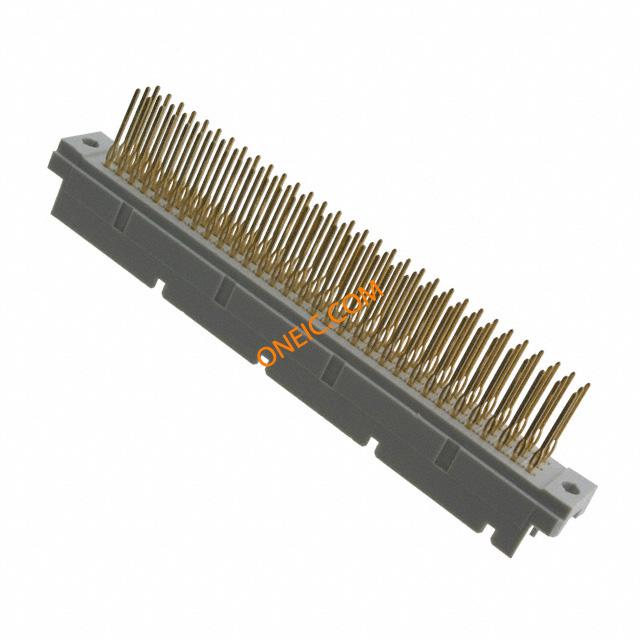

DIN-096RPC-DPW1-KV

制造商	3M Company
描述	Conn DIN 41612 M 96 POS 2.54mm Press Fit ST Thru-Hole CONN DIN PLUG 96POS VERT GOLD DIN 41612 Connectors 96 CON RT ANG
分类	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	05111994308 80001223165	产品类别	DIN 41612 Connectors
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

最大额定电流

机械参数

间距	2.54 mm	包装方式	Bulk
端接方式	Press Fit	尾部长度	13.25 mm
安装类型	Through Hole	连接器类型	Plug, Male Pins
接触镀层	Gold Over Nickel	排数	3
触头材料	Copper Alloy	壳体材料	Polyester
端接样式	Press Fit	触点数	96
位数	96	绝缘材料 - 材质	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
接触镀层厚度	30µin (0.76µm)

产品信息

类型	DIN 41612	样式	R
系列	DIN	产品子类型	Plugs
加载位置数	All

环境参数

工作温度

-55°C ~ 125°C

文档与媒体

PDF 文档

DIN R-Form plug
