点击放大查看

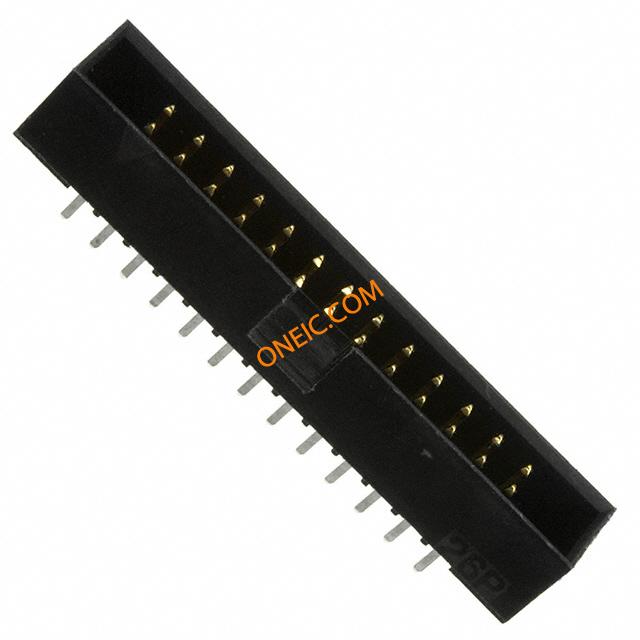

957226-6002-AR
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 26 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm, Solder Tail Box Header CONN HDR 26POS 2MM VERT T/H 10AU Pin header, straight 26P, 957226-6002-AR, 3M |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 极数 | 26 | 最大额定电流 | 1 A |
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Tray | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Gold-plated copper | 壳体材料 | Thermoplastic |
| 触点数 | 26 | 位数 | 26 |
| 第一连接器极性 | Male | 接触镀层厚度 | Flash |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 957 | 加载位置数 | All |
环境参数
| 工作温度 | -40...+105 °C | ||
