点击放大查看

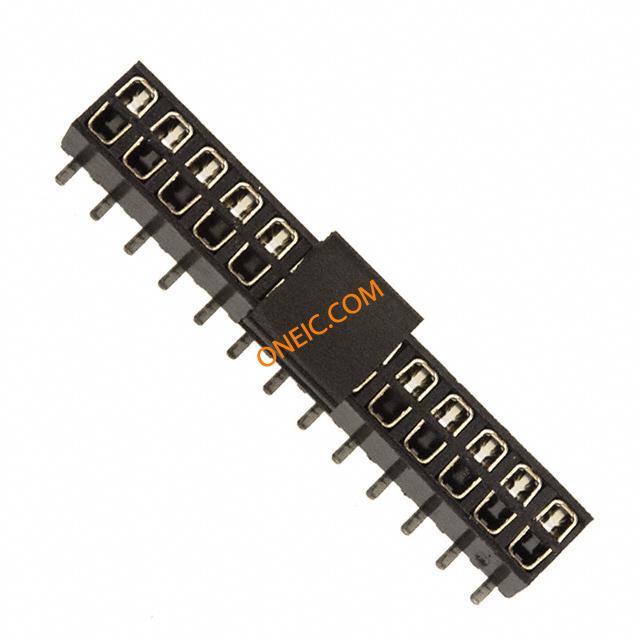

153226-2020-RB-WD
| 制造商 | |
| 描述 | Headers & Wire Housings 26 CONTACTS W/POST 2 mm x 2 mm Surfacemount CONN 2MM SKT 26POS THRU-BRD SMD |
| 分类 |
商业参数
| 其他名称 | 3M5423CT | 零件号别名 | 05111166133 80000904070 |
| 标准包装数量 | 800 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tape & Reel (TR) | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Surface Mount | 连接器类型 | Receptacle, Bottom or Top Entry |
| 接触镀层 | Gold | 排数 | 2 |
| 端接样式 | SMD | 位数 | 26 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 系列 | 1532 | 产品特性 | Board Guide |
| 产品子类型 | Receptacles / Sockets - PCB | 加载位置数 | All |
