芯天下
首页产品分类连接器解决方案背板连接器DIN 4161262C64-1100EC
62C64-1100EC

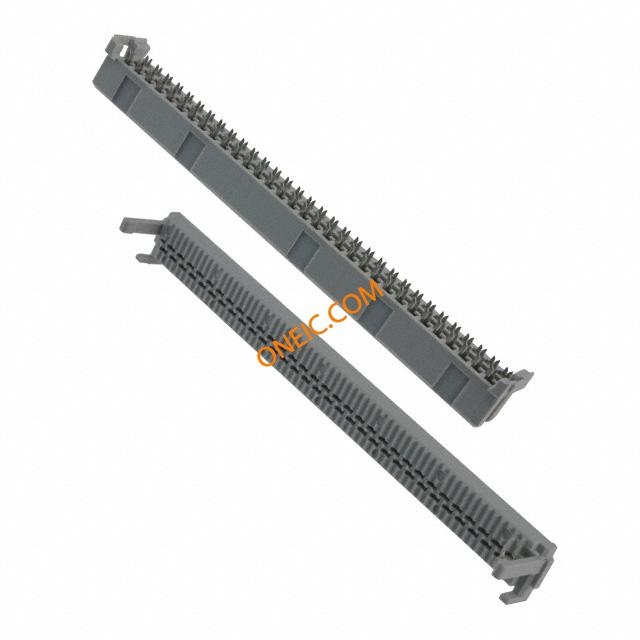

点击放大查看

62C64-1100EC

制造商
3M Company
描述Conn DIN 41612 SKT 64 POS 2.54mm IDT RA Cable Mount Type C (Rows A & C or A, B & C Filled) CONN SOCKET 64POS DIN W/O FLANGE 64/96 way IDC cable socket w/o mount ear DIN 41612 Connectors 64P IDC EUROSOCKET HIGH DENSITY SOCKET, IDC, DIN41612, 64WAY Eurosocket.100X.100(TypeC)RowsA&CorA,B&CFilled(IDCTermination)
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

零件号别名05113841099 DE610020179产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
认证机构:CSA, ULRoHS合规（认证）Yes
材料阻燃等级UL94 V-0

电气参数

额定电压1 kV击穿电压:1kV
最大额定电流1A绝缘电阻:1000Gohm

机械参数

深度10.6 mm间距2.54 mm
重量11.505601 oz材料（通用）:Glass Reinforced Polyester
包装方式Bulk导线线规30-26
端接方式IDT引脚间距:2.54mm
外壳颜色Gray安装类型Cable Mount
连接器类型Receptacle, Female Sockets接触镀层Gold Over Nickel
安装样式Cable排数2
触头材料Copper Alloy壳体材料PBT
总长度86.4 mm端接样式Screw
触点数64接触件端接:IDC / IDT
位数96绝缘材料 - 材质Polybutylene Terephthalate (PBT), Polyester, Glass Filled
接触镀层厚度30µin (0.76µm)第一连接器安装类型:PC Board

产品信息

类型DIN 41612样式C
连接器性别Female系列62CXX
已删除Compliant产品特性Feed Through
产品子类型Receptacles加载位置数64

环境参数

级别、等级1工作温度-55°C ~ 125°C

文档与媒体

在线文档
output_html
PDF 文档
1788390.pdf
