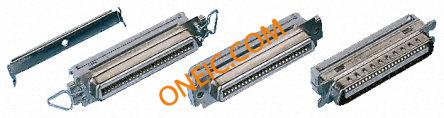

点击放大查看

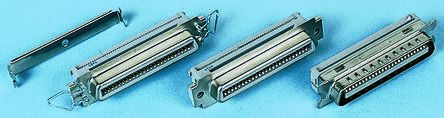

3549-2002
| 制造商 | |
| 描述 | Conn SCSI SKT 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port D-Sub Standard Connectors 24P LOPRO WRMNT SKT Metal Faced Socket CONN SCKT 24POS DELTA W/INSER 3M Female 24 Way Right Angle Cable Mount SCSI Connector 2.16mm Pitch, IDT SOCKET, IDC, 2.16MM, 24WAY D-SubConnector;24;Socket;26to28AWG;0.05in.;0.158in.;Metal 3M 24 路 2.16mm节距 直角 电缆安装 母 SCSI 连接器, IDT |
| 分类 |
商业参数
| 零件号别名 | 05400754008 80610672711 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
| 认证机构 | cUL,UL | RoHS合规（认证） | Yes |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 量程（°/s） | :3M - 3000 Series | 最大额定电流 | 1 A |
机械参数
| 深度 | 20.57mm | 间距 | 2.16 mm |
| 宽度 | 20.8mm | 高度 | 20.8 mm |
| 长度 | 55.1mm | 重量 | 5.650 lbs |
| 电缆类型 | RoundConductorFlat | 导线线规 | 28-26 |
| 端接方式 | IDT | 安装类型 | Cable Mount |
| 外壳镀层 | Gold | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 法兰特征 | Insert, Threaded (4-40) | 外壳涂层 | BrightNickel |
| 安装样式 | Cable | 排数 | 2 |
| 外壳材料（壳体） | Brass | 连接器样式 | Outer Shroud Contacts |
| 触头材料 | Copper Alloy | 壳体材料 | Steel |
| 总长度 | 55.1 mm | 主要材料 | D-Ribbon |
| 触点数 | 24 | 接触件端接 | :IDC / IDT |
| 介电材料 | PBT | 位数 | 24 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | SCSI | 连接器性别 | SKT |
| 制造商全称 | 3000 | 端口数 | 1 Port |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | +105°C | 结工作温度 | 105C |
