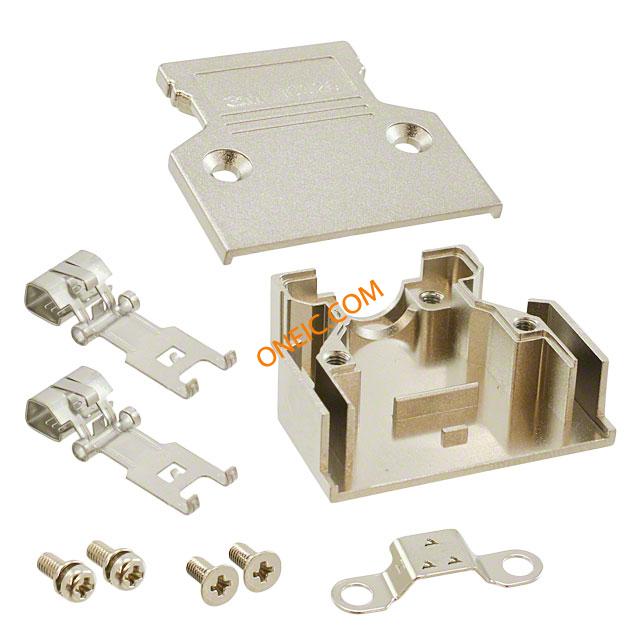

点击放大查看
10326-C200-00
| 制造商 | |
| 描述 | CONN ACC MINI D RIBBON JUNCTION SHELL 26 POS AL D-Sub Backshells 26P JUNCTION SHELL STRT EXIT W/O KEY Zn CONN BACKSHELL 26POS 180DEG SHLD BACKSHELL, MDR, 26WAY, METAL |
| 分类 |
商业参数
| 零件号别名 | 54862335579 JE150407474 | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Silver | 重量 | 0.014 |
| 镀层 | Nickel | 材料（通用） | Zinc Alloy |
| 屏蔽 | Shielded | 出线方向 | 180° |
| 电缆类型 | Round | 外壳镀层 | Nickel |
| 电缆端类型 | Straight | 外壳材料（壳体） | Zinc Alloy |
| 本体材料 | :Aluminium | 连接器颜色 | :Nickel |
| 位数 | 26 | 外壳尺寸-插件 | :- |
| 电缆对数 | 1 | ||
产品信息
| 类型 | EMI/RFI Shielded Backshell | 连接器性别 | Female |
| 系列 | 103 | 产品特性 | Latch Lock |
| 硬件配件 | Assembly Hardware, Cable Clamp | 附件类型 | Two Piece Backshell |
| 适用产品/相关产品 | :Mini D Ribbon 101XX-6000 EC Plug Connectors | ||
环境参数
| 机械寿命 | New At Mouser | ||
