点击放大查看

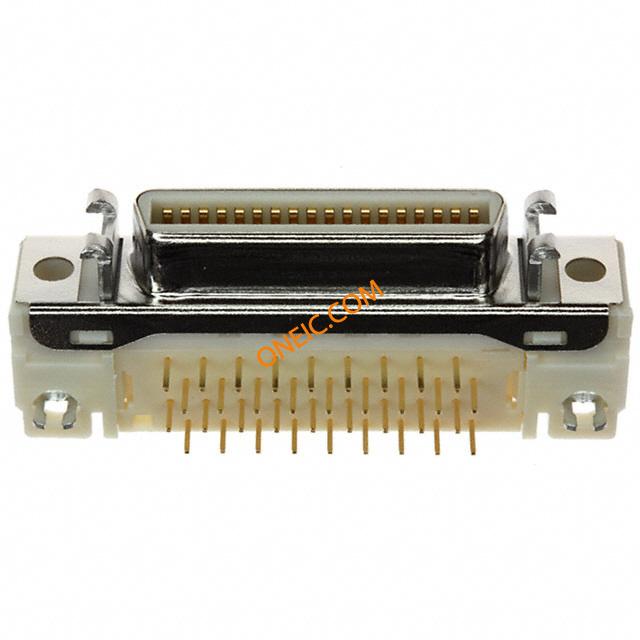

10236-55H3PC
| 制造商 | |
| 描述 | Conn SCSI RCP 36 POS 2.54mm Solder RA Thru-Hole 36 Terminal 1 Port D-Sub Micro-D Connectors 36P R/A SHLD RECEPT BOARDMNT 4-40 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 36POS R/A 4-40 .050MiniDRibbon(MDR)36Pos.Thru-HoleRightAngleReceptacle-Shielded |
| 分类 |
商业参数
| 零件号别名 | 54745226253 JE150318408 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 V | 最大额定电流 | 1 A |
机械参数
| 间距 | 2.54 mm | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Tin Lead |
| 法兰特征 | Insert, Threaded (4-40); Latchblocks | 安装样式 | Through Hole |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 触头材料 | Copper Alloy | 端接样式 | Solder |
| 触点数 | 36 | 位数 | 36 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | 102 | 产品特性 | Board Lock, Shielded |
