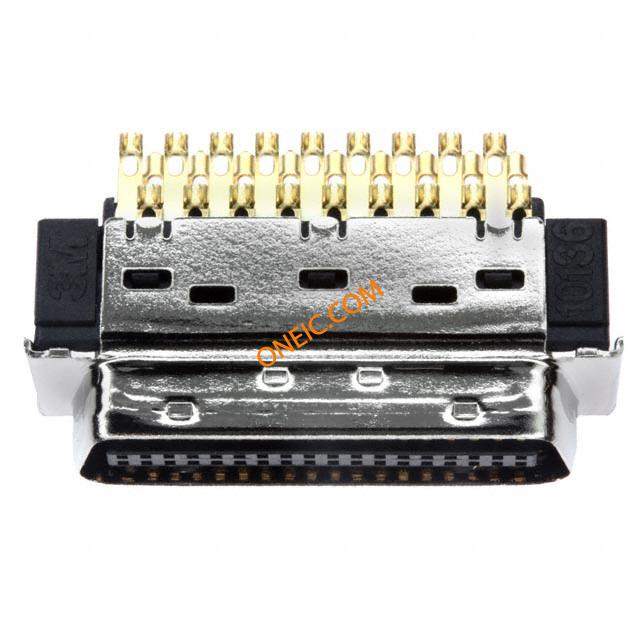

10136-3000PE
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors WIREMT/MDR/PLUG/36PO Wiremount Plug, Solder, Shielded CONN MDR PLUG 36POS SLD CUP 36 way shielded I/O solder plug,1A PLUG, MDR, SOLDER, 36WAY Conn;D-Sub;Mini-D-Ribbon;CablePlug;36Pos;STR;101Series;Solder;30-24AWG;).050In. Connector: MDR; plug; male; shielded; PIN:36; 1.27mm; 24÷30AWG; 1A MDR plug 36P, 10136-3000PE, 3M 3M 101 系列 电缆安装 36 路 焊接 D-sub 连接器 插头 , 1A |
| 分类 |
商业参数
| 零件号别名 | 54745239794 JE150332839 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 测试电压 | 0.5kV | 极数 | :36 |
| 击穿电压 | :500V | 最大额定电流 | 1 A |
| 绝缘电阻 | :500Mohm | 触点额定电流 | 1A |
| 连接器类型 - 电压输入 | shielded | ||
机械参数
| 深度 | 19.3mm | 间距 | 2.54mm |
| 宽度 | 9.1mm | 长度 | 32.2mm |
| 重量 | 0.01 | 材料（通用） | :Steel |
| 导线线规 | 30-24 | 端接方式 | Solder Cup |
| 柱间距 | 1.27mm | 基体材料 | polyester |
| 安装类型 | Straight | 外壳镀层 | :Gold |
| 行程角度 | Straight | 连接器类型 | Plug |
| 接触镀层 | Gold | 安装样式 | Wire |
| 排数 | 2 | 连接器样式 | Center Strip Contacts |
| 插入件材料 | Polyester | 触头材料 | Copper Alloy |
| 壳体材料 | Steel | 包装数量 | 100 |
| 主要材料 | Mini-D-Ribbon | 连接器 - 电缆 | plug |
| 端接样式 | Solder | 触点数 | 36 |
| 接触件端接 | :Solder | 位数 | 36 |
| 接触镀层厚度 | 20µin (0.51µm) | 触点材料 - 镀层 | nickel plated, gold plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| SPG | 100 | 类型 | CablePlug |
| 连接器性别 | Male | 产品特性 | Shielded |
| CAD图纸 | 3D CAD Model | 制造商全称 | 101 |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
10236-6212PL
3M Electronic Solutions Division
D-Sub Micro-D Connectors MDR/RECEP/36POS/PB FREE/30MIN MINI D RIBBON 36 CONTACT 3M Female 36 Way Straight Through Hole SCSI Connector 2.54mm Pitch, Solder RECEPTACLE, MDR, STRAIGHT, 36WAY MDRPCBSKT36W MDR socket 36P, 10236-6212PL, 3M 3M 36 路 2.54mm节距 直 通孔 母 SCSI 连接器, 焊接 36P MDR RECEPTACLE SHIELDED
10336-52F0-008
3M Electronic Solutions Division
D-Sub Backshells 36P JUNCTION SHELL SLDR PLUG NON-SHIELD Shell for Solder, Plastic, Round Cable, Straight Exit, Latches, Non-Shielded CONN JUNCTION SHELL 36POS STRGT 36 way finger release plastic backshell Connector Accessories Solder Plug Junction Shell 36 POS Polyester Black BACKSHELL, MDR, 36WAY, Q/REL Hood;D-Sub;36Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR Plug housing; PIN:36; Locking: lock 3M 103 系列 36 路 直 黑色 聚碳酸酯 (PBT) D-sub 连接器底壳 , 带应力消除
10236-55G3PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 36P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 36POS R/A M2.5 Receptacle MDR PCB shielded 90deg 36 pin 3M MDR 102 系列 1.27mm 节距 36 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
10236-0210EC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 36P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 36POS IDC GOLD Plug IDC Panel Mount MDR Series 36 way SOCKET, MDR, IDC, 36WAY PlugIDCPanelMountMDRSeries36way 3M 102 系列 1.27mm 节距 36 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳
10336-52A0-008
3M Electronic Solutions Division
D-Sub Backshells 36P JUNCTION SHELL JUNCTION SHELL 36POS 36 way screw release plastic backshell PLASTICBACKSHELL,36W Plug housing; PIN:36; Locking: screws 3M 103 系列 36 路 直 黑色 聚合物 D-sub 连接器底壳 , 带应力消除
10336-3210-000
3M Electronic Solutions Division
D-Sub Backshells 36P JUNCTION SHELL IDC WIREMOUNT SHIELD Shell for IDC, Plastic, Round Cable, Straight Exit, Latches, Shielded CONN JUNCTION SHELL 36POS STRGT 36 way finger release plastic hood Connector Accessories Shielded Junction Shell 36 POS Acrylonitrile Butadiene-Styrene Beige BACKSHELL, MDR, 36WAY, SHIELDED Hood;D-Sub;36Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR,Shielded 3M 103 系列 36 路 直 米色 ABS D-sub 连接器底壳 , 带应力消除
10236-R21TS
3M Electronic Solutions Division
D-Sub Micro-D Connectors 36P VERT SHLD RECEP BRDMNT COMPLIANT PIN Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MDR RCPT 36POS VERT T/H 0.050 Mini D Ribbon Board Mount Compliant Pin Vertical Receptacle 36 positions 0.050MiniDRibbonBoardMountCompliantPinVerticalReceptacle36positions
3829
3M Electronic Solutions Division
Crimpers HAND PRESS TOOL HAND FOR MINI-D PLUG MiniDRibbon(MDR)IDCHandtoolKit(forterminatingcabletoMDRIDCplugs)
10236-55H3PC
3m interconnect solutions
Conn SCSI RCP 36 POS 2.54mm Solder RA Thru-Hole 36 Terminal 1 Port D-Sub Micro-D Connectors 36P R/A SHLD RECEPT BOARDMNT 4-40 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 36POS R/A 4-40 .050MiniDRibbon(MDR)36Pos.Thru-HoleRightAngleReceptacle-Shielded
10236-55F3VC
3m interconnect solutions
Conn SCSI RCP 36 POS 2.54mm Solder RA Thru-Hole 36 Terminal 1 Port CONN MINI-D 36POS R/A RECPT
10236-2210PE
3m interconnect solutions

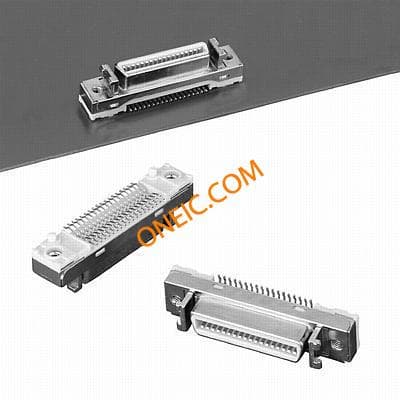

Conn SCSI RCP 36 POS 1.27mm Solder ST SMD 36 Terminal 1 Port D-Sub Micro-D Connectors 36POS VERT RECPT Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 36POS VERT RECPT .050 Mini D Ribbon (MDR) 36 Pos. Surface Mount Vertical Receptacle-Shielded Conn;D-Sub;Mini-D-Ribbon;CableSocket;36Pos;STR;102Series;SMT;.050In.
