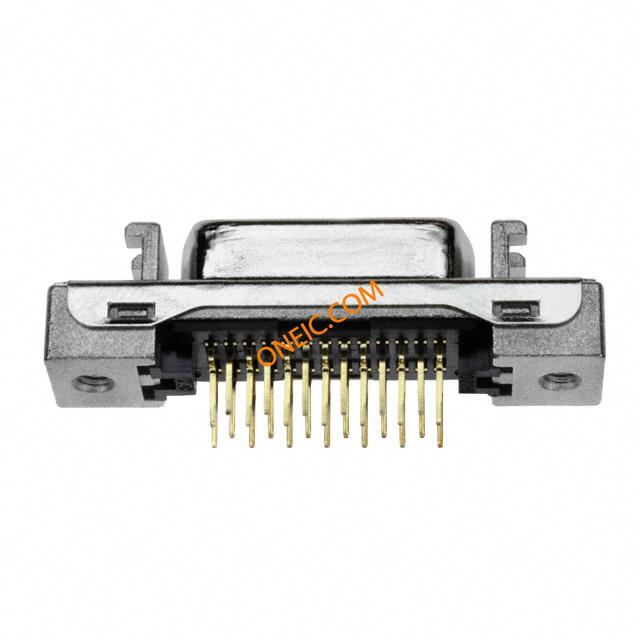

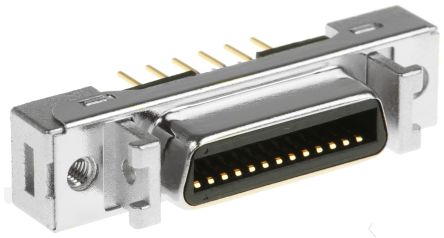

10226-6212PC
| 制造商 | |
| 描述 | Conn SCSI RCP 26 POS 2.54mm Solder ST Thru-Hole 26 Terminal 1 Port D-Sub Micro-D Connectors 26P VERT SHLD RECEPT BOARDMNT M2.5 THREAD 26P CONNECTOR MDR M2.5 STANDARD Boardmount Receptacle, Through-hole, Vertical, Shielded CONN MDR RCEPT 26POS VERT T/H MDR D-Sub receptacle 102 Series 26 way Connector; Mini Ribbon; .050inch; 26 Contacts CONNECTOR,D-SUBMINI,26WAY RECEPTACLE, MINI D RIBBON, THT, 26WAY Connector,MiniRibbon,.050inch,26Contacts 3M MDR 102 系列 1.27mm 节距 26 路 直向 通孔安装 Micro-D 印刷电路板连接器 插座 |
| 分类 |
商业参数
| 最小起订量 | 100 | 单位包装 | 100 |
| 零件号别名 | 54745226185 JE150317657 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | UL E68080 | ||
电气参数
| 额定电压 | 500V | 最大额定电流 | 1 A |
机械参数
| 深度 | 9.1mm | 间距 | 2.54 mm |
| 宽度 | 11mm | 长度 | 37.2mm |
| 重量 | 0.009 | 包装方式 | Bulk |
| 出线方向 | NO | 端接方式 | Solder |
| 触头类型 | FEMALE | 柱间距 | 1.27mm |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Tin Lead | 法兰特征 | Insert, Threaded (M2.5); Latchblocks |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 触头材料 | Copper Alloy |
| 壳体材料 | Glass Fibre Reinforced PET | 尺寸/外形 | 37.2 x 11 x 9.1mm |
| 端接样式 | Solder | 触点数 | 26 |
| 接触件端接 | :Through Hole Vertical | 位数 | 26 |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | 102 | 产品特性 | Shielded |
| 匹配码 | 102266212PC | 标准交期 | 17 weeks |
| 其他规格 | NO | ||
环境参数
| 插拔次数 | 1 | 工作温度 | -50 TO 85°C |
