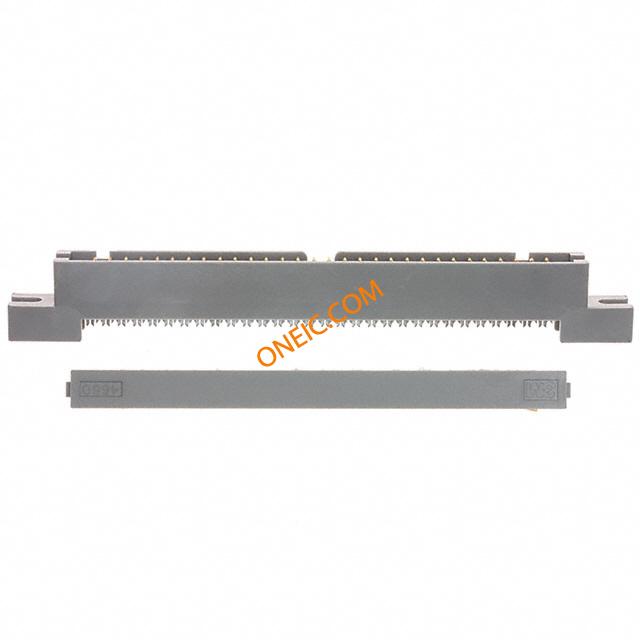

4660-6000

点击放大查看

4660-6000

制造商
3M Company
描述Headers & Wire Housings 60P OPEN END PLUG IDC SHROUDED HEADER .100" × .100" Connector For .050" Pitch Cable PLUG CONNECTOR 60 POS W/FLANGE 3M 4600 Series 2.54mm Pitch 60 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Conn Ejector Header PL 60 POS 2.54mm IDT RA Cable Mount HEADER, IDC, LUGGED, 60WAY 3M60WCABLEMTGPLUG 3M 4600 系列 2.54mm节距 60路 (2排) 直角 PCB 针座, IDT端接, 1A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量100

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (19-Dec-2012)
海关税号85366930RoHS合规（认证）Yes
材料阻燃等级:UL94V-0

电气参数

量程（°/s）:3M - 4600 Series工作电压:350V
接触电阻:20mohm最大额定电流1A
绝缘电阻:1000Mohm

机械参数

颜色Gray深度8.4 mm
间距0.100" (2.54mm)高度13.34 mm
重量0.012材料（通用）:Glass Filled Polyester (PBT)
包装方式Bulk导线类型Discrete or Ribbon Cable
导线线规26-28 AWG, Stranded or Solid排间距0.100" (2.54mm)
端接方式IDT触头类型Male Pin
引脚间距:2.54mm外壳颜色Gray
安装类型Free Hanging (In-Line)连接器类型Plug
接触镀层Gold安装样式Cable
排数2触头材料Copper Alloy
壳体材料Polybutylene Terepht总长度101.6 mm
电缆端接方式IDC连接器颜色:Grey
触点数60接触件端接:IDC / IDT
位数60接触镀层厚度30µin (0.76µm)
第一连接器安装类型:Cable

产品信息

类型Ejector Header连接器性别PL
系列4600产品特性Feed Through

环境参数

插拔次数:200测试温度:70°C
工作温度-55C to 105C

文档与媒体

PDF 文档
6352.pdf
