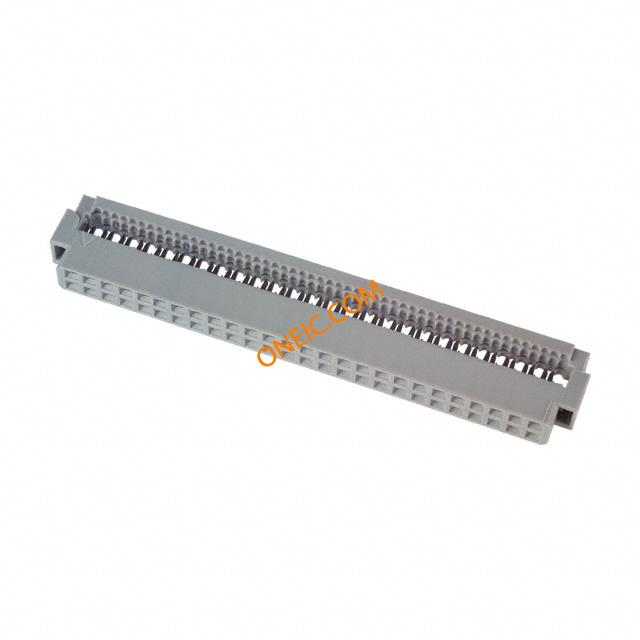

152250-0100-GB
| 制造商 | |
| 描述 | Headers & Wire Housings 50P LO PRO SOCKET CONN 50POS 2MM IDC SOCKET GOLD Socket; Pak 20 Wiremount; 1 mm pitch cable; Copper Alloy; 1 A; 1000 V (RMS) WIRE-BOARD CONNECTOR, SOCKET, 50POS, 2MM Socket;Pak20Wiremount;1mmpitchcable;CopperAlloy;1A;1000V(RMS) |
| 分类 |
商业参数
| 零件号别名 | 05113825835 80610490213 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 125 | 工厂包装数量 | 125 |
合规参数
| RoHS | Compliant | 标准 | ULListed,ULRecognized,cULRecognized,RoHSCompliant |
| 海关税号 | 85369010 | 认证机构 | cUL,UL |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压值 | 1000V(RMS) | 最大额定电流 | 1A |
| 绝缘电阻 | >1x10^9Ohms | ||
机械参数
| 颜色 | Gray | 间距 | 0.079" (2.00mm) |
| 重量 | 0.00204 | 镀层 | Gold |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 出线方向 | LowProfile | 导线线规 | 28 AWG |
| 排间距 | 0.079" (2.00mm) | 端接方式 | IDC |
| 触头类型 | Female Socket | 插座深度（或方向） | Pak20Wiremount |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | :Copper Alloy | 壳体材料 | GlassFilledPolyester |
| 总长度 | 2.17" | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 2.17in.Lx0.16in.Wx0.29in.H | 导线端接方式 | 28AWGStranded |
| 电缆端接方式 | IDC | 插针孔直径 | 0.079" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 50 | 接触件端接 | :IDC / IDT |
| 位数 | 50 | 绝缘材料 - 材质 | GlassFilledPolyester(PBT) |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Ribbon Cable | 连接器性别 | :Receptacle |
| 系列 | 1522 | 产品特性 | Feed Through |
| 制造商全称 | 1522Series | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | 1mmpitchcable | ||
环境参数
| 工作温度 | -67to+221°F | 结工作温度 | +105°C |
