点击放大查看

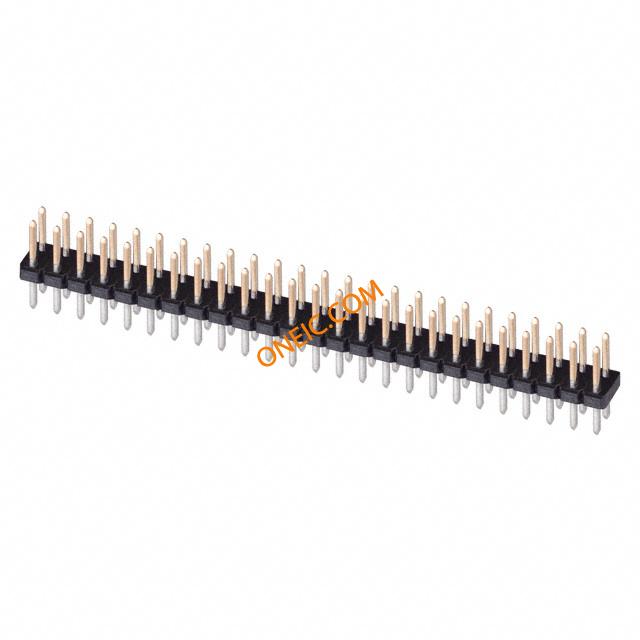

151250-8422-RB
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 50 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 50POS 2MM HEADER DUAL GOLD Headers & Wire Housings 50P STRT HDR .118 TAIL 30U AU |
| 分类 |
商业参数
| 零件号别名 | 05111166073 80000903486 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 额定电压 | 500 V | 开关功能 | Unlatched |
| 最大额定电流 | 1.5 A | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Bulk | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polycyclohexylenedimethylene Terephthalate (PCT) |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 50 | 位数 | 50 |
| 接触长度 - 配合 | 0.152" (3.86mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 1512 | 产品子类型 | Headers |
| 加载位置数 | All | ||
