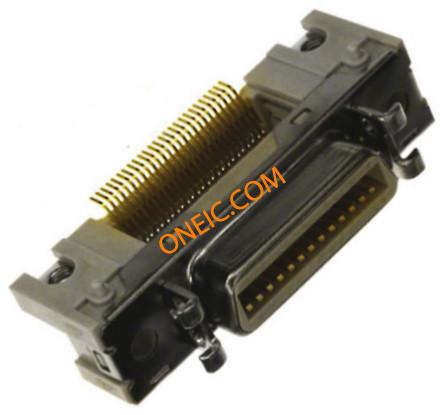

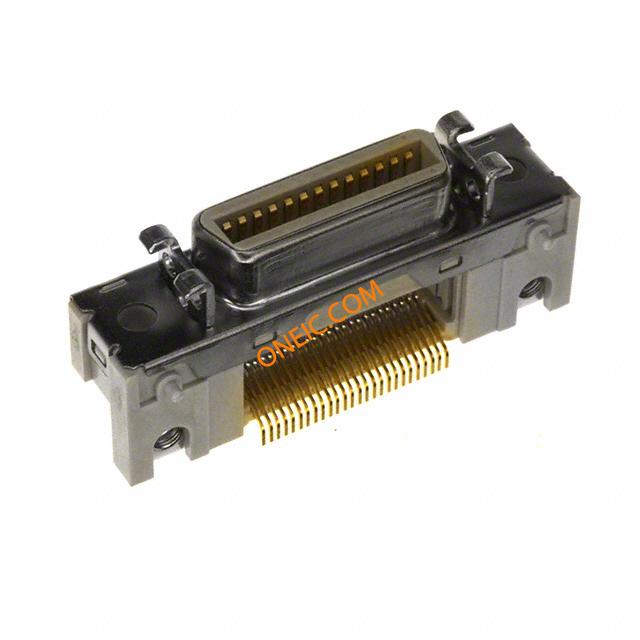

10226-1A10PE
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors MDR/RECEP/26POS CONN RECEPT 26POS R/A .050" SMD Socket MDR 102 Series SMT 26 way Mating Connector; 26 position MDR Socket; Right Angle; Surface Mount RECEPTACLE, R/A, SMT, 26WAY MatingConnector,26positionMDRSocket,RightAngle,SurfaceMount 3M MDR 102 系列 0.635mm 节距 26 路 直角 表面安装 Micro-D 印刷电路板连接器 插座 |
| 分类 |
商业参数
| 零件号别名 | JE150317848 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 深度 | 9.35mm | 间距 | 0.635mm |
| 宽度 | 16.55mm | 长度 | 38.2mm |
| 重量 | 0.03 | 端接方式 | Solder |
| 安装类型 | Right | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 法兰特征 | Insert, Threaded (M2.5); Latchblocks |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 壳体镀层 | :Nickel | 外壳材料（壳体） | Glass Filled Polyester |
| 连接器样式 | Outer Shroud Contacts | 触头材料 | Copper Alloy |
| 壳体材料 | Glass Fibre Reinforced PET | 尺寸/外形 | 38.2 x 16.55 x 9.35mm |
| 端接样式 | Solder | 连接器颜色 | :Beige |
| 触点数 | 26 | 接触件端接 | :Surface Mount Right Angle |
| 位数 | 26 | 接触镀层厚度 | 20µin (0.51µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 连接器性别 | Female | 系列 | Beige |
| 产品特性 | Board Guide, Shielded | ||
环境参数
| 工作温度 | +105°C | ||
