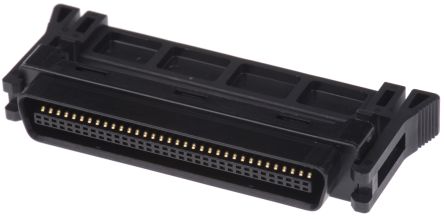

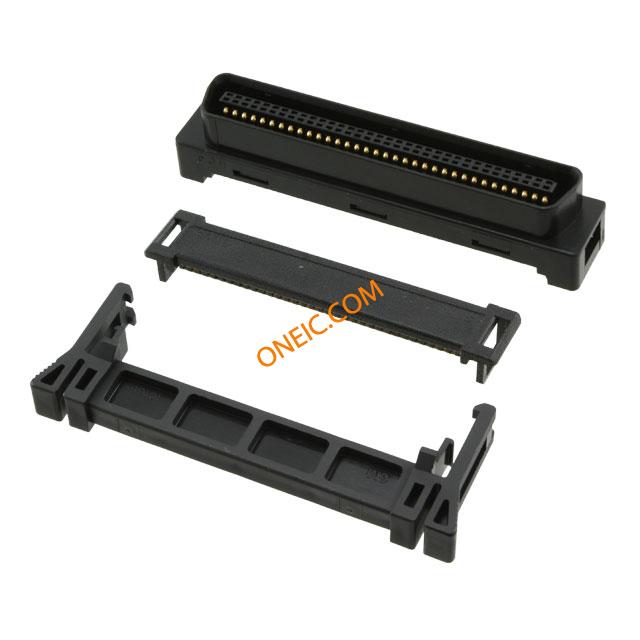

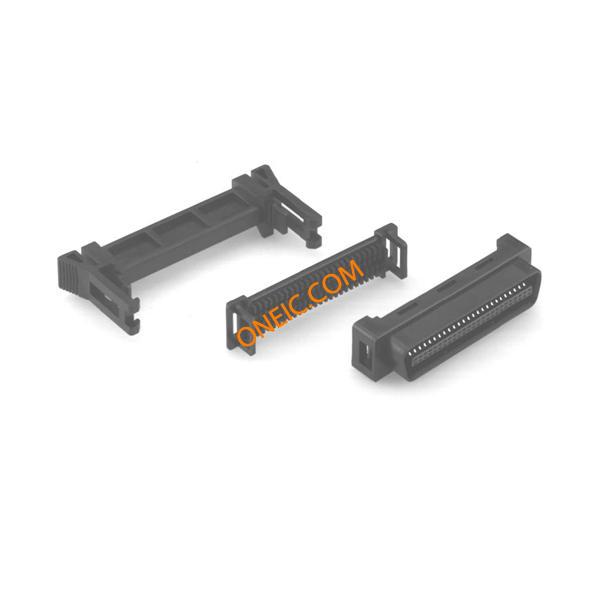

10168-8000EE
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors 68P IDC WMT PLG/STRL Wiremount Plug, IDC, Non-Shielded CONN MINI-D 68POS IDC PLUG Plug MDR IDC non-shielded 68 pin Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 60 Terminal 1 Port 3M 101 系列 1.27mm 节距 68 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| 分类 |
商业参数
| 零件号别名 | 90169049250 JE150198172 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 深度 | 10mm | 间距 | 1.27mm |
| 宽度 | 11.1mm | 长度 | 53.3mm |
| 重量 | 1 lb | 方向 | 直 |
| 端接方式 | IDC | 安装类型 | Straight |
| 外壳镀层 | Nickel | 连接器类型 | Plug |
| 接触镀层 | Gold | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Beryllium Copper |
| 连接器样式 | Center Strip Contacts | 触头材料 | Beryllium Copper |
| 壳体材料 | 钢 | 尺寸/外形 | 53.3 x 11.1 x 10mm |
| 端接样式 | IDC | 触点数 | 68 |
| 位数 | 68 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 连接器性别 | Male | 系列 | 101 |
| 产品特性 | Strain Relief | ||
环境参数
| 工作温度 | +85°C | ||
