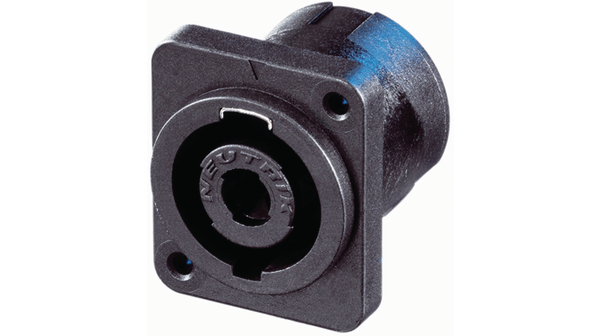

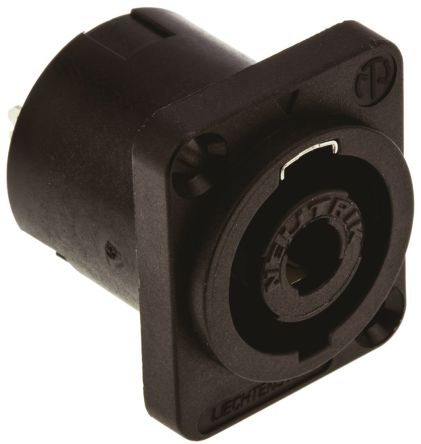

图片仅供参考,产品以实物为准
| 规格书 |
 |
| Status | Active |
| 身体上的取向 | Straight |
| 触点材料 | Bronze |
| 触点电镀 | Silver |
| 额定电流 | 40A |
| 性别 | Male |
| 外壳材料 | Nylon |
| 最高工作温度 | +80°C |
| 最低工作温度 | -30°C |
| 安装类型 | Panel Mount |
| 触点数 | 4 |
| 端接方式 | Solder |
| 额定电压 | 250 V |
| 工厂包装数量 | 10 |
| 产品种类 | Loudspeaker Connectors |
| 颜色 | Black |
| 单位重量 | 0.423288 oz |
| 标准 | Speakon, HPC |
| 安装风格 | Chassis (Panel) |
| 位置/触点数 | 4 |
| RoHS | RoHS Compliant |
| 系列 | :- |
| No. of Contacts | :4 |
| Connector Colour | :Black |
| 接触端子 | :Quick Connect |
| Connector Mounting | :Panel |
| Connector Body Material | :Metal |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :IEC |
| 颜色 | :Black |
| Connector Mounting Orientation | :Panel |
| 接触电阻 | :3mohm |
| 外部深度 | :27mm |
| External Length / Height | :31mm |
| 外宽 | :26mm |
| 绝缘电阻 | :100Mohm |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :-30°C |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.012 |
| Tariff No. | 85369010 |
| AgencyApprovals | UL,CSA |
| Angle | Straight |
| Brand/Series | Speakon |
| ContactPlating | Silver |
| CurrentRating | 30A |
| Current,Rating | 30A(Continuous),40A(Audiosignal) |
| FlammabilityRating | UL94HB |
| Flammability,Housing | UL94HB |
| InsulationType | Uninsulated |
| Material,Body | Polyamide |
| Material,Contact | Bronze |
| Material,Housing | PA630%GR |
| MountingType | Panel |
| NumberofContacts | 4 |
| NumberofPoles | 4 |
| PrimaryType | Speaker |
| Resistance,Contact | 3Milliohms |
| Resistance,Insulation | >2Gigaohms |
| TemperatureRange | -30to+80°C |
| 端子 | Thru-Hole |
| 类型 | Plug |
| Voltage,Rating | 250V |
| RoHS指令 | RoHS Compliant Part |
| Electrical mounting | 4.8mm connectors |
| Mechanical mounting | flange (2 holes), for panel mounting |
| 额定电流 | 30A |
| Multiplicity | 1 |
| Connector type | male |
| 连接器 | socket |
| Gross weight | 0.02 kg |
| 针数 | 4 |
| 额定电压 | 250V |
| Connector series | speakON |
| Collective package [pcs] | 10 |
| spg | 10 |
| associated | SCDX SCDR NDL NL4FX-2 NL4MP |
