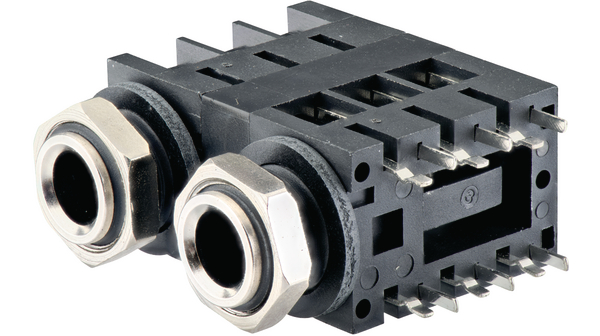

图片仅供参考,产品以实物为准
| 规格书 |
 |
| Status | Active |
| 类型 | Audio |
| 性别 | F |
| 端接方式 | Solder |
| 安装 | Through Hole |
| 身体上的取向 | Right Angle |
| 标准包装 | Bulk |
| 工厂包装数量 | 100 |
| 产品种类 | Phone Connectors |
| 定位 | Horizontal |
| 额定电压 | 1 kV |
| 颜色 | Black |
| 端接类型 | Through Hole |
| 交换机配置 | Switched |
| 标准 | 1/4 in |
| 封装 | Bulk |
| 位置/触点数 | 3 (TRS, Stereo) |
| 触点电镀 | Tin over Copper |
| 系列 | M Series |
| 触点材料 | Brass |
| RoHS | RoHS Compliant |
| 联系额定值 | 10 A |
| No. of Contacts | :3 |
| 接触端子 | :Through Hole Right Angle |
| Connector Mounting | :PCB |
| Connector Body Material | :Plastic |
| Connector Colour | :Black |
| Connector Mounting Orientation | :PC Board |
| 针尺寸 | :6.35mm |
| Weight (kg) | 0.017 |
| Tariff No. | 85366930 |
| Electrical mounting | THT |
| Mechanical mounting | for panel mounting |
| Flammability rating | UL94V-0 |
| Multiplicity | 1 |
| Connector type | female |
| Spatial orientation | angled 90° |
| 连接器 | socket |
| Gross weight | 0.02 kg |
| Operating temperature | -25...75°C |
| 接触镀层 | tinned |
| spg | 100 |
| Collective package [pcs] | 100 |
| Enclosure material | PBT |
| Contact material | bronze |
| associated | ACPS-GN ACPS-GB ACPS-RN ACPS-RB |
