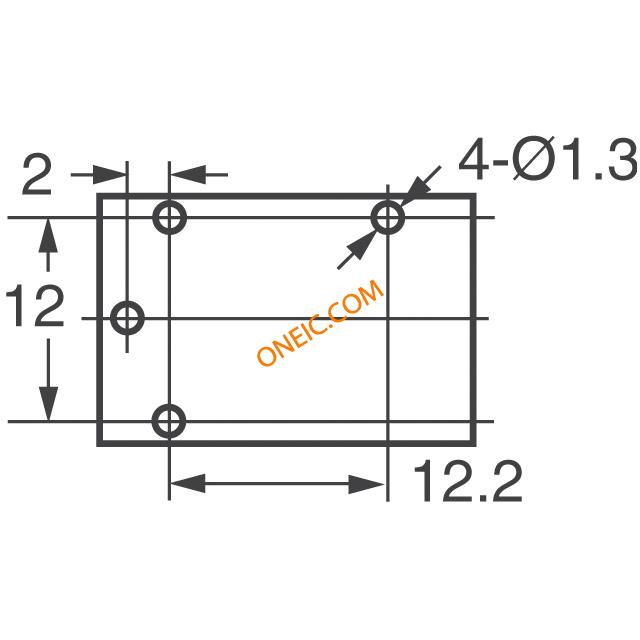

1. JS1A-9V

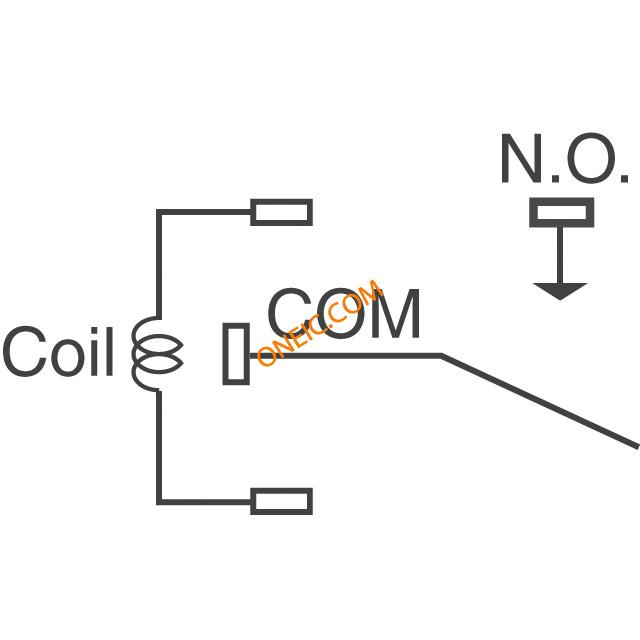

  2. JS1A-9V
  3. JS1A-9V
  4. JS1A-9V
  5. JS1A-9V

图片仅供参考,产品以实物为准

厂商型号

JS1A-9V

产品描述

General Purpose Relays 10A 9VDC SEALED PCB RELAY POWER

内部编号

282-JS1A-9V

#1

数量:142
1+¥7.5118
25+¥6.9284
100+¥6.4178
250+¥5.9073
500+¥5.4698
1000+¥5.3239
2500+¥5.178
最小起订量:1
美国纽约
当天发货,1-3个工作日送达.
立即询价

#2

数量:142
1+¥9.6044
25+¥8.89
100+¥6.985
250+¥6.4294
500+¥5.9531
1000+¥5.7944
2500+¥5.6356
最小起订量:1
阿姆斯特丹
当天发货,5-8个工作日送达.
立即询价

#3

数量:142
最小起订金额:¥₩600
新加坡
当天发货,1-3个工作日送达.
立即询价

订购说明

质量保障

原厂背书质量,全面技术支持

全场免邮
全场免运费 /报价不含任何销售税

JS1A-9V产品详细规格

规格书 JS1A-9V datasheet 规格书
JS Relays
JS1A-9V datasheet 规格书
文档 Standards Chart
General Appl Guidelines
How to Read Date Codes
Coil Current 40mA
Coil Power 360 mW
Coil Resistance 225 Ohms
Coil Type Non Latching
Coil Voltage 9VDC
Contact Form SPST-NO (1 Form A)
Contact 材料 Silver Alloy
Contact Rating (Current) 10A
Features Sealed - Fully
Mounting Type Through Hole
Operate Time 10ms
Operating Temperature -40°C ~ 70°C
Relay Type General Purpose
Release Time 10ms
Switching Voltage 250VAC, 100VDC - Max
Termination Style PC Pin
Turn Off Voltage (Min) 0.9 VDC
Turn On Voltage (Max) 6.3 VDC
线圈电流 40mA
线圈电压 9VDC
开启电压(最大值) 6.3 VDC
产品特点 Sealed - Fully
线圈类型 Non Latching
关闭电压(最小值) 0.9 VDC
线圈功率 360 mW
触点形式 SPST-NO (1 Form A)
继电器类型 General Purpose
端接类型 PC Pin
切换电压 250VAC, 100VDC - Max
释放时间 10ms
封装 Bulk
工作温度 -40°C ~ 70°C
操作时间 10ms
触点额定值(电流) 10A
标准包装 100
安装类型 Through Hole
触点材料 Silver Alloy
线圈电阻 225 Ohms
RoHS指令 Lead free / RoHS Compliant
Initial contact resistance, max (By voltage drop 6 V DC 1 A) 100 mohm
Min switching capacity 100 mA, 5 V DC
操作功能 Single Side Stable
Pick-up voltage, (max) (at 20C 68F) 6.3 VDC
安装 PC Board
Max switching power 2,500 VA
Unit weight Approx.12 g .423 oz
Initial breakdown voltage - Between contacts and coil 1,500 Vrms for 1 min.
Expected life (min ope) - Mechanical (at 180 cpm) 10^7
电流 10 Amps
Expected life (min ope) - Electrical at 10 A 125 V AC, 6 A 277 V AC resistive (standard) 10 A 277 V AC resistive (High power) 10^5
Functional Shock Resistance Min. 98 m/s^2 {10 G}
Expected life (min ope) - 10 A 250 V AC resistive (Standard: at 20 cpm) (High power: at 20 cpm, 105C 221F) 5 10^4 (No contact only)
Nominal switching capacity 10 A 250 V AC, 10 A 125 V AC, 6 A 277 V AC
Contact material Silver alloy
Initial insulation resistance Min. 100 Mohm (at 500 V DC)
Coil resistance, (10%) (at 20C 68F) 225 ohm
类型 Standard type
Operate time (at nominal voltage) Approx. 10 ms
Protective construction Sealed type
MainCategory Relays
Initial breakdown voltage - Between open contacts 750 Vrms for 1 min.
Destructive Shock Resistance Min. 980 m/s^2 {100 G}
Nominal operating current, (10%) (at 20C 68F) 40 mA
Max operating speed 20 cpm
Release time(without diode) (at nominal voltage) Approx. 10 ms
Nominal operating power 360 mW
Max switching current 10 A (AC), 5 A (DC)
SubCategory General Purpose Relay
湿度 5 to 85% R.H.
Nominal operating power, (at 20C 68F) 360 mW
Max allowable voltage (at 85C 185F) 130% V of nominal voltage
联系配置 1A SPST-NO
Ambient temp 40C to +85C, 40F to +185F
Destructive Vibration resistance Approx. 117.6 m/s^2 {12 G}, 10 to 55 Hz at double amplitude of 2 mm
Max switching voltage 250 V AC, 100 V DC
Drop-out voltage, (min) (at 20C 68F) 0.9 VDC
Temperature rise (at nominal voltage) Max. 35C, resistive, nominal voltage applied to coil. Contact carrying current: 10A, at 85C 185F
Functional Vibration resistance Approx. 98 m/s^2 {10 G}, 10 to 55 Hz at double amplitude of 1.6 mm
