EN2P5 interconnect 系列
Switchcraft, Inc.防水圆型面板连接器，带5个接触点
Switchcraft, Inc. 的 EN2P5 系列是防水圆形面板连接器，适用于需要在恶劣环境中可靠电气连接的应用。这些连接器具有五个接触点，使其适合多种工业和户外项目，尤其是需要多个信号或电源连接的地方。如果您正在开发需要在潮湿或多尘条件下运行的设备，例如户外照明系统、安全摄像头或工业机械，EN2P5 系列可能是一个不错的选择。
值得一提的是其坚固的设计。圆形形状提供了紧凑而安全的连接，有助于防止意外断开。此外，这些连接器设计用于在包括湿气、灰尘和温度波动在内的各种环境应力下工作，而不影响性能。当工程师需要在标准连接器因暴露于自然环境而失效的情况下，寻找一个简单可靠的多信号或多电源连接解决方案时，往往会选用 EN2P5 系列。

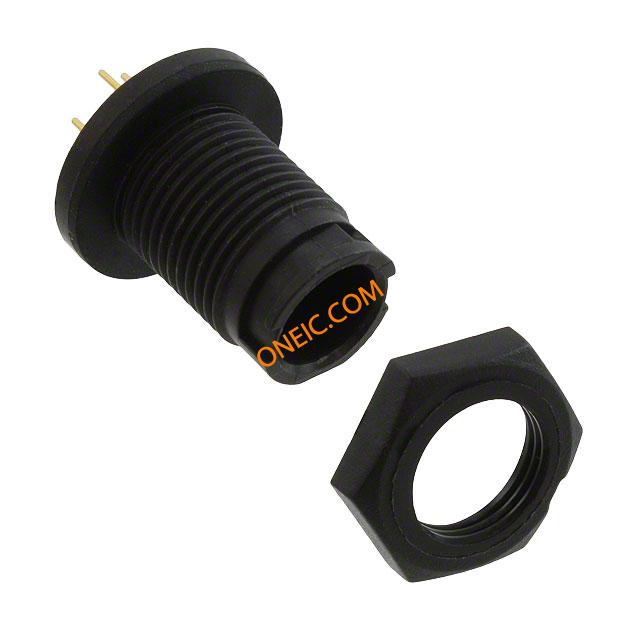

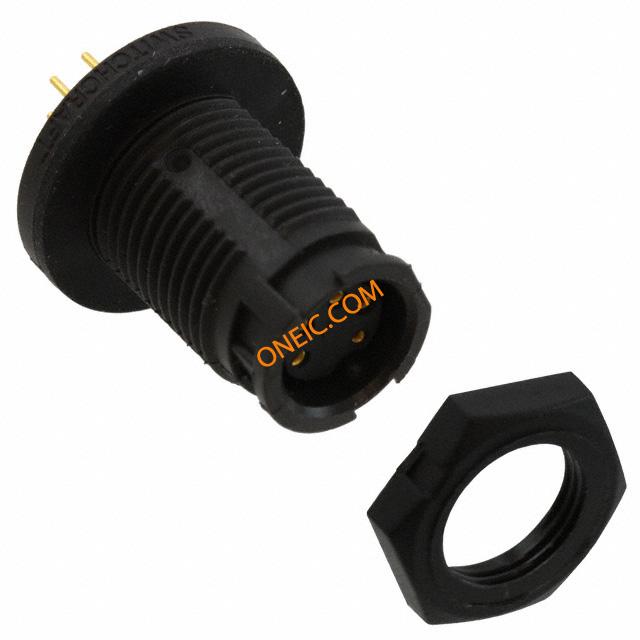

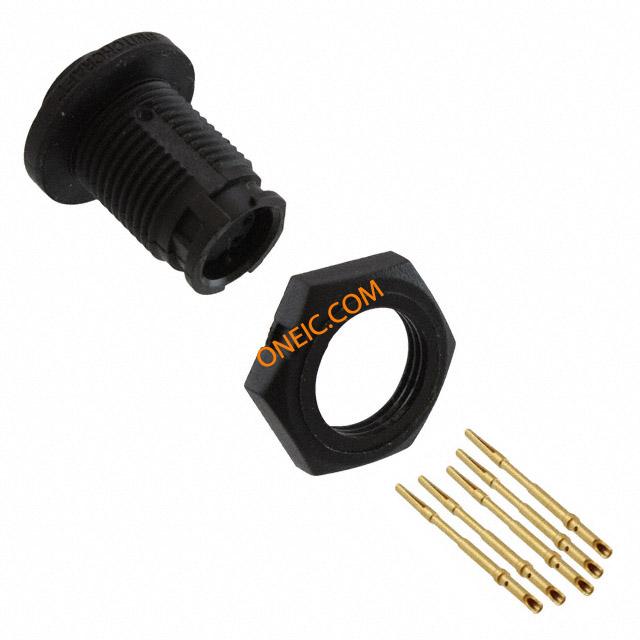

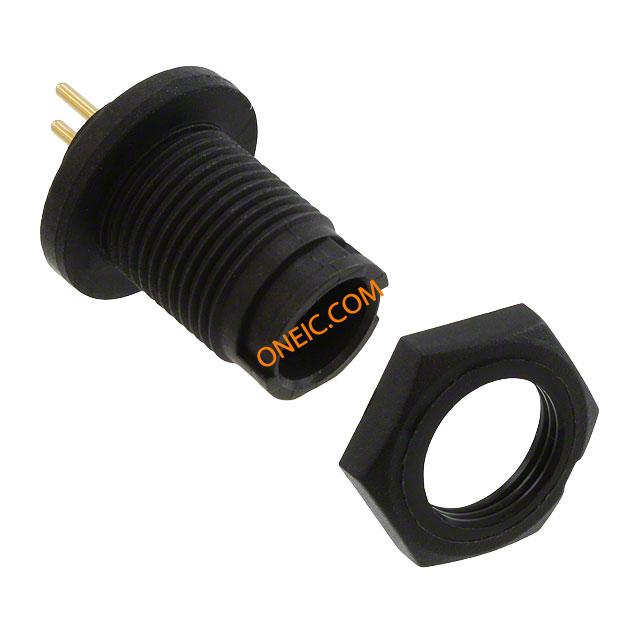

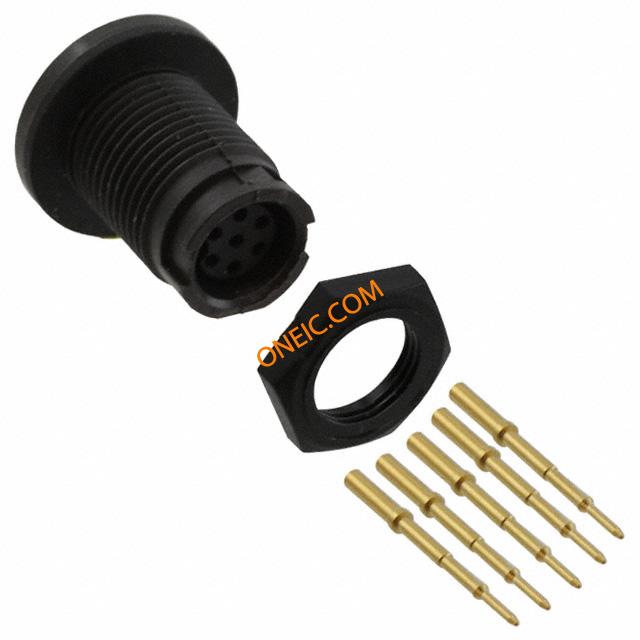

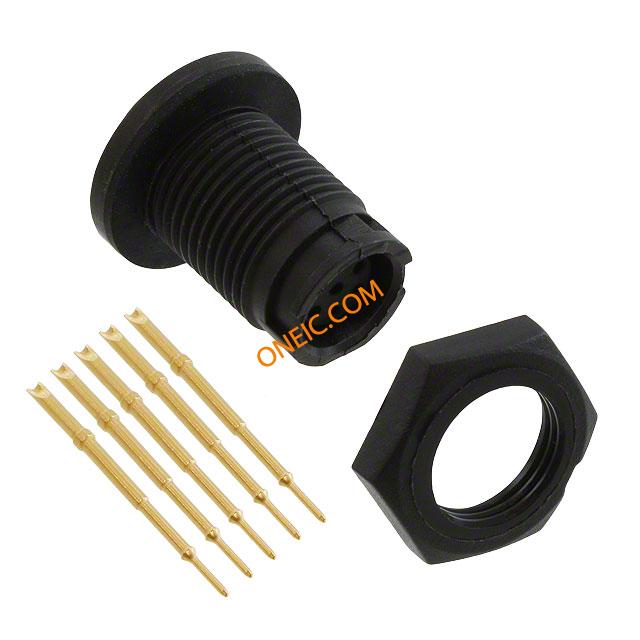

系列图片（12 张）
文档与媒体
常见问答
EN2P5 interconnect - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 其他名称 | 标准包装数量 | 额定电压 | 最大额定电流 | 重量 | 包装方式 | 方向 | 端接方式 | 安装类型 | 连接器类型 | 接触镀层 | 紧固类型 | 安装样式 | 锁定特性 | 包装数量 | 连接器 - 电缆 | 位数 | 外壳材料及表面处理 | 触点材料 - 镀层 | SPG | 适配器系列 | 单元数量 | 防护等级 | 工作温度 | 系列 | 输出配置 | 商标名 | RoHS | 外壳尺寸 | 导线线规 | 外壳样式 | 触头类型 | 外壳材料（壳体） | 主要材料 | 端接样式 | 第一触头极性 | 配接方向 | 触点数 | 类型 | 制造商全称 | 产品子类型 | 封装形式 | 产品特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CONN RCPT 5POS PANEL MOUNT PIN Standard Circular Connector 5-26 M S/C PANEL CON WEATHERTIGHT CONNECTORS 5-26MS/CPANELCONN,5contacts Socket; Connector: circular; EN2; male; PIN:5; external bayonet Switchcraft Inc. | 35 | 1: ¥49.504 | - | SC1656 | 25 | 125VAC/DC | 3 A | 7 g | Bulk | Keyed | Crimp or Solder Cup | Panel Mount, Bulkhead - Front Side Nut | Receptacle, Male Pins | Gold | Bayonet Lock | Panel | external bayonet | 1 | socket | 5 | Thermoplastic | gold plated | 1 | EN2 | 1 | IP68 - Dust Tight, Waterproof | -40°C ~ 85°C | EN2 | Panel Mount, Bulkhead - Front Side Nut | EN2 | RoHS Compliant | 26 | 26 | Plug | Pin | Plastic | CircularPlasticConnector | Crimp | Pin (Male) | Bayonet | 5 | PanelPlug | EN2Series | Connectors | - | - |
 CONN RCPT 5POS PANEL MOUNT PIN Socket; Connector: circular; EN2; male; PIN:5; external bayonet Switchcraft Inc. | 100 | 1: ¥54.536 | - | SC1613 | 25 | 125VAC/DC | 3A | 7 g | Bulk | Keyed | Crimp or Solder Cup | Panel Mount, Bulkhead - Front Side Nut | Receptacle, Male Pins | Gold | Bayonet Lock | for panel mounting | external bayonet | 1 | socket | 5 | Thermoplastic | gold plated | 1 | EN2 | 1 | IP68 - Dust Tight, Waterproof | -40°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | separately | Assembly Kit |
 CONN RCPT 5POS PANEL MOUNT PIN Socket; Connector: circular; EN2; male; PIN:5; external bayonet Switchcraft Inc. | 26 | 1: ¥46.376 | - | SC1612 | 25 | 125VAC/DC | 3A | 4.5 g | Bulk | Keyed | Solder | Panel Mount, Bulkhead - Front Side Nut | Receptacle, Male Pins | Gold | Bayonet Lock | for panel mounting | external bayonet | 1 | socket | 5 | Thermoplastic | gold plated | 1 | EN2 | 1 | IP68 - Dust Tight, Waterproof | -40°C ~ 85°C | EN2™ | Panel Mount, Bulkhead - Front Side Nut | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 CONN RCPT 5POS PANEL MOUNT PIN Socket; Connector: circular; EN2; male; PIN:5; external bayonet Switchcraft Inc. | 100 | 1: ¥61.064 | - | SC1669 | 25 | 125VAC/DC | 3A | 7 g | Bulk | Keyed | Solder | Panel Mount, Bulkhead - Front Side Nut | Receptacle, Male Pins | Gold | Bayonet Lock | for panel mounting | external bayonet | 1 | socket | 5 | Thermoplastic | gold plated | 1 | EN2 | 1 | IP68 - Dust Tight, Waterproof | -40°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | separately | Assembly Kit |
 CONN RCPT 5POS PANEL MOUNT SKT Standard Circular Connector 5-26 F S/C PANEL CON WEATHERTIGHT CONNECTORS 5-26FS/CPANELCONN,5contacts Socket; Connector: circular; EN2; female; PIN:5; external bayonet Switchcraft Inc. | 30 | 1: ¥57.80 | - | SC1677 | 25 | 125VAC/DC | 3 A | 4.9 g | Bulk | Keyed | Crimp or Solder Cup | Panel Mount, Bulkhead - Front Side Nut | Receptacle, Female Sockets | Gold | Bayonet Lock | Panel | external bayonet | 1 | socket | 5 | Thermoplastic | gold plated | 1 | EN2 | 1 | IP68 - Dust Tight, Waterproof | -40°C ~ 85°C | EN2 | Panel Mount, Bulkhead - Front Side Nut | EN2 | RoHS Compliant | 26 | 26 | Receptacle | Socket | Plastic | CircularPlasticConnector | Crimp | Socket (Female) | Bayonet | 5 | PanelSocket | EN2Series | Connectors | - | - |
 CONN RCPT 5POS PANEL MOUNT SKT Socket; Connector: circular; EN2; female; PIN:5; external bayonet Switchcraft Inc. | 12 | 1: ¥64.94 | - | SC1714 | 25 | 125VAC/DC | 3A | 4.55 g | Bulk | Keyed | Solder | Panel Mount, Bulkhead - Front Side Nut | Receptacle, Female Sockets | Gold | Bayonet Lock | for panel mounting | external bayonet | 1 | socket | 5 | Thermoplastic | gold plated | 1 | EN2 | 1 | IP68 - Dust Tight, Waterproof | -40°C ~ 85°C | EN2™ | Panel Mount, Bulkhead - Front Side Nut | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
