EN2P5M26
| 制造商 | |
| 描述 | CONN RCPT 5POS PANEL MOUNT PIN Standard Circular Connector 5-26 M S/C PANEL CON WEATHERTIGHT CONNECTORS 5-26MS/CPANELCONN,5contacts Socket; Connector: circular; EN2; male; PIN:5; external bayonet |
| 分类 |
商业参数
| 商标名 | EN2 | 其他名称 | SC1656 |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 125VAC/DC | 最大额定电流 | 3 A |
机械参数
| 重量 | 7 g | 包装方式 | Bulk |
| 外壳尺寸 | 26 | 导线线规 | 26 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp or Solder Cup | 触头类型 | Pin |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Plastic |
| 锁定特性 | external bayonet | 包装数量 | 1 |
| 主要材料 | CircularPlasticConnector | 连接器 - 电缆 | socket |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 配接方向 | Bayonet | 触点数 | 5 |
| 位数 | 5 | 外壳材料及表面处理 | Thermoplastic |
| 触点材料 - 镀层 | gold plated | ||
产品信息
| SPG | 1 | 类型 | PanelPlug |
| 系列 | EN2 | 制造商全称 | EN2Series |
| 产品子类型 | Connectors | 适配器系列 | EN2 |
| 单元数量 | 1 | 输出配置 | Panel Mount, Bulkhead - Front Side Nut |
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
16295
Conxall / Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap Receptacle DUST CAP MICRO-CON-X MICRO CON-X DUST CAP DUST CAP, RUBBER DUST CAP, MINI EN3 MICROCON-XRECEPCAP Switchcraft CON X 系列 IP67 防尘盖

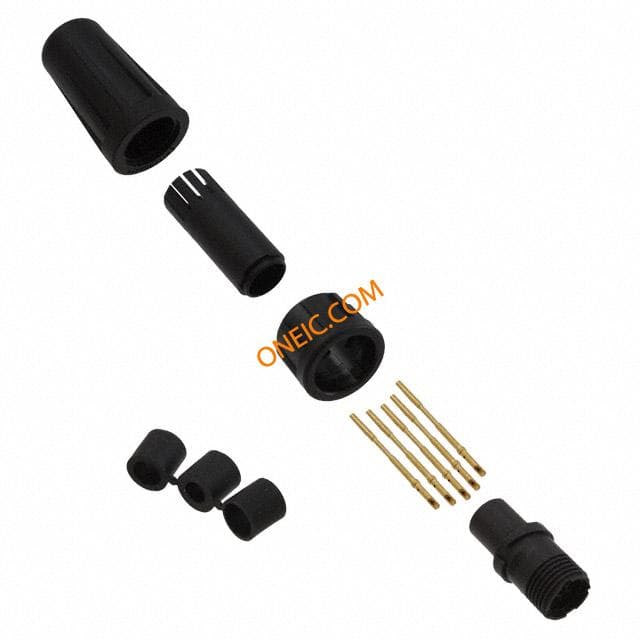

EN2C5F26G3
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet
EN2C5F26G2
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet
EN2C5F26G1
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet
EN2C5F26G3W
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet

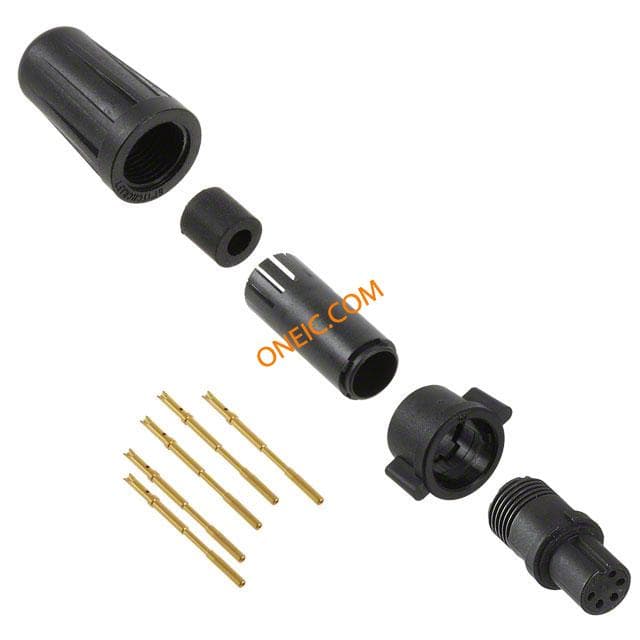

EN2C5F26G1W
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet
EN2C5F26DC
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Standard Circular Connector 5-26 F S/C CORD CON Conn Circular F 5 POS ST Cable Mount 5 Terminal 1 Port 5-26FS/CCORDCONN,5contacts Plug; Connector: circular; EN2; female; PIN:5; internal bayonet

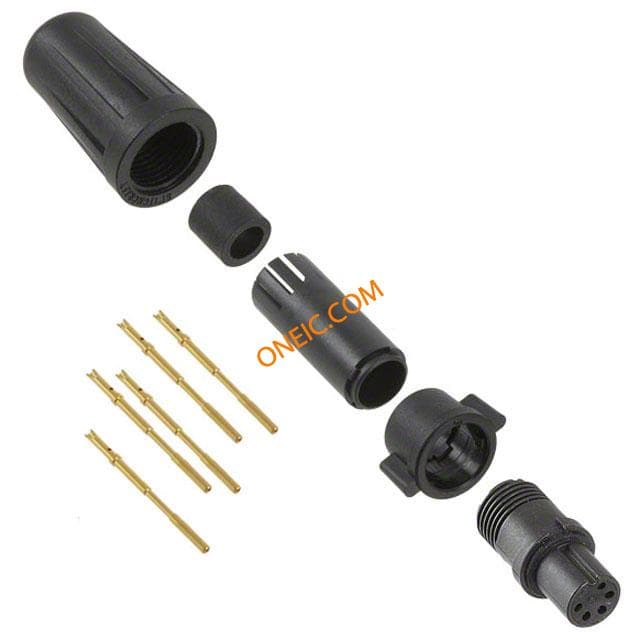

EN2C5F26G2W
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet

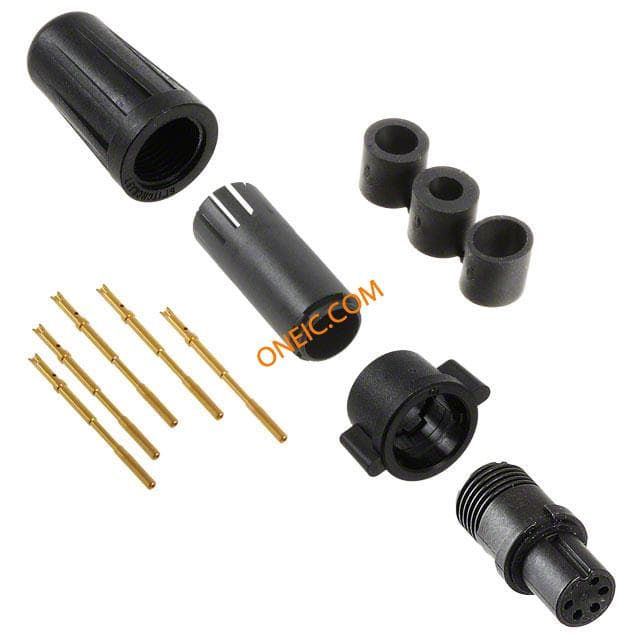

EN2C5F26DCW
