板载电流传感器 - 型号列表

共 4 个型号

制造商零件编号	库存	价格	标准包装数量	RoHS	系列	供电电压	工作温度	标准	IEC 61000-4-2	标准编号	符合性声明	精度	频率	指示器	隔离	迟滞	量程（°/s）	响应时间	建立时间	测试电流	额定电压	击穿电压	最小输入电压	交流开关电压	冲击放电电流 (8/20µs)	深度	宽度	长度	重量	连接器类型	深度（英寸）	安装导轨	宽度（英寸）	长度（英寸）	包装数量	类型	ETIM 6*0	功能	GTIN（EAN）	描述	配置	规格说明	固件版本	其他规格	距离	ET（伏秒积）	工作寿命	防护等级	温度系数	其他名称	输入类型	输入范围	输出类型	传感器类型	输出范围	信号调理	安装类型	标准包装规格	最大电压	开关电流	输入数量
7940016563 1 TX+4-20MA/4-20MA -EA SIGNAL CONVERTER/DISCONNECTOR weidmuller	5000	1: ¥2,590.936	1	Lead free / RoHS Compliant	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
8473010000 MCZ PT100/3 CLP 0...200C TS 35 -EA CONDITIONER SIGNAL ANALOG 4-20MA Temp transducer for Pt100,0 to 200 deg C weidmuller	10	2: ¥547.468	1	Compliant	*	9 → 30 V dc	+50°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	MCZ/PT100/3CLPTS35	Temperature	0 → 200 °C	Current	RTD	4 → 20 mA	Filter	DIN Rail	-	-	-	-

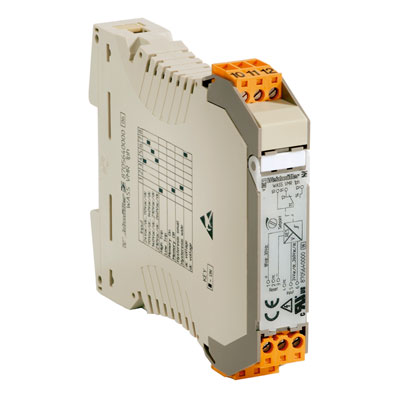

8705640000 VOLTAGE MONITORING Weidmuller	10	1: ¥1,264.324	1	Lead free / RoHS Compliant	*	from the measuring circuit	-10 °C...55 °C	DIN EN 50178	EN 55011, EN 61000-6, EN 61326	30-21-18-01	Declaration of Conformity	< 0.3 % of set range	27-37-18-01	LED green = OK / LED yellow/red = alarm status	3-way isolator	24...70 V AC, small = 5 V / large = 10 V, 70–260 VAC, small = 8 V ⁄ large = 16	0.5 mm²	< 300 ms	DIP switches: ON = 1,2,5,8 / OFF = 3,4,6,7	3 A	input/output, input/reset input, reset input/output: 300 V	2 kVeff	18 V DC	250 V	Input/output, input/reset input, reset input/output: 4 kV	112.4 mm	17.5 mm	96.5 mm	132 g	Screw connection	4.425 inch	TS 35	0.689 inch	3.799 inch	instruction sheet.pdf	WAS5 VMR 1ph	EC002046	Single-phase monitoring	4032248377084	Markers – refer to Accessories.	DIP switch, Potentiometer, Alarm status reset via reset input or button	Limit-value monitoring component for 1-phase AC / DC voltages with relay output and electrical isolationlimit-value monitoring component in 17.5 mm width for recording AC / DC voltages 24...70 V / 70...140 V / 140...210 V / 210...260 V. A relay contact (CO) with a switching capacity of 750 VA is available on the output side. Input ranges, high/low trip switching behaviour, hysteresis and memory behaviour can be configured using DIP switches. Switching threshold can be adjusted using the front-side potentiometer. The input circuit is used for the power supply. The memory function can be activated using an external reset input 18...30 VDC. The input/output/reset have 4 kV of electrical isolation.	WAVESERIES, Voltage monitoring, Screw connection	III	≥ 3 mm	EC001438	587 Years	2	≤ 250 ppm/K	-	-	-	-	-	-	-	-	1	260 V AC / DC	8 A	-

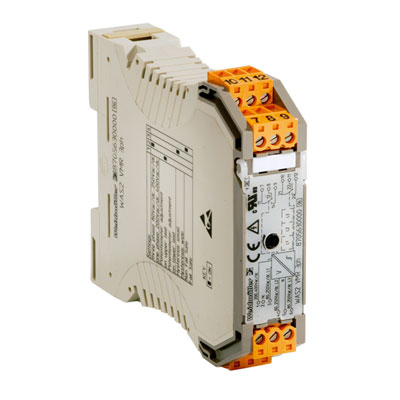

8705630000 VOLTAGE MONITORING Weidmuller	10	1: ¥1,709.996	1	Lead free / RoHS Compliant	*	from the measuring circuit	0 °C...50 °C	DIN EN 50178	EN 55011, EN 61000-6, EN 61326	30-21-18-01	Declaration of Conformity	< 0.3 % of set range	27-37-18-01	Green LED	3-way isolator	5% of final value	0.5 mm²	< 300 ms	DIP switches: ON = 1,2,4 / OFF = 3	3 A	600 V	4 kVeff / 1 min.	250 V AC	250 V	6 kV	112.4 mm	22.5 mm	96.5 mm	120.6 g	Screw connection	4.425 inch	TS 35	0.886 inch	3.799 inch	instruction sheet.pdf	WAS2 VMR 3ph	EC002046	1-/3-phase monitoring	4032248377060	Markers – refer to Accessories.	DIP switch, Potentiometer, Alarm status reset via reset input or button	Limit-value monitoring component for 1- /3- phase AC and DC voltageswith relay output and electrical isolationlimit-value monitoring component in 22.5 mm width for recording 1-phaseAC/DC voltages 200...400 V or 3-phase AC- voltages of 80...250 V.A relay contact (CO) with a switching capacity of 750 VAis available on the output side.Input ranges, high/low trip alarm, monitored voltage window andswitching behaviour (for working and quiescent currents) can be configured using DIP switchesSwitching threshold can be adjusted with front-side potentiometerPower is supplied via the measured circuit. The I/O circuits have 6 kV of electrical isolation.Add-on housing for TS35 rail mountingDimensions: L/W/H 96.5/ 17.5/ 112.4 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 3 phases 80 V...250 V AC 1 phase 200...400 V AC/DC switchableVoltage of measuring circuit max 400 VOutput Relay / COSwitching current 3 ASwitching voltage 6... 250 V AC / 6...60 V DCSwitching threshold via potentiometerVoltage window small 10 % AC / 20 % DC // large 12 % AC / 25 % DC adjustableHysteresis 5 % AC / 6 % DC of inputTemperature coefficient < 300 ppm KStep response time < 300 msAmbient temperature range 0 °C...+50 °C Secure isolation EN 50178, 2-way isolation up to 6 kVTest voltage 4 kVeff / 1 min. Input / OutputRated voltage 600 V AC/DC at overvoltage category III and pollution degree 2Approvals cULusType WA5 VMR 3ph	WAVESERIES, Voltage monitoring, 5, 250 V, Screw connection	III	Output circuit: 1.8 mm; input circuit, output circuit 1/output circuit 2: 3 mm; input/output: 5.5 mm	EC001438	493 Years	2	≤ 300 ppm/K	-	-	-	-	-	-	-	-	-	-	-	5
