Weidmüller Holding AG & Co. KG- 电源配件
03
电源配件 - 型号列表
共 3 个型号| 制造商零件编号 | 库存 | 价格 | 标准包装数量 | RoHS | 防护类型 | IEC标准 | 保护特性 | 认证机构标志 | 电压 | 频率 | 电阻 | 开关能量 | I/O低电平电压 | 击穿电压 | 绝缘电阻 | 噪声(10Hz至10kHz) | 最小输入电压 | 直流输入电压(最小) | 电感测试频率 | 最小磁芯截面积 (Amin) mm² | 深度 | 宽度 | 高度 | 重量 | 端接方式 | 深度(英寸) | 宽度(英寸) | 高度(英寸) | 包装数量 | 横截面形状 | 安装距离(如需要透镜) | 接触件表面处理 - 配合 | 5点接线端子数量 | 类型 | ETIM 6*0 | GTIN(EAN) | 附件类型 | 设备类型 | 电气寿命 | 工程数据 | 固件版本 | 适用产品/相关产品 | 动作时间 | ET(伏秒积) | 湿度范围 | 防护等级 | 工作温度 | 认证机构 | 认证 | 符合性声明 | 宽度/横截面 | 输入连接器 | 输出连接器 | 继电器类型 | 其他规格 | 峰值输出电流 | 反向恢复时间(trr) | 技术数据描述文本 | 效率 | 额定电压 | 输出电流 | 供电电压 | 输入偏置电流 | 连续输出功率 | 安装样式 | 端接样式 | 保护功能 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

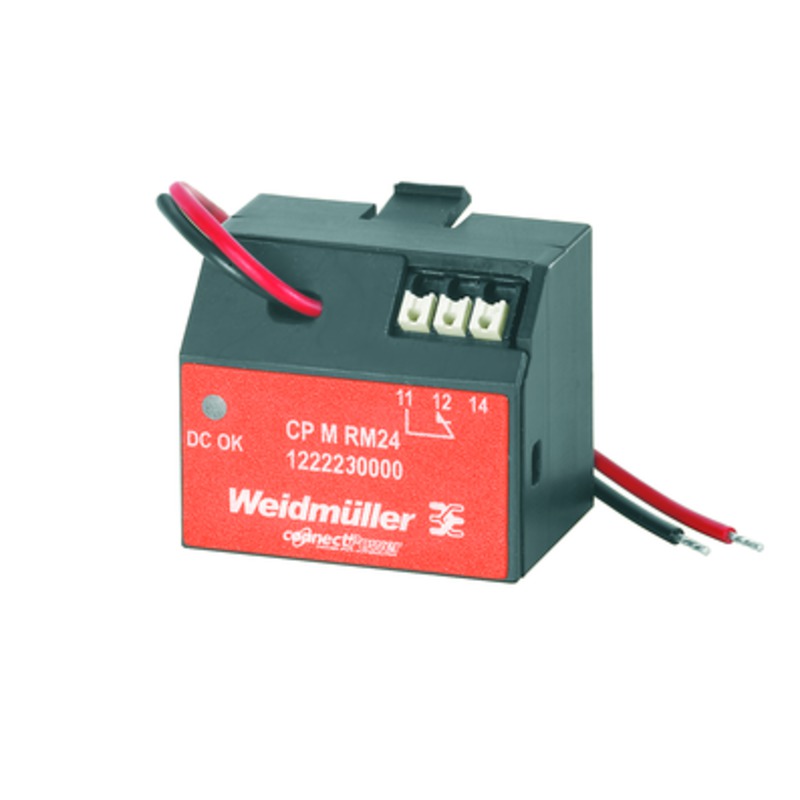

| 10 | 1: ¥309.332 | 1 | Lead free / RoHS Compliant | III, with no ground connection, for SELV | 27-37-16-01 | IP20 | 94767-10 | Yes | 27-04-92-01 | 15 g In all directions | 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail | SELV acc. to EN60950, PELV acc. to EN60204 | 0.5 kV Input/output housing | 1 g according to EN50178 | Class B | 24 V DC | 18…30 V DC | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) | 24 | 22 mm | 33 mm | 28 mm | 47 g | PUSH IN | 0.866 inch | 1.299 inch | 1.102 inch | Operating instructions | 16 | Plugged in to the front of the PRO-M power supply | Yes | 3 (CO contacts) | CP M RM24 | EC001437 | 4050118005615 | Diode Module | Acc. to EN50178 / VDE0160 | Acc. to EN60204 | EPLAN | Power supply, switch-mode power supply unit | PRO-M Power Supplies | > 500,000 h acc. to IEC 1709 (SN29500 | EC002850 | 5...95 %, no condensation | 2 | -40 °C...85 °C | E258476 | - | - | - | 10 cm cable with ferrules | PUSH IN direct insertion | Output voltage > 21.6 V / < 20.4 V | This article will no longer be available in the future. | - | - | - | - | - | - | - | - | - | - | - | - | |

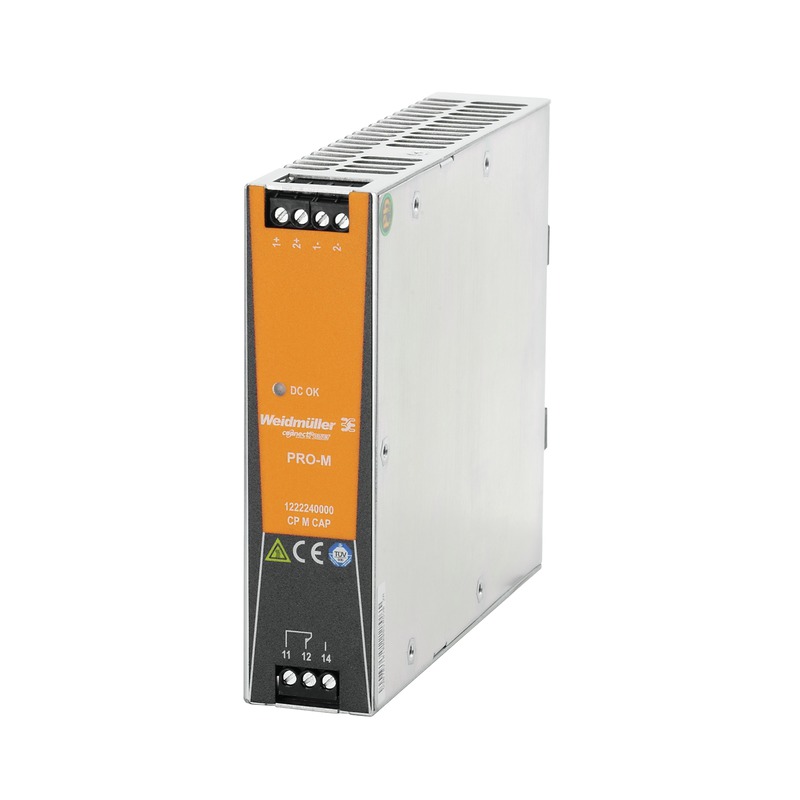

| 10 | 1: ¥737.12 | 1 | Lead free / RoHS Compliant | III, with no ground connection, for SELV | 27-04-92-01 | IP20 | 94767-10 | Yes | 27-04-92-01 | 15 g In all directions | 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail | SELV acc. to EN60950, PELV acc. to EN60204 | 0.5 kV Input/output housing | 1 g according to EN50178 | Class B | 24 V DC | 18…30 V DC | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) | 26 | 150 mm | 34 mm | 130 mm | 733 g | Screw connection | 5.905 inch | 1.339 inch | 5.118 inch | Operating instructions | 12 | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. | Yes | 4 (++--) | CP M CAP | EC002850 | 4050118005523 | Diode Module | Acc. to EN50178 / VDE0160 | Acc. to EN60204 | EPLAN | Power supply, switch-mode power supply unit | PRO-M Power Supplies | > 500,000 h acc. to IEC 1709 (SN29500 | EC002850 | 5...95 %, no condensation | 2 | -40 °C...85 °C | - | E258476 | DE_PA5200_160512_001.pdf | 4 mm² | - | - | - | - | Depending on the load (typically 40 A for 1 ms) | Approx. 1 sec. | For low-impedance connections we recommend 2.5 mm². | - | - | - | - | - | - | - | - | - | |

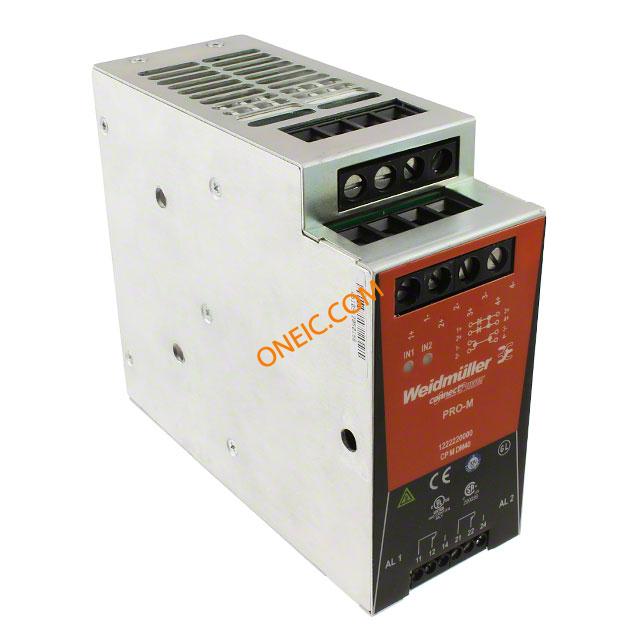

| 10 | 1: ¥1,170.688 | 1 | Lead free / RoHS Compliant | III, with no ground connection, for SELV | 27-37-10-10 | IP20 | 94767-10 | Yes, In both inputs | 27-04-92-01 | 15 g In all directions | 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail | SELV acc. to EN60950, PELV acc. to EN60204 | 0.5 kV Input/output housing | 1 g according to EN50178 | Class B | 24 V DC | 18…30 V DC | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted) | 22 | 150 mm | 60 mm | 130 mm | 867 g | Screw connection | 5.905 inch | 2.362 inch | 5.118 inch | Operating instructions | 6 | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. | Yes | 4 (1+, 2+, 1-, 2-) | CP M DM40 | EC000683 | 4050118005455 | Redundancy Module | Acc. to EN50178 / VDE0160 | Acc. to EN60204 | EPLAN | Power supply, switch-mode power supply unit | PRO-M Power Supplies | > 500,000 h acc. to IEC 1709 (SN29500 | EC002850 | 5...95 %, no condensation | 2 | -40 °C...85 °C | CCSAus、CE、CPT、cULus 认可、EAC、EMC1、GL、SEMIF47、UL 认证 | E258476 | DE_PA5200_160512_001.pdf | 10 mm² | - | - | - | - | - | - | - | > 97% @ 24 V input voltage | Input voltage - 0.7 V | 48 A | 18 → 30V 直流 | 2 x 20 A or 1 x 40 A | 48 A @ 45 °C, 45 A @ 55 °C, 30 A @ 70 °C | DIN 卡轨安装 | 螺钉 | 电涌保护 |
第 1 / 1 页
