Schaffner Holding AG- 压接与焊接端子/接头
压接与焊接端子/接头 - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 交货时间 | 子类别 | 标准包装数量 | RoHS | 零件状态 | 认证机构 | 电流 | 滤波器类型 | 耐压额定值 | 最大额定电流 | 工作频率 | 典型相位噪声 (dBc/Hz) | 安装类型 | 安装样式 | 应用 | 制造商全称 | 配置 | 工作温度 | 行业别名 | 额定电压 | 类型 | 产品 | 产品类别 | 工厂包装数量 | 电感量 | 漏电流 | 系列 | 电路类型 | 适用产品/相关产品 | 螺纹尺寸 | 电容 | 初始电阻（最小） | 直径 | 封装形式 | 尺寸/外形 | 频率 | 电阻 | 欧盟RoHS | 最小输入电压 | 深度 | 高度 | 端接方式 | 总长度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EMI Feedthrough Filters 10A TERMINAL 0.5Nm FEED-THROUGH FILTERS FILTER FEEDTHROUGH AC 10A Y2 SINGLEPHASEBULKHEAD10AACFEEDTHROUGHFILTER,M3TERMINAL Schaffner | 32 | 1: ¥490.484 | 365 Days | Power Line Filter | 10 | Lead free / RoHS Compliant | 297-919 | ENEC, UL | 10A | Single Phase | 3000VDC | 10 A | 50 ~ 60Hz | 1 | Chassis | Bulkhead | Medical | FN761XSeries | Single Stage | -40°C ~ 100°C | FN 7612-10-M3, FN 7612-10/M3 | 300 V | AC Feedthrough Capacitor | Bolt In Filters | EMI Feedthrough Filters | 1 | 70nH | 8.86mA | FN761 | Y2 | FN7612-10-M3 | M3 | 47 nF | 1.52 mOhms | 20 mm | 99 mm | 20 mm Dia. x 99 mm L | - | - | - | - | - | - | - | - |
EMI Feedthrough Filters FEEDTHROUGH FILTER 10A AC M3 TERMINAL Power Line Filter 50Hz/60Hz 10A 300VAC Threaded Stud Thru-Hole FILTER FEEDTHROUGH AC 10A Y2 SINGLEPHASEBULKHEAD10AACFEEDTHROUGHFILTER,M3TERMINAL Schaffner | 128 | 1: ¥668.304 | 365 Days | Power Line Filter | 10 | Lead free / RoHS Compliant | 297-963 | ENEC, UL | 10A | Single Phase | 3000VDC | 10 A | 50 ~ 60Hz | 1 | Through Hole | Bulkhead | Medical | FN761XSeries | Single Stage | -40°C ~ 100°C | FN 7611-10-M3 | 300 V | AC Feedthrough Capacitor | Bolt In Filters | EMI Feedthrough Filters | 1 | 70nH | 1.89mA | FN761 | Y2 | FN7611-10-M3 | M3 | 10 nF | 1.2 mOhms | 20 mm | 66 mm | 20 mm Dia. x 66 mm L | 50|60 | - | Compliant | 300VAC | 98 | 20 | Threaded Stud | 20 |
 EMI Feedthrough Filters 250A FEED-THROUGH FILTERS FILTER FEEDTHROUGH AC 250A Y2 SINGLEPHASEBULKHEAD250AACFEEDTHROUGHFILTER,M12TERMINAL Schaffner | 10 | 1: ¥921.536 | 84 Days | Power Line Filter | 5 | Lead free / RoHS Compliant | 297-991 | ENEC, UL | 250A | Single Phase | 3000VDC | 250 A | 50 ~ 60Hz | 1 | Chassis | Bulkhead | Medical | FN761XSeries | Single Stage | -40°C ~ 100°C | FN 7612-250/M12 | 250 VAC, 300 VAC | AC Feedthrough Capacitor | Bolt In Filters | EMI Feedthrough Filters | 1 | - | - | FN761 | Y2 | - | - | 0.47 uF | 0.23 mOhms | - | - | - | - | - | - | - | - | - | - | - |

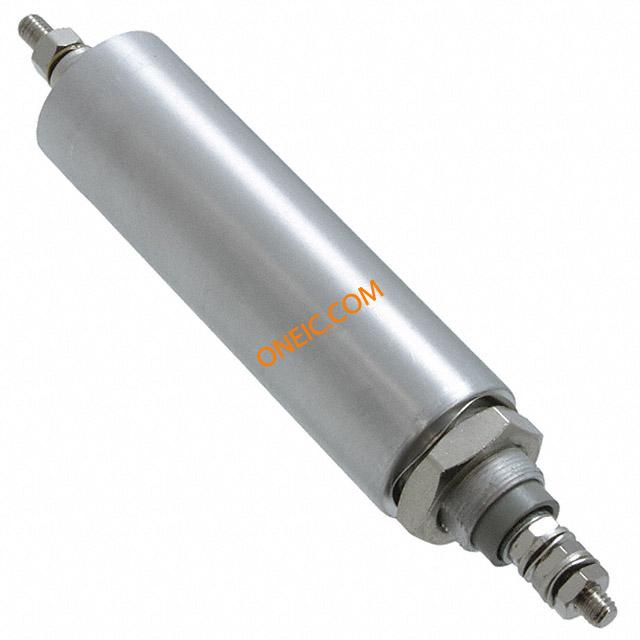

 EMI Feedthrough Filters 63A TERMINAL 2.5Nm FEED-THROUGH FILTERS FILTER FEEDTHROUGH AC 63A Y2 SINGLEPHASEBULKHEAD63AACFEEDTHROUGHFILTER,M6TERMINAL Schaffner | 10 | 1: ¥1,570.664 | 365 Days | Power Line Filter | 10 | Lead free / RoHS Compliant | 297-850 | ENEC, UL | 63A | Single Phase | 3000VDC | 60A | 50 ~ 60Hz | 1 | Chassis | Feedthrough | Medical | FN761XSeries | Single Stage | -40°C ~ 100°C | FN 7611-63-M6 | 250VAC | Filter | - | - | - | 124nH | 28.3mA | - | - | FN7611-63-M6 | - | - | - | - | - | - | 50/60Hz | 0.53Megaohms | - | - | - | - | - | - |
EMI Feedthrough Filters 32A TERMINAL 1.2Nm FEED-THROUGH FILTERS FILTER FEEDTHROUGH AC 32A Y2 SINGLEPHASEBULKHEAD32AACFEEDTHROUGHFILTER,M4TERMINAL Schaffner | 67 | 1: ¥1,123.564 | 365 Days | Power Line Filter | 10 | Lead free / RoHS Compliant | 297-563 | ENEC, UL | 32A | Single Phase | 3000VDC | 32 A | 50 ~ 60Hz | 1 | Chassis | Feedthrough | Medical | FN761XSeries | Single Stage | -40°C ~ 100°C | FN 7611-32-M4 | 300 V | AC Feedthrough Capacitor | Bolt In Filters | EMI Feedthrough Filters | 1 | 70nH | 18.85mA | FN761 | Y2 | FN7611-32-M4 | M4 | 22 nF | 650 uOhms | 25 mm | 69 mm | 25 mm Dia. x 69 mm L | 50/60Hz | 0.92Megaohms | - | - | - | - | - | - |
EMI Feedthrough Filters 32A TERMINAL 1.2Nm FEED-THROUGH FILTERS FILTER FEEDTHROUGH AC 32A Y2 SINGLEPHASEBULKHEAD32AACFEEDTHROUGHFILTER,M4TERMINAL Schaffner | 46 | 1: ¥617.644 | 365 Days | Power Line Filter | 10 | Lead free / RoHS Compliant | 297-989 | ENEC, UL | 32A | Single Phase | 3000VDC | 32A | 50 ~ 60Hz | 1 | Chassis | Bulkhead | Medical | FN761XSeries | Single Stage | -40°C ~ 100°C | FN 7612-32-M4, FN 7612-32/M4 | 250VAC | AC Feedthrough Capacitor | Bolt In Filters | EMI Feedthrough Filters | 1 | 70nH | 18.85mA | FN761 | Y2 | FN7612-32-M4 | M4 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 EMI Feedthrough Filters 16A TERMINAL 1.2Nm FEED-THROUGH FILTERS FILTER FEEDTHROUGH AC 16A Y2 SINGLEPHASEBULKHEAD16AACFEEDTHROUGHFILTER,M4TERMINAL Schaffner | 10 | 1: ¥172.516 | 365 Days | Power Line Filter | 10 | Lead free / RoHS Compliant | 297-859 | ENEC, UL | 16A | Single Phase | 3000VDC | 16A | 50 ~ 60Hz | 1 | Chassis | Bulkhead | Medical | FN761XSeries | Single Stage | -40°C ~ 100°C | FN 7610-16/M4 | - | AC Feedthrough Capacitor | Bolt In Filters | EMI Feedthrough Filters | 1 | - | - | FN761 | Y2 | FN7610-16-M4 | M4 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 EMI Feedthrough Filters 63A FEED-THROUGH FILTERS FILTER FEEDTHROUGH AC 63A Y2 SINGLEPHASEBULKHEAD63AACFEEDTHROUGHFILTER,M6TERMINAL Schaffner | 10 | 1: ¥802.604 | 84 Days | Not Specified | 10 | Lead free / RoHS Compliant | 297-615 | ENEC, UL | 63A | Single Phase | 3000VDC | 63A | 50 ~ 60Hz | 1 | Chassis | Bulkhead | Medical | FN761XSeries | Single Stage | -40°C ~ 100°C | - | 250VAC | - | - | - | - | 186nH | 28.3mA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 EMI Feedthrough Filters 63A TERMINAL 2.5Nm FEED-THROUGH FILTERS FILTER FEEDTHROUGH AC 63A Y2 SINGLEPHASEBULKHEAD63AACFEEDTHROUGHFILTER,M6TERMINAL Schaffner | 10 | 1: ¥1,069.64 | 84 Days | Power Line Filter | 10 | Lead free / RoHS Compliant | 297-958 | ENEC, UL | 63A | Single Phase | 3000VDC | 63A | 50 ~ 60Hz | 1 | Chassis | Bulkhead | Medical | FN761XSeries | Single Stage | -40°C ~ 100°C | FN 7610-63/M6 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
