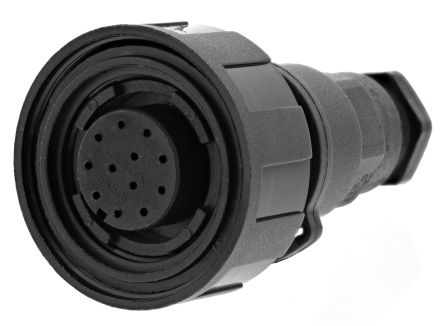

图片仅供参考,产品以实物为准
| 规格书 |
 Standard Power Buccaneer |
| Rohs | Lead free / RoHS Compliant |
| 标准包装 | 25 |
| Connector 型 | Plug for Female Contacts |
| 位置数 | 12 |
| 外壳尺寸 - 插件 | - |
| Shell Size, MIL | - |
| Contact 型 | Crimp and Solder |
| Contact 大小 | - |
| 安装类型 | Free Hanging (In-Line) |
| Fastening 型 | Threaded |
| 取向 | Keyed |
| Shell Material, Finish | Polyamide, Glass Filled |
| 入口保护 | IP68 - Dust Tight, Waterproof |
| 特点 | - |
| 包装材料 | Bulk |
| 注意 | Contacts Not Provided |
| 封装 | Bulk |
| 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 定位 | Keyed |
| 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Female Contacts |
| 外壳材料，表面处理 | Polyamide, Glass Filled |
| 注 | Contacts Not Provided |
| 紧固型 | Threaded |
| 标准包装 | 25 |
| 触点类型 | Crimp and Solder Cup |
| 位置数 | 12 |
| 身体上的取向 | Straight |
| 联系人性别 | Female |
| 触点材料 | Copper Alloy |
| 触点电镀 | Gold over Nickel |
| 额定电流 | 5A |
| 最高工作温度 | +70°C |
| 最低工作温度 | -20°C |
| 触点数 | 12 |
| 系列 | Buccaneer |
| 端接方式 | Crimp, Solder |
| 额定电压 | 50 V ac/dc |
| RoHS指令 | Compliant |
| 工厂包装数量 | 25 |
| 产品种类 | Standard Circular Connector |
| 端接类型 | Crimp / Solder |
| 安装风格 | Free Hanging |
| 位置/触点数 | 12 |
| 外壳类型 | Receptacle |
| 产品类型 | Connectors |
| RoHS | RoHS Compliant |
| Connector Body Material | :Nylon (Polyamide) |
| 性别 | :Receptacle |
| Connector Mounting | :Cable |
| Connector Shell Size | :- |
| 插入安排 | :- |
| No. of Positions | :12 |
| SVHC | :No SVHC (19-Dec-2012) |
| Approval Bodies | :CSA, UL, VDE |
| Cable Diameter Max | :8.1mm |
| Cable Diameter Min | :6mm |
| 颜色 | :Black |
| 接触电阻最大 | :5mohm |
| 可燃性等级 | :UL94V-0 |
| IP / NEMA Rating | :IP68 |
| 绝缘电阻 | :100Mohm |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| Voltage Rating V AC | :50V |
| Voltage Rating V DC | :50V |
| 工作电压 | :50V |
| Weight (kg) | 0.032 |
| Tariff No. | 85369010 |
| AgencyApprovals | ULRecognized/CSA/VDE |
| Angle | Straight |
| ContactPlating | Gold |
| ContactType | Socket |
| Current,Rating | 5A |
| Diameter,Cable | 6-8mm |
| FlammabilityRating | UL94-HB |
| HousingType | Plastic |
| IPRating | IP68 |
| Material,Dielectric | Polyamide |
| Material,Housing | GlassFilledPolyamide |
| MatingType | Threaded |
| NumberofContacts | 12 |
| PrimaryType | Sealed |
| SpecialFeatures | ScrewLocking |
| 端子 | Crimp/Solder |
| 类型 | CableSocket |
| Voltage,Rating | 50VAC/VDC |
| Wire,AWG | 22-26 |
| mating | PX0708/P/12 PX0707/P/12 PX0795/P PX0797/P PX0798/P PX0796/P More> |
| associated | SA3347 PX0734 12023 PX0733 12237 SA3347/1. More> |
