图片仅供参考,产品以实物为准
| 规格书 |

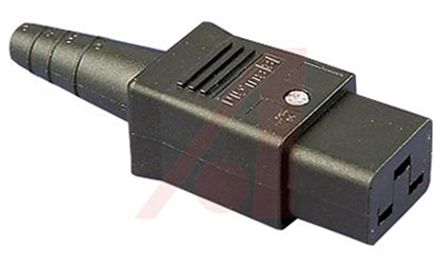

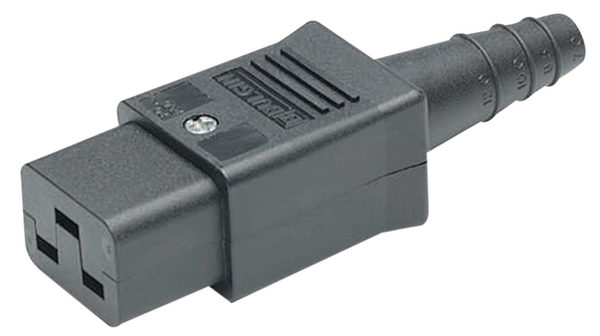

 PX0596,0598,0599 IEC Connector |
| 标准包装 | 50 |
| Connector 风格 | IEC 320-C19 |
| Connector 型 | Plug, Female Sockets |
| 位置数 | 3 |
| 当前 | 16A |
| 电压 | 250V |
| 安装类型 | Free Hanging (In-Line) |
| 终止 风格 | Screw |
| 保险盒 | Drawer Not Required |
| 特点 | - |
| 动态目录 | Power Entry Plugs - Bulgin###/catalog/en/partgroup/power-entry-plugs-bulgin/23139?mpart=PX0599&vendor=708&WT.z_ref_page_type=Part%20Search&WT.z_ref_page_sub_type=Part%20Detail%20Page&WT.z_ref_page_id=0;;其他的名称； |
| 安装类型 | Free Hanging (In-Line) |
| 端接类型 | Screw |
| 连接器类型 | Plug, Female Sockets |
| 位置数 | 3 |
| 电流 | 16A |
| 保险丝盒 | Drawer Not Required |
| 电压 | 250V |
| 标准包装 | 50 |
| 连接器类型 | IEC 320-C19 |
| 其他名称 | 708-1349 |
| 工厂包装数量 | 50 |
| 产品 | Outlets |
| 产品种类 | AC Power Entry Modules |
| 额定电流 | 16 A |
| 外壳材料 | Nylon |
| 额定电压 | 250 V |
| 工作温度范围 | - 40 C to + 70 C |
| 安装风格 | Cable |
| 开关功能 | Not Switched |
| 可燃性等级 | UL 94 V-0 |
| 过滤 | No |
| 融合 | No |
| RoHS | RoHS Compliant |
| 系列 | :- |
| 性别 | :Receptacle |
| Connector Mounting | :Cable |
| 接触端子 | :Screw |
| SVHC | :No SVHC (19-Dec-2012) |
| Approval Category | :CSA, IMQ Pending, UL, VDE |
| 房屋类型 | :Nylon UL94V-0 |
| 绝缘电阻 | :5Mohm |
| No. of Outlets | :1 |
| No. of Poles | :3 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-40°C |
| 端接方式 | :Screw |
| Voltage Rating V AC | :250V |
| 工作电压 | :250V |
| Weight (kg) | 0.038 |
| Tariff No. | 85369010 |
| RoHS指令 | RoHS Compliant Part |
| Electrical mounting | screw terminal |
| Mechanical mounting | for cable |
| Flammability rating | UL94V-0 |
| 额定电流 | 16A |
| Multiplicity | 1 |
| Connector variant | C19 (J) |
| Connector type | female |
| Spatial orientation | straight |
| 连接器 | plug |
| Gross weight | 0.04 kg |
| Operating temperature | -40...70°C |
| 额定电压 | 250V AC |
| Collective package [pcs] | 100 |
| spg | 100 |
| associated | 4795.0000 SL-19 ROJ SL-19 + QP026-1 SL-19 + QP026-3 SL-19 + SL-6-1 PX0596/63 More> |
