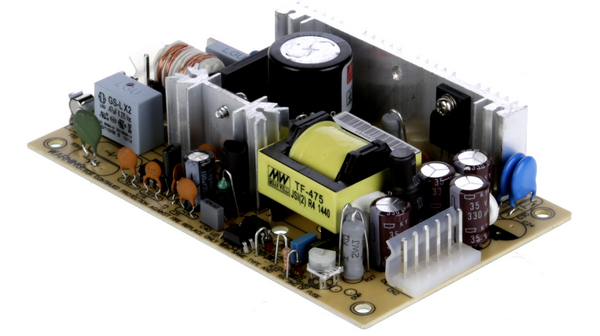

图片仅供参考,产品以实物为准
| 规格书 |
 |
| Status | Active |
| 输出数 | 1 |
| 产品 | Switching Supplies |
| 产品种类 | Linear and Switching Power Supplies |
| 外形尺寸 | 5 in L x 3 in W |
| 工厂包装数量 | 72 |
| 额定输出功率 | 46 W |
| 输出电压通道1 | 24 VDC |
| 身高 | 1.1 in |
| 安装风格 | Chassis |
| 宽度 | 3 in |
| 长度 | 5 in |
| 输入电压 | 90 VAC to 264 VAC, 127 VDC to 370 VDC |
| RoHS | RoHS Compliant |
| 开放式/封闭式 | Open Frame |
| 输出电流通道1 | 1.9 A |
| Brand/Series | PS Series |
| 配置 | Open Frame |
| Current, Output | 1.9 A |
| 安装类型 | Panel |
| 操作 | Switching |
| 输出 | 24VDC@1.9A |
| Power, Output | 45.6 W |
| Primary Type | AC-DC |
| 特殊功能 | 2-Years Warranty, 100% Full Load Burn-In Test, Short Circuit and Overload and Over Voltage Protections |
| 类型 | Commercial |
| Voltage, Input | 90-264 VAC |
| Voltage, Output | 24 VDC |
| RoHS指令 | RoHS Compliant Part |
| Number of outputs | 1 |
| Body dimensions | 127 x 76.2 x 28mm |
| 输出电流 | 1.9A |
| 功率 | 45.6W |
| Power supply construction | open |
| Multiplicity | 1 |
| Electrical connection | plug with 3,96mm pitch, plug with 5,08mm pitch |
| 重量 | 190g |
| Gross weight | 0.18 kg |
| Power supply/converter features | rated parameters obtained at full load |
| Operating temperature | -10...60°C |
| 输出电压 | 24V DC |
| 电源电压 | 127...370V DC, 90...264V AC |
| 安装 | for building in |
| Pwr sup unit type | pulse |
| 保护功能 | overload, overheating, voltage growth, short-circuit |
| Collective package [pcs] | 2 |
| spg | 2 |
| Max Power | 45 Wattswith airflow |
| Output(s) | 24.0V @ 1.90A |
| 系列 | MEAN WELLPS-45 |
| Vout Range | 3.3 ~ 48 |
| 效率 | 78.00% |
| Dimensions (Inches) | 5.00 x 3.00 x 1.10" |
| # of Outputs | 1-3 |
| In Stock | 584 |
| Convection | 45 Wattsconvection cooled |
| Dimensions L x W x H | 127 x 76 x 28 mm |
| Output voltage 1 | 24 VDC |
| Input frequency | 47...63 Hz |
| Output current 1 | 1.9 A |
| AC input voltage | 85...264 VAC |
