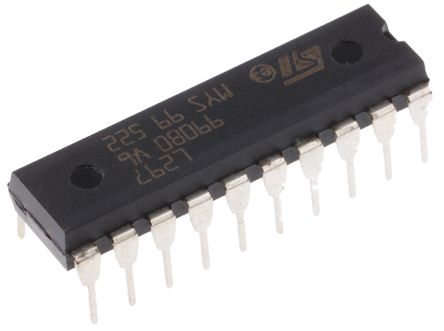

图片仅供参考,产品以实物为准
| 规格书 |
 L297 |
| 文档 |
L297 View All Specifications |
| Rohs | Lead free / RoHS Compliant |
| 其他相关文件 | L297 View All Specifications |
| 标准包装 | 20 |
| 应用 | Stepper Motor Controller |
| 评估工具 | - |
| 输出数 | 4 |
| Current - 输出功率 | - |
| - 负载电压 | - |
| - 电源电压 | 4.75 V ~ 7 V |
| 操作温度 | -40°C ~ 150°C |
| 安装类型 | Through Hole |
| 包/盒 | 20-DIP (0.300, 7.62mm) |
| 供应商器件封装 | 20-PDIP |
| 包装材料 | Tube |
| 包装 | 20PDIP |
| 类型 | Stepper Motor Controller |
| 工作电源电压 | 5 V |
| 工作温度 | -40 to 150 °C |
| 安装 | Through Hole |
| 标准包装 | Rail / Tube |
| 典型工作电源电压 | 5 |
| 标准包装名称 | PDIP |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 150 |
| 最低工作电源电压 | 4.75 |
| 封装 | Tube |
| 最大工作电源电压 | 7 |
| 供应商封装形式 | PDIP |
| 最低工作温度 | -40 |
| 引脚数 | 20 |
| 铅形状 | Through Hole |
| 匹配代码 | L297/1 |
| 单位包 | 20 |
| 标准的提前期 | 12 weeks |
| 最小起订量 | 200 |
| 无铅Defin | RoHS-conform |
| U（最大） | 10V |
| 汽车 | NO |
| 功能 | Controller - Commutation, Direction Management |
| 安装类型 | Through Hole |
| 应用范围 | General Purpose |
| 供应商设备封装 | 20-DIP |
| 电机型号 - 步进 | Bipolar |
| 电压 - 电源 | 4.75 V ~ 7 V |
| 封装/外壳 | 20-DIP (0.300", 7.62mm) |
| 接口 | Parallel |
| 输出配置 | Pre-Driver |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 20 |
| 产品 | Stepper Motor Controllers / Drivers |
| 产品种类 | Motor / Motion / Ignition Controllers & Drivers |
| 安装风格 | Through Hole |
| 输出电压 | 0.8 V |
| 电源电流 | 80 mA |
| RoHS | RoHS Compliant |
| 包装类型 | PDIP |
| 工作温度（最大） | 150C |
| 工作温度（最小值） | -40C |
| 工作温度分类 | Automotive |
| 弧度硬化 | No |
| 工作电源电压（典型值） | 5 V |
| 工作电源电压（最小值） | 4.75 V |
| 工作电源电压（最大值） | 7 V |
| Motor Type | :Stepper |
| No. of Outputs | :2 |
| 输出电流 | :10mA |
| Driver Case Style | :DIP |
| No. of Pins | :20 |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :7V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :297 |
| 控制器类型 | :Motor |
| Device Marking | :L297/1 |
| Drive Configuration | :4 Phase |
| IC Generic Number | :297 |
| Logic Function Number | :297 |
| 工作温度范围 | :-40°C to +150°C |
| Supply Voltage Range | :4.75V to 7V |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.002 |
| Tariff No. | 85423290 |
| Current,QuiescentSupply | 50mA(Typ.) |
| NumberofPins | 20 |
| PackageType | DIP20 |
| PowerDissipation | 1W |
| Temperature,Junction,Maximum | 150°C |
| Temperature,Storage | -40to+150°C |
| Voltage,Input | 0.6V(Max.) |
| Voltage,Supply | 4.75to7V |
| 案例 | DIP20 |
| Multiplicity | 1 |
| Gross weight | 2.5 g |
| 应用 | motors |
| Operating temperature | -40...150°C |
| 电源电压 | 4.75...7V DC |
| Integrated circuit type | driver |
| Kind of integrated circuit | PWM controller |
| Collective package [pcs] | 1000 |
| spg | 1000 |
| associated | HT4241007 2227MC-20-03-07-F1 DIL 20 SMD M 744727 2227-20-03-07 1399075-M 2METRE More> |
