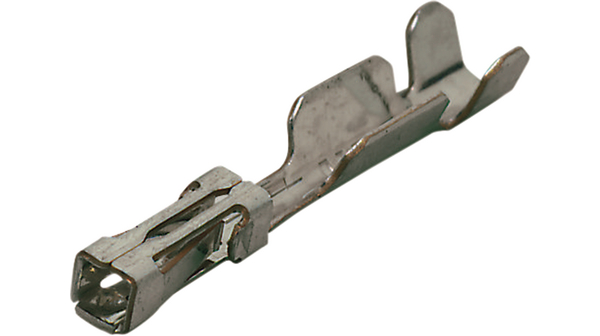

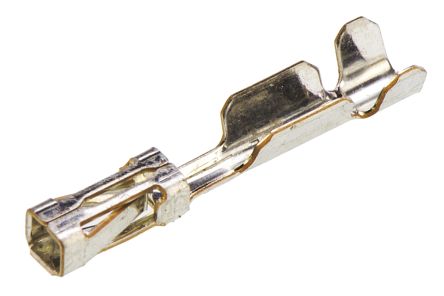

图片仅供参考,产品以实物为准
| 规格书 |
 87523 CONTACT, MOD IV CRIMP SNAP-IN RECEPTACLE 3D PDF AMPMODU_INTERCONNECTION_SYSTEM_SECTION5_CONT 1-1773720-9_AMPMODU_MOD_IV_V_QRG AMPMODU MOD IV, IV1/2, and V Receptacles and Housings PRODUCT SPECIFICATION INTERCONNECTION SYSTEM, AMPMODU MOD IV, WIRE TO BOARD, STANDARD PRESSURE GOLD CONTACTS PRODUCT SPECIFICATION INTERCONNECTION SYSTEM, AMPMODU MOD IV, WIRE TO BOARD, STANDARD PRESSURE GOLD CONTACTS PRODUCT SPECIFICATION INTERCONNECTION SYSTEM, AMPMODU MOD IV, WIRE TO BOARD, STANDARD PRESSURE GOLD CONTACTS MD_87523-6_03072013512_dmtec |
| 文档 |
87523-6 Statement of Compliance RoHS 2 Statement 87523-6.pdf |
| RoHS信息 | 87523-6 Statement of 合规性 |
| 三维模型 | 87523-6.pdf |
| 标准包装 | 1,000 |
| 型 | - |
| 引脚或插口 | Socket |
| 接触终止 | Crimp |
| 线规 | 20-24 AWG |
| 触点表面涂层 | Tin |
| 触点表面涂层 厚度 | 50µin (1.27µm) |
| 包装材料 | Bulk |
| 动态目录 | AMPMODU Mod IV###/catalog/en/partgroup/ampmodu-mod-iv/9172?mpart=87523-6&vendor=17&WT.z_ref_page_type=Part%20Search&WT.z_ref_page_sub_type=Part%20Detail%20Page&WT.z_ref_page_id=0 |
| 连接器类型 | Connector Headers and PCB Receptacles |
| 触点类型 | Signal |
| 触点材料 | Copper-Tin-Phosphor Bronze |
| 触点电镀 | Tin Over Nickel |
| 性别 | SKT |
| 端接方式 | Crimp |
| 标准包装 | Bulk |
| 线规 | 20-24 AWG |
| 触点表面涂层 | Tin |
| 封装 | Bulk |
| 针脚或插座 | Socket |
| Contact Finish Thickness | 50µin (1.27µm) |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 最大接触电阻 | 12mΩ |
| 最高工作温度 | +105°C |
| 最低工作温度 | -65°C |
| 系列 | AMPMODU |
| 工厂包装数量 | 1000 |
| 额定电流 | 3 A |
| 端接类型 | Crimp |
| 产品种类 | Headers & Wire Housings |
| 工作温度范围 | - 65 C to + 105 C |
| 商品名 | AMPMODU |
| 产品类型 | Contacts |
| 额定电压 | 250 VAC |
| 联系人性别 | Socket (Female) |
| RoHS | RoHS Compliant |
| 适用于 | :0.1 AMPMODU Headers, Housings |
| Wire Size AWG Min | :24AWG |
| Wire Size AWG Max | :20AWG |
| Cable Diameter Max | :0.81mm |
| Cable Diameter Min | :0.5mm |
| External Length / Height | :11.94mm |
| 身高 | :11.94mm |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-65°C |
| Wire Area Size Max | :0.6m² |
| Wire Area Size Min | :0.2m² |
| 线径规格 | :20AWG |
| Wire Size (AWG) | :24AWG to 20AWG |
| Weight (kg) | 0.07 |
| Tariff No. | 85369010 |
| ContactType | ModIV |
| Current,Ratings | 3A |
| InsulationResistance | 5000Megohms |
| Material,Contact | Copper-TinPhosphorBronze |
| Plating,ContactMatingArea | Tin |
| Plating,ContactTerminationArea | BrightTin |
| 标准 | ULListed,CSACertified,RoHSCompliant,ELVCompliant |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | -65°C |
| Thickness,Insulation | 0.069in. |
| Voltage,DielectricStrength | 750V |
| Voltage,Rating | 250 |
| WireRange | 24to20AWG |
| WireTerminationType | Crimp |
| associated | 91516-1 87523-5 |
| usewith | 1-102387-5 1-102387-2 2-87631-7 3-87977-7 1-87631-2 2-87499-3 More> |
