| 规格书 |

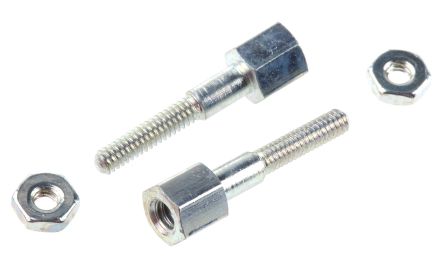

 5747223-3 KIT #4-40 SCREW LOCK FEMALE WITH 2-56 THREADS, AMPLIMITE HD-20 3D PDF AMPLIMITE Subminiature D Connectors - Cable Connectors MD_5747223-3_0616201668_dmtec Female Screwlock Kits and Male Screw Retainer Kits AMPLIMITE Connector HD-20 Shielded Cable Clamp Kits |
| 文档 |
5747223-3 Statement of Compliance RoHS 2 Statement |
| Rohs | Lead free / RoHS Compliant |
| RoHS信息 | 5747223-3 Statement of Compliance |
| 标准包装 | 1 |
| 附件类型 | Jackscrew Socket |
| 特点 | Hardware Included |
| Length - Threaded Portion Below Head | 0.560 (14.22mm) |
| Thread 大小 | 4-40 Socket, 2-56 Screw |
| 类型 | Screw Lock |
| 家庭 | 5747223 |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Tools & Hardware |
| RoHS | RoHS Compliant |
| 产品 | Hardware |
| 性别 | Female |
| 封装 | Bulk |
| 螺丝材质 | Cold Rolled Steel |
| 螺丝电镀 | Zinc |
| 工厂包装数量 | 1 |
| 螺纹尺寸 | 2-56 UNC |
| 评论 | 2-56 is the male thread size. The female thread size is 4-40 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| GovernmentIndustry资格 | No |
| 品牌 | AMP |
| 包装方式 | Individual Kit |
| 螺钉锁形式 | Screwlock With Lockwasher and Hex Nut |
| 适用于 | All Plastic Connectors with Integral Standoffs (HD or HDF) |
| 螺纹长度（毫米（ ） ） | 9.70 [0.382] |
| 产品类型 | Female Screwlock Assembly Kit |
| RoHSELV符合记录 | Always was RoHS compliant |
| 螺丝表面处理 | Clear Chromate |
| 螺杆长度（毫米（ ） ） | 18.99 [0.748] |
| 长度 - 以下的螺纹部分头 | 0.560" (14.22mm) |
| 产品特点 | Hardware Included |
| 附件类型 | Jackscrew Socket |
| 配用/相关产品 | D-Sub Connectors Series AMPLIMITE HD, HDF |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品长度（mm ） | 18.99 mm |
| 产品厚度（毫米） | 4.74 mm |
| 系列 | :Amplimite |
| Thread Size - Metric | :- |
| Thread Size - Imperial | :2-56 |
| Connector Shell Size | :- |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| FinishPlating | ClearChromate |
| Length,Screw | 0.748in. |
| Length,Thread | 0.560in. |
| Material,Screw | Steel |
| PackageType | Kit |
| Size,Thread | 4-40UNC |
| UsedWith | HDorHDFAll-PlasticPlugsandReceptacleswithIntegralStandoffs |
