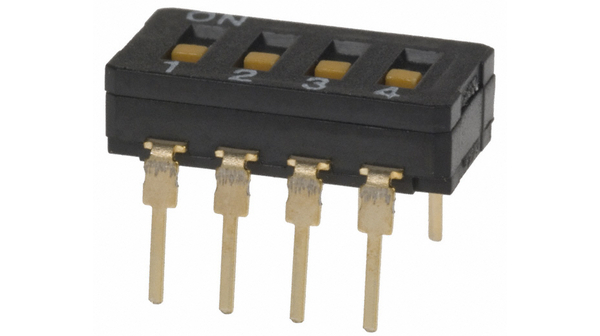

图片仅供参考,产品以实物为准
| 规格书 |
 Master Selection Guide Switches A6D, A6DR |
| 文档 |
How to Read Date Codes |
| Rohs | Lead free / RoHS Compliant |
| 标准包装 | 43 |
| 线路 | SPST |
| 位置数 | 4 |
| Contact Rating @ 电压 | 0.03A @ 30VDC |
| Actuator 型 | Standard |
| 促动器的等级 | Flush |
| 安装类型 | Through Hole |
| 取向 | Top Actuated |
| 耐洗织物 | Yes |
| 执行器风格 | Top Slide |
| 电气寿命 | 2000 |
| 产品长度 | 12.2 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 触点电镀 | Gold |
| 产品厚度 | 7.62 |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 交换机配置 | OFF ON |
| 产品高度 | 4.4 |
| 封装 | Tube |
| 最大直流额定电压 | 30 |
| 端子节距 | 2.54 |
| 极掷配置 | SPST |
| 位置数 | 4 |
| 最低工作温度 | -20 |
| 最大额定电流 | 0.03@30VDC |
| 机械寿命 | 5000 |
| 终端类型 | PC Pins |
| 触点材料 | Beryllium Copper |
| 工业别名 | A6D-4100 |
| 子类别 | Switch DIP |
| 交货期 | 89 Days |
| 水洗 | Yes |
| 执行器类型 | Standard |
| 安装类型 | Through Hole |
| 电路 | SPST |
| 标准包装 | 43 |
| 触点额定电压 | 0.03A @ 30VDC |
| 定位 | Top Actuated |
| 触动器电平 | Flush |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系配置 | 4PST |
| 触点额定电流 | 0.1 A @ 5 V dc |
| 最高工作温度 | +70°C |
| 机械寿命 | 5000Operations |
| 最低工作温度 | -20°C |
| 封装形式 | DIP |
| 工厂包装数量 | 43 |
| 产品种类 | DIP Switches / SIP Switches |
| 端子节距 | 2.54 mm |
| 联系额定值 | 100 mA |
| 工作温度范围 | - 20 C to + 70 C |
| 封装/外壳 | DIP-4 |
| 端接类型 | Solder Pin |
| 单位重量 | 0.015873 oz |
| 系列 | A6D/A6DR |
| 执行器 | Switch |
| 额定电流 | 100 mA |
| 零件号别名 | 363507 9901680 A6D4100NC |
| 开关类型 | DIP |
| RoHS | RoHS Compliant |
| No. of Switch Positions | :4 |
| 节距 | :2.54mm |
| Contact Current DC Max | :100mA |
| Switch Mounting | :Through Hole |
| SVHC | :Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013) |
| 驱动类型 | :Piano Key |
| Approval Bodies | :BT |
| Contact Current @ Contact Voltage DC Max | :100mA |
| 接触电阻 | :100mohm |
| Dielectric Strength VDC | :500V |
| 外部深度 | :6.6mm |
| External Length / Height | :3.4mm |
| 绝缘电阻 | :100Mohm |
| 引线间距 | :2.54mm |
| 长度 | :12.2mm |
| No. of Mechanical Operations | :5000 |
| No. of Positions | :4 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| 引脚配置 | :DIL |
| Row Pitch | :7.62mm |
| Weight (kg) | 0.00045 |
| Tariff No. | 85365007 |
| BodyStyle | Subminiature |
| Current,Rating | 30mA |
| DielectricStrength | 500VAC |
| MountingType | PCB |
| NumberofPoles | 4 |
| 操作 | Top-Actuated |
| 端子 | PCBPins |
| 类型 | DIP |
| Voltage,Rating | 30VDC |
| Overall length | 12.2mm |
| Poles number | 4 |
| DC contacts rating (at resistance load) | 0.03 A / 30 VDC |
| Min insulation resistance | 100MΩ |
| Mechanical durability | 5000cycles |
| Electrical life | 2000cycles |
| Terminal pitch | 2.54mm |
| Operating temperature | -20...70°C |
| Row pitch | 7.62mm |
| Gross weight | 1 g |
| Switching method | ON-OFF |
| Body material | PBT |
| Multiplicity | 1 |
| Switches features | flat actuator |
| Switch type | DIP-SWITCH |
| Contact material | beryllium copper |
| associated | MCEIR-04 4605X-101-102LF 4605X-101-103LF 4605X-101-472LF |
