750108
| 制造商 | |
| 描述 | BOARD EVAL FOR LT3748 LT3748, 30W FLYBACK CONV, DEMO BOARD |
| 分类 |
商业参数
| 其他名称 | 732-3308 | 标准包装数量 | 1 |
合规参数
| SVHC | :No SVHC (20-Jun-2013) | 海关税号 | 85423990 |
电气参数
| 核心类型 | :- | 额定输出功率 | 30W |
| 输出电流 | 2.5A | 元件数量 | :LT3748 |
| 稳压器拓扑 | Flyback | 最小输入电压 | 12V |
机械参数
| 重量 | 0.5 | 电路板厚度 | Fully Populated |
产品信息
| 内容 | Board | 产品特性 | :External N-channel Power MOSFET, Integrated Flyback Transformer |
| 套件类型 | :Power Management | 套件内容 | :Evaluation Board for LT3748 |
| 主要用途 | DC/DC, Step Down | 制造商全称 | :- |
| 输出及类型 | 1, Isolated | 使用的IC/零件 | LT3748 |
| 芯片组制造商 | :Linear Technology | 应用细节 | :- |
文档与媒体
相关型号
LT3748IMS#TRPBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP T/R IC REG CTRLR FLYBK ISO CM 16MSOP
LT3748EMS#PBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP IC REG CTRLR FLYBK ISO CM 16MSOP 100V Isolated Flyback Controller MSOP16 DC/DC, FLYBACK, 100V, 1.9A, ADJ, 16MSOP Linear Technology 直流-直流控制器, 1.9A, 100 V 反激式, 16针 MSOP封装
LT3748HMS#TRPBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP T/R IC REG CTRLR FLYBK ISO CM 16MSOP
LT3748IMS#PBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP IC REG CTRLR FLYBK ISO CM 16MSOP 100V Isolated Flyback Controller MSOP16 FLYBACK, ISOLATED, 100V, 16MSOP Linear Technology 直流-直流控制器, 1.9A, 100 V 反激式, 16针 MSOP封装
LT3748EMS#TRPBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP T/R IC REG CTRLR FLYBK ISO CM 16MSOP
LT3748HMS#PBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP IC REG CTRLR FLYBK ISO CM 16MSOP IC, DC-DC CONV, MSOP16 Linear Technology 直流-直流控制器, 150mA, 100 V 反激式, 12针 MSOP封装

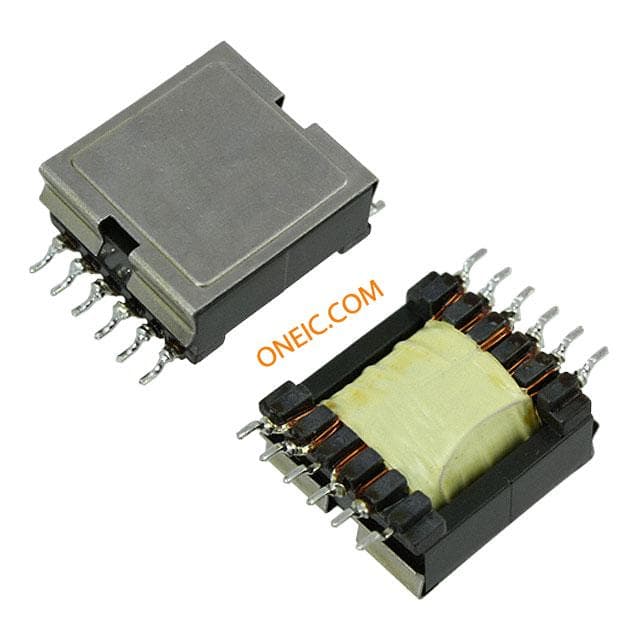

750311607
Wurth Electronics Inc
TRANS FLYBACK LT3748 14UH SMD 2.5:1 Surface Mount, 14μH Transformers Audio & Signal WE-FB Flyback XFMR 14uH +-10% TRANSFORMER FLYBACK LT3748 14UH 10% 2.5:1 表面贴装 回扫变压器, 14μH, 0.04Ω

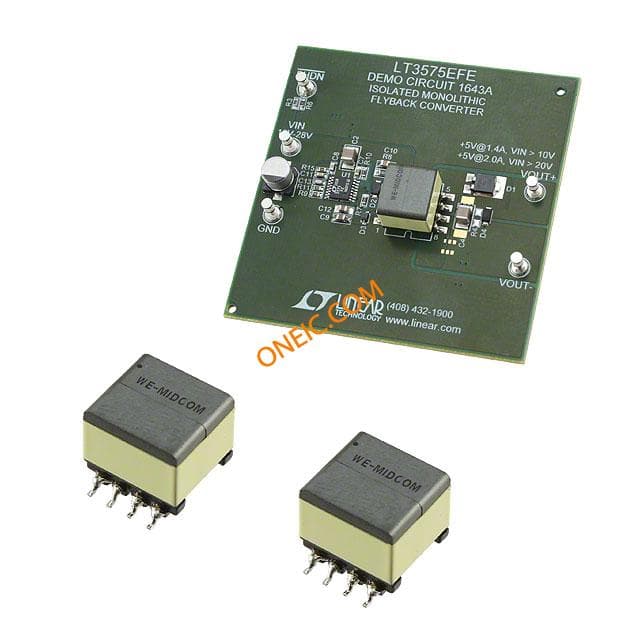

750106
Wurth Electronics Inc
BOARD EVAL FOR LT3575 LT3575, 10W FLYBACK CONV, DEMO BOARD
