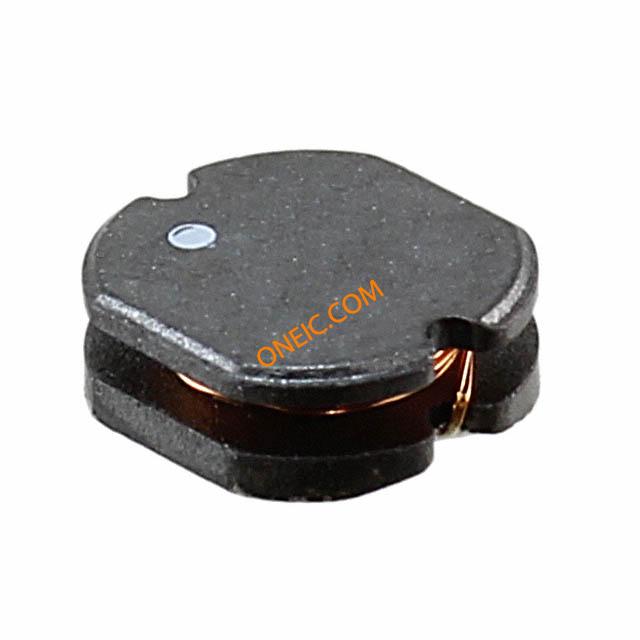

7447745330
| 制造商 | Würth Elektronik GmbH & Co. KG |
| 描述 | INDUCTOR POWER 33UH .90A SMD Inductor SMD WE-PD2 5820 33uH 0,9A Fixed Inductors WE-PD2 Inductor 33uH 0.9A 0.52ohm CHOKE, SMD, 33UH Wurth WE-PD2 系列 铁氧体芯材 绕线贴片电感器, 33 μH ±20%, 900mA Idc |
| 分类 |
商业参数
| 产品 | SMD Power Inductors | 其他名称 | 732-4146-2 |
| 产品类别 | Fixed Inductors | 标准包装数量 | 2,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85045095 | ||
电气参数
| 核心类型 | :Unshielded | 容差 | ±20% |
| 电感量 | 33µH | 量程（°/s） | :WURTH ELEKTRONIK - WE-PD2 Series |
| 测试频率 | 100kHz | 电感量范围 | :± 20% |
| 直流电阻（DCR） | 520 mOhm Max | 最大额定电流 | 900mA |
| 直流电阻（DCR）（最大） | :0.52ohm | 自谐振频率 | 10MHz |
| 饱和电流（Isat） | :900mA | 串联饱和电流 | 900mA |
| 初始电阻（最小） | 520mΩ | 通态电流（It (RMS)）（最大） | :900mA |
机械参数
| 深度 | 5.8mm | 宽度 | 5.8 mm |
| 高度 | 2mm | 长度 | 5.2mm |
| 重量 | 0.0002 | 包装方式 | Tape & Reel (TR) |
| 屏蔽 | Unshielded | 磁芯材料 | Ferrite |
| 安装类型 | Surface Mount | 引脚数 | :2 |
| 封装形式 | Non Standard | 磁芯材质 | Ferrite |
| 尺寸/外形 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 端接样式 | SMD/SMT |
| 总体尺寸 | :5.8mm x 5.2mm x 2mm | 安装高度（最大） | 0.091" (2.30mm) |
产品信息
| 类型 | Wirewound | 系列 | WE-PD2 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号

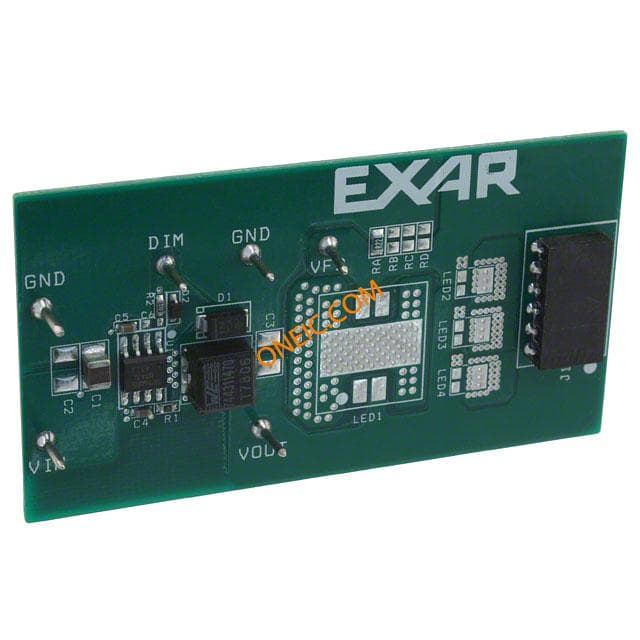

SP7600EB
